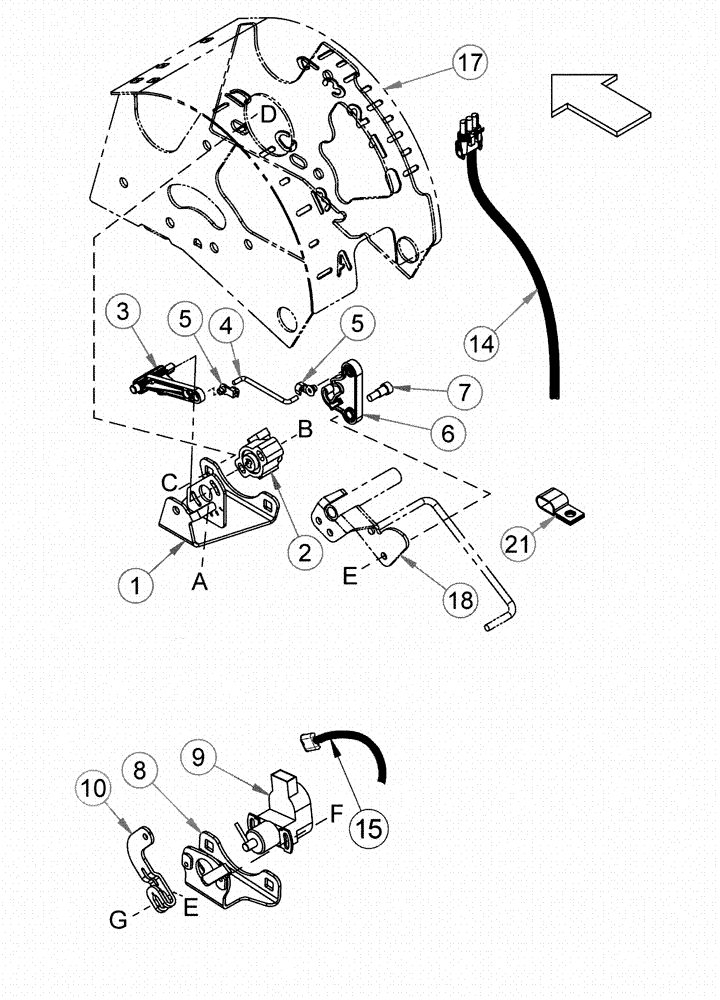

Запчасти Case IH 2152 (09-61) - ADAPTER AUTO HEADER HEIGHT: SENSORS, LINKAGE, AND HARNESSES

W0

ORDER WHOLEGOODS

KIT, Auto Header Height Completion

1шт.

Available Through Whole Goods Only, Order B4823

1шт.

Case

1шт.

W0

ORDER WHOLEGOODS

KIT, Auto Header Height Completion

1шт.

Available Through Whole Goods Only, Order B4824

1шт.

New Holland CR And CX

1шт.

1

87597534

SUPPORT ASSY.

Sensor

1шт.

Case

1шт.

2

86616339

SENSOR,CCW

1шт.

Case

1шт.

3

84122235

ARM

1шт.

Case

1шт.

4

87422075

ROD

Linkage

1шт.

5

87408732

CLIP

Rod End

2шт.

6

84122236

ARM

1шт.

7

87597347

BOLT,1/4" - 20 x 2-1/2"

1шт.

8

87597531

SUPPORT ASSY.

Sensor

1шт.

New Holland CR And CX

1шт.

9

87408775

POTENTIOMETER

1шт.

New Holland CR And CX

1шт.

10

87597340

LINKAGE

1шт.

New Holland CR And CX

1шт.

14

87408780

HARNESS

1шт.

Case AFX

1шт.

14

87532226

WIRE HARNESS

1шт.

Case 2300

1шт.

15

87408805

WIRE HARNESS

1шт.

New Holland CR And CX

1шт.

17

REF

INSTRUCTION

INDICATOR HOUSING

1шт.

See Figure 09-60

1шт.

20

REF

INSTRUCTION

FLOAT INDICATOR

1шт.

See Figure 09-60

1шт.

21

87566342

CLAMP

Harness Holder

2шт.

a

84122234

CARRIAGE BOLT

1шт.

b

231-14409

NUT,#10-24, GB

1шт.

c

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

d

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

e

230-4244

LOCK NUT,1/4"-20, GA

1шт.

f

442-1108

SCREW,Phillips Drive, Oval HD, #10 - 24 x 1/2"

1шт.

g

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

h

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

1шт.

j

44669

SCREW

1шт.
