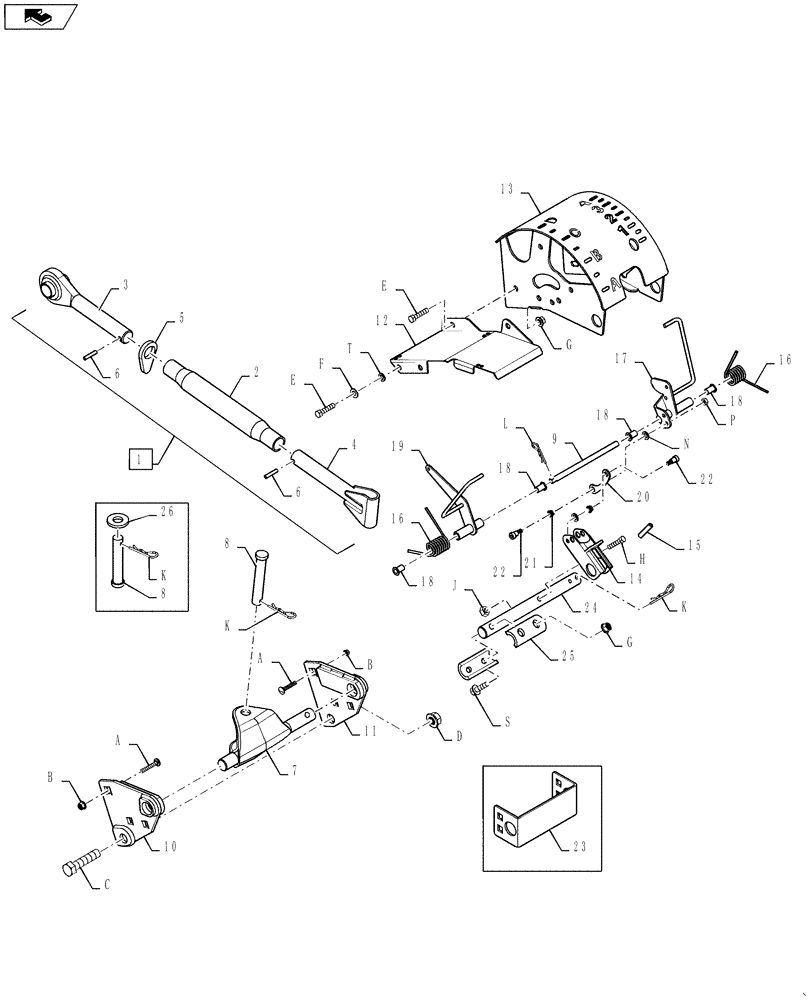

Запчасти Case IH 2152 (09-59) - ADAPTER MECHANICAL CENTER LINK WITH FLOAT INDICATOR - 2142, 2152

NSS

NOT SOLD SEPARAT

KIT, Mechanical Center Link With Float Indicator, Also See Figure 09-71

1шт.

Available Through Whole Goods Only, Order B4822

1шт.

1

87597361

LINK ASSY.

Inc. 2 - 6

1шт.

2

87597535

TUBE

Center Link

1шт.

3

87597457

JOINT ASSY.

Center Link

1шт.

4

87597506

ROD

Center Link

1шт.

5

87597366

COLLAR

1шт.

6

87334

LOCK PIN,6.35mm OD x 31.75mm L, Slotted

Long Link

2шт.

6

1460470

RING

Short Link

1шт.

7

87712720

CLEVIS

With Short Pin, Start Serial: Y7ZN00301

1шт.

7

87597363

CLEVIS

With Pin, Serial Range: -Y7ZN00301

1шт.

7

84347297

PIVOT

, Start Serial: Y7ZN00301

1шт.

8

344688A1

CLEVIS PIN

1шт.

9

87597496

PIN

Indicator Pivot

1шт.

10

87597352

BRACKET

Top Link, Left Hand

1шт.

11

87597353

BRACKET

Top Link, Right Hand

1шт.

12

87628382

COVER ASSY

1шт.

13

87597454

BRACKET

Indicator

1шт.

14

87597343

ARM

1шт.

15

38-12032

LOCK PIN,5/16" x 2", Slotted

1шт.

16

87597515

SPRING

Torsion

1шт.

17

87597455

INDICATOR

Float

1шт.

18

87597357

BUSHING

2шт.

19

87597536

TUBE SPACER

Spacer

1шт.

20

87597492

LINK

1шт.

21

87597358

BUSHING

2шт.

22

87597347

BOLT,1/4" - 20 x 2-1/2"

2шт.

24

87712721

PIN ASSY.

Bolt On Extension, Start Serial: Y7ZN00301

1шт.

25

87712722

COUPLING

Shaft, Start Serial: Y7ZN00301

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER, Flat, Short Link Only

1шт.

a

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

1шт.

b

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

c

86502676

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

1шт.

d

231-42412

NUT,3/4"-10, GB

1шт.

e

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

f

492-11038

LOCK WASHER,3/8"

1шт.

g

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

h

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

1шт.

j

9628503

NUT,3/8"-16, G5

1шт.

k

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

l

80755

COTTER PIN,1/8" OD x 1" L

1шт.

m

495-11028

WASHER,1/4", SAE

1шт.

n

495-11034

WASHER,5/16", SAE

1шт.

p

230-4244

LOCK NUT,1/4"-20, GA

1шт.

r

492-11025

LOCK WASHER,1/4"

1шт.

s

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

t

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

1шт.

NSS

NOT SOLD SEPARAT

KIT, Mechanical Center Link

1шт.

Available Through Whole Goods Only, Order B5081

1шт.
