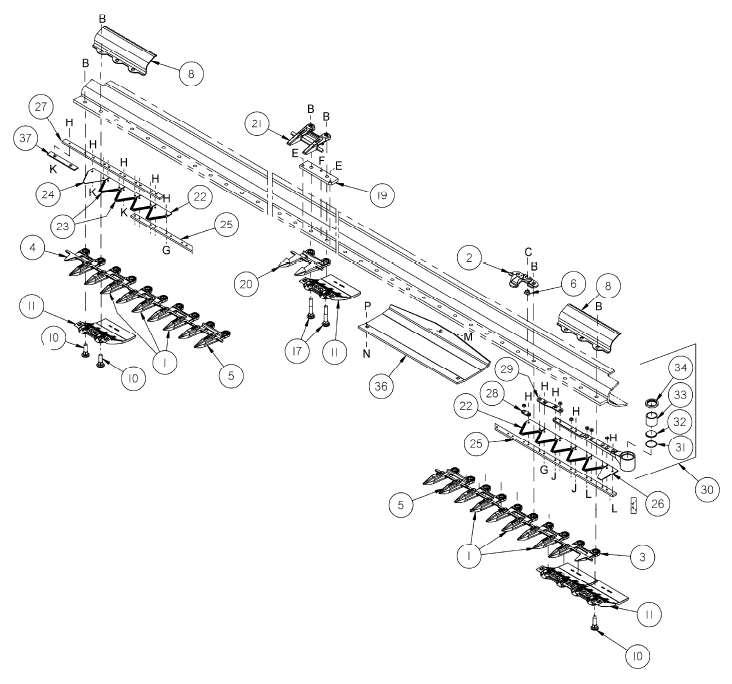

Запчасти Case IH 2152 (09-07) - SICKLE AND GUARDS - DOUBLE SICKLE HEADERS - POINTED GUARDS, IF EQUIPPED

1

87422041

GUARD

Sickle, Drive End

6шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

35шт.

2152 Only,20.0 Foot Header

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

45шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

55шт.

30.0 Foot Header

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

65шт.

35.0 Foot Header

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

39шт.

40.0 Foot Header,2152 Only

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

38шт.

40.0 Foot Header,2162 Only

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

45шт.

2152 And 2162 Only,45.0 Foot Header

1шт.

2

84399893

KIT

Box Of 25 Of 87407812

1шт.

3

87422039

GUARD

Sickle, Outboard, Left Hand

1шт.

4

87422040

GUARD

Sickle, Outboard, Right Hand

1шт.

5

87421451

GUARD

Sickle, Serial Range: -`0

31шт.

2152 Only,20.0 Foot Header

1шт.

5

87421451

GUARD

Sickle, Serial Range: -`0

41шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

5

87421451

GUARD

Sickle, Serial Range: -`0

51шт.

30.0 Foot Header

1шт.

5

87421451

GUARD

Sickle, Serial Range: -`0

61шт.

35.0 Foot Header

1шт.

5

87421451

GUARD

Sickle, Serial Range: -`0

71шт.

40.0 Foot Header,2152 And 2162 Only

1шт.

5

87421451

GUARD

Sickle, Serial Range: -`0

81шт.

2152 Only,45.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

35шт.

2152 Only,20.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

45шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

55шт.

30.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

65шт.

35.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

39шт.

40.0 Foot Header,2152 Only

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

38шт.

40.0 Foot Header,2162 Only

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

45шт.

2152 Only,45.0 Foot Header

1шт.

8

87561242

RETAINER

Pointed Guard Headers

2шт.

10

87533769

BOLT

, Serial Range: -`0

78шт.

2152 Only,20.0 Foot Header

1шт.

10

87533769

BOLT

, Serial Range: -`0

98шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

10

87533769

BOLT

, Serial Range: -`0

118шт.

30.0 Foot Header

1шт.

10

87533769

BOLT

, Serial Range: -`0

138шт.

35.0 Foot Header

1шт.

10

87533769

BOLT

, Serial Range: -`0

158шт.

40.0 Foot Header,2152 Only

1шт.

10

87533769

BOLT

, Serial Range: -`0

150шт.

40.0 Foot Header,2162 Only

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar, Serial Range: -`0

40шт.

2152 Only,20.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar, Serial Range: -`0

50шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar, Serial Range: -`0

60шт.

30.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar, Serial Range: -`0

70шт.

35.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar, Serial Range: -`0

80шт.

40.0 Foot Header,2152 And 2162 Only

1шт.

17

84290803

SPECIAL BOLT

Bolt, Carriage, Special, 7-16 x 2-3/4

2шт.

19

370877A1

BAR

Adjuster

1шт.

20

87561546

GUARD ASSY.

Sickle

1шт.

21

87561096

GUARD

Sickle, Top, Center

1шт.

22

84342590

KNIFE SECTION

Fine, Sickle, 14 Serrations Per Inch, (Includes 10 of 1327448C1), Serial Range: -`0

77шт.

2152 Only,20.0 Foot Header

1шт.

22

84342603

KIT

Fine, Sickle, 14 Serrations Per Inch, (Includes 25 of 87422350)

1шт.

22

84342589

KIT

Fine, Sickle, 14 Serrations Per Inch, (Includes 100 of 1327448C1)

1шт.

22

84342590

KNIFE SECTION

Fine, Sickle, 14 Serrations Per Inch, (Includes 10 of 1327448C1), Serial Range: -`0

97шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

22

84342590

KNIFE SECTION

Fine, Sickle, 14 Serrations Per Inch, (Includes 10 of 1327448C1), Serial Range: -`0

117шт.

30.0 Foot Header

1шт.

22

84342590

KNIFE SECTION

Fine, Sickle, 14 Serrations Per Inch, (Includes 10 of 1327448C1), Serial Range: -`0

137шт.

35.0 Foot Header

1шт.

22

84342590

KNIFE SECTION

Fine, Sickle, 14 Serrations Per Inch, (Includes 10 of 1327448C1), Serial Range: -`0

157шт.

40.0 Foot Header,2152 And 2162 Only

1шт.

22

84342601

KIT

Coarse, Sickle, 9 Serrations Per Inch, (Includes 10 of 87422066), Serial Range: -`0

77шт.

2152 Only,20.0 Foot Header

1шт.

22

84331101

BLADE

Coarse, Sickle, 9 Serrations Per Inch, (Includes 25 of 87422066)

1шт.

22

84342600

KIT

Coarse, Sickle, 9 Serrations Per Inch, (Includes 100 of 87458207)

1шт.

22

84342601

KIT

Coarse, Sickle, 9 Serrations Per Inch, (Includes 10 of 87422066), Serial Range: -`0

97шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

22

84342601

KIT

Coarse, Sickle, 9 Serrations Per Inch, (Includes 10 of 87422066), Serial Range: -`0

117шт.

30.0 Foot Header

1шт.

22

84342601

KIT

Coarse, Sickle, 9 Serrations Per Inch, (Includes 10 of 87422066), Serial Range: -`0

137шт.

35.0 Foot Header

1шт.

22

84342601

KIT

Coarse, Sickle, 9 Serrations Per Inch, (Includes 10 of 87422066), Serial Range: -`0

157шт.

40.0 Foot Header,2152 And 2162 Only

1шт.

23

84342606

PACKAGE

Fine, Sickle, Bottom Countersink, 14 Serrations Per Inch, (Includes 10 of 87458233)

2шт.

23

84342605

KNIFE SECTION

Fine, Sickle, Bottom Countersink, 14 Serrations Per Inch, (Includes 10 of 87458233)

1шт.

23

84342596

KIT

Coarse, Sickle, Bottom Countersink, 9 Serrations Per Inch, (Includes 10 of 87458231)

2шт.

23

84331099

BLADE

Coarse, Sickle, Bottom Countersink, 9 Serrations Per Inch, (INCLUDES 25 OF 87458231)

1шт.

23

84342595

KNIFE SECTION

Coarse, Sickle, Bottom Countersink, 9 Serrations Per Inch, (Includes 100 of 87458231)

1шт.

24

84342594

KIT

Fine, Sickle, Top Countersink, 14 Serrations Per Inch, (iNCLUDES 10 OF 87725638)

1шт.

24

84342593

KIT

Fine, Sickle, Top Countersink, 14 Serrations Per Inch, (Includes 100 of 87725638)

1шт.

24

84342592

KIT

Coarse, Sickle, Top Countersink, 9 Serrations Per Inch, (Includes 10 of 87725639)

1шт.

24

84331100

BLADE

Coarse, Sickle, Top Countersink, 9 Serrations Per Inch, (Includes 25 of 87725639)

1шт.

24

84342591

KIT

Coarse, Sickle, Top Countersink, 9 Serrations Per Inch, (Includes 100 of 87725639)

1шт.

25

NSS

NOT SOLD SEPARAT

SICKLE BACK

1шт.

26

84342588

KIT

Half Section, (Includes 10 of 1327411C1)

1шт.

27

84178104

GUIDE

Knife Bar

1шт.

28

84342587

KIT

Bar, Reinforcing, (Includes 25 of 87458207)

1шт.

29

87456665

BAR

Reinforcing at Sickle Head, Serial Range: -`0

2шт.

20.0 And 25.0 Foot Header

1шт.

30

87561117

HEAD ASSY.

Sickle, Inc. 31 - 34, 38, Serial Range: -`0

2шт.

20.0 And 25.0 Foot Header

1шт.

30

87561157

KNIFE HEAD

Left Hand, 5 Degree Angle, Inc. 31 - 34, 38, Serial Range: -`0

1шт.

30.0, 35.0, 40.0 and 45.0 Foot Headers

1шт.

30

87561158

KNIFE HEAD

Right Hand, 5 Degree Angle, Inc. 31 - 34, 38, Serial Range: -`0

1шт.

30.0, 35.0, 40.0 and 45.0 Foot Headers

1шт.

31

430320A1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

Sickle Head

2шт.

32

395820A1

PLUG

Sickle Head

2шт.

33

A27827

NEEDLE BEARING,Needle, 31.75mm ID x 38.1mm OD x 31.75mm W

Sickle Head

2шт.

34

345892A1

SEAL KIT

Sickle Head, Serial Range: -`0

2шт.

Install With Lip Facing Down

1шт.

36

87597512

PAN

Skid, Serial Range: -`0

4шт.

40.0 Foot Header,2162 Only

1шт.

37

84178105

BAR

Wear, Left Hand Sickle

1шт.

38

47810664

DRIVE

Bar Sickle

1шт.

Applies to 87561117 Knife Assy

1шт.

38

47816538

DRIVE

Bar Sickle

1шт.

Applies to 87561157 Knife Assy

1шт.

38

47816541

DRIVE

Bar Sickle

1шт.

Applies to 87561158 Knife Assy

1шт.

b

280717

NUT,7/16"-14, G5

1шт.

c

88703

BOLT,Hex, 3/8" x 5/8", Gr 5, Full Thd

1шт.

e

113-2299

BOLT,Hex, 3/8" - 16 x 3/4", SST

1шт.

f

113-2295

BOLT,Hex, 3/8" - 16 x 1", SST

1шт.

g

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

1шт.

h

1954816C1

LOCK NUT

1шт.

j

851735

BOLT

1шт.

k

87585925

HEX SOC SCREW,FLAT, #12 - 24 x , Gr 8

1шт.

l

87585924

SCREW,Truss Slotted, 27.05mm, Gr 8

1шт.

m

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

n

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

p

473371R1

FLANGE NUT

1шт.

NSS

NOT SOLD SEPARAT

KIT Cutterbar Poly, Serial Range: -`0

1шт.

Available Through Whole Goods Only, Order B4865,20.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT Cutterbar Poly, Serial Range: -`0

1шт.

Available Through Whole Goods Only, Order B4838,25.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT Cutterbar Poly, Serial Range: -`0

1шт.

30.0 Foot Header,Available Through Whole Goods Only, Order B4839

1шт.

NSS

NOT SOLD SEPARAT

KIT Cutterbar Poly, Serial Range: -`0

1шт.

Available Through Whole Goods Only, Order B4840,35.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT Cutterbar Poly, Serial Range: -`0

1шт.

40.0 Foot Header,Available Through Whole Goods Only, Order B4841

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly, Serial Range: -`0

1шт.

45.0 Foot Header,Available Through Whole Goods Only, Order B5114

1шт.
