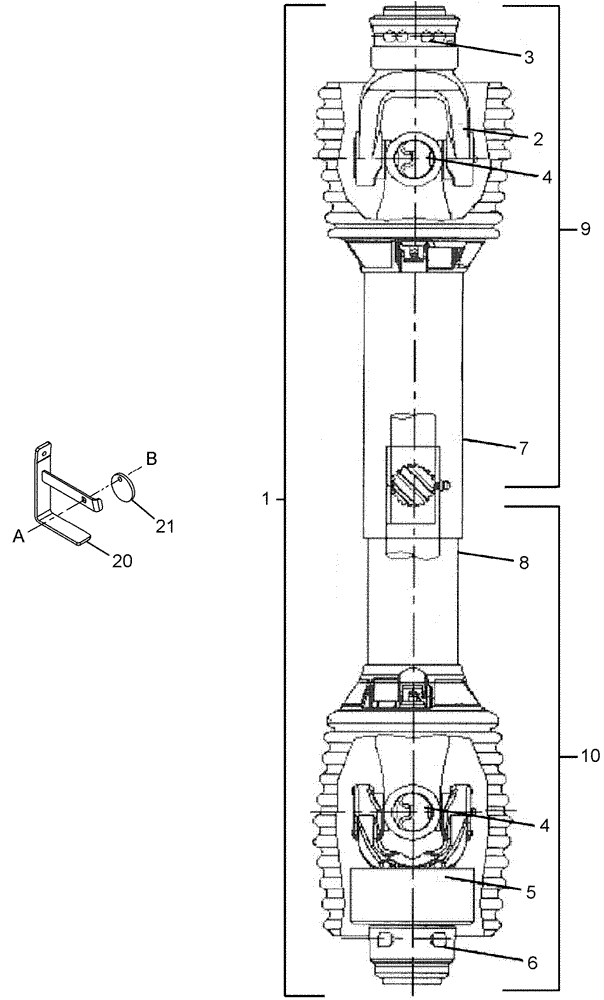

Запчасти Case IH 2152 (09-56) - ADAPTER INPUT DRIVELINE

1

87597427

DRIVE

6T, Complete, Collapsed Length Of 27-3/4", Maximum Operating Length Of 38"

1шт.

CASE IH MIDRANGE/FLAGSHIP SERIES, ALL NEW HOLLAND CR/CX.

1шт.

1

87597426

DRIVE

Hex Bore, Complete, Collapsed Length Of 35-3/4", Maximum Operating Length Of 39-1/4"

1шт.

HEX BORE DRIVELINE – CASE IH 88 SERIES.

1шт.

2

87597547

YOKE

Lock, 6T

1шт.

2

87597548

SPRING

Lock, Hex Bore

1шт.

3

87597504

REPAIR KIT

Spring Lock Yoke, 6T And 21T

1шт.

3

87597505

REPAIR KIT

Spring Lock Yoke, Hex Bore

1шт.

4

87712718

JOURNAL

2шт.

5

87597365

CLUTCH

Free Motion With Yoke

1шт.

6

87597503

REPAIR KIT

Auto Lock Yoke

1шт.

7

87597432

GUARD ASSY.

Outer, 6T Driveline, Serial Range: -Y9ZN00701

1шт.

7

87753067

GUARD

Outer, 6T Driveline, Start Serial: Y9ZN00701

1шт.

7

87597434

GUARD ASSY.

Outer, Hex Bore Driveline

1шт.

8

87597433

GUARD ASSY.

Inner, 6T Driveline, Serial Range: -Y9ZN00701

1шт.

8

87753068

GUARD

Inner, 6T Driveline, Start Serial: Y9ZN00701

1шт.

8

87597435

GUARD ASSY.

Inner, Hex Bore Driveline

1шт.

9

87597436

SHAFT

Combine End, With Outer Guard, 6T, Serial Range: -Y9ZN00701

1шт.

9

87753069

PTO

Combine End, With Outer Guard, 6T, Start Serial: Y9ZN00701

1шт.

9

87597437

SHAFT

Combine End, With Outer Guard, Hex Bore

1шт.

10

87597438

SHAFT

Adapter End, With Inner Guard, 6T, Serial Range: -Y9ZN00701

1шт.

10

87753070

GUARD

Adapter End, With Inner Guard, 6T, Start Serial: Y9ZN00701

1шт.

10

87597439

SHAFT

Adapter End, With Inner Guard, Hex Bore

1шт.

20

87597351

BRACKET

Driveline Hanger

1шт.

21

87597425

PLATE

Driveline Hanger

1шт.

a

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

b

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.
