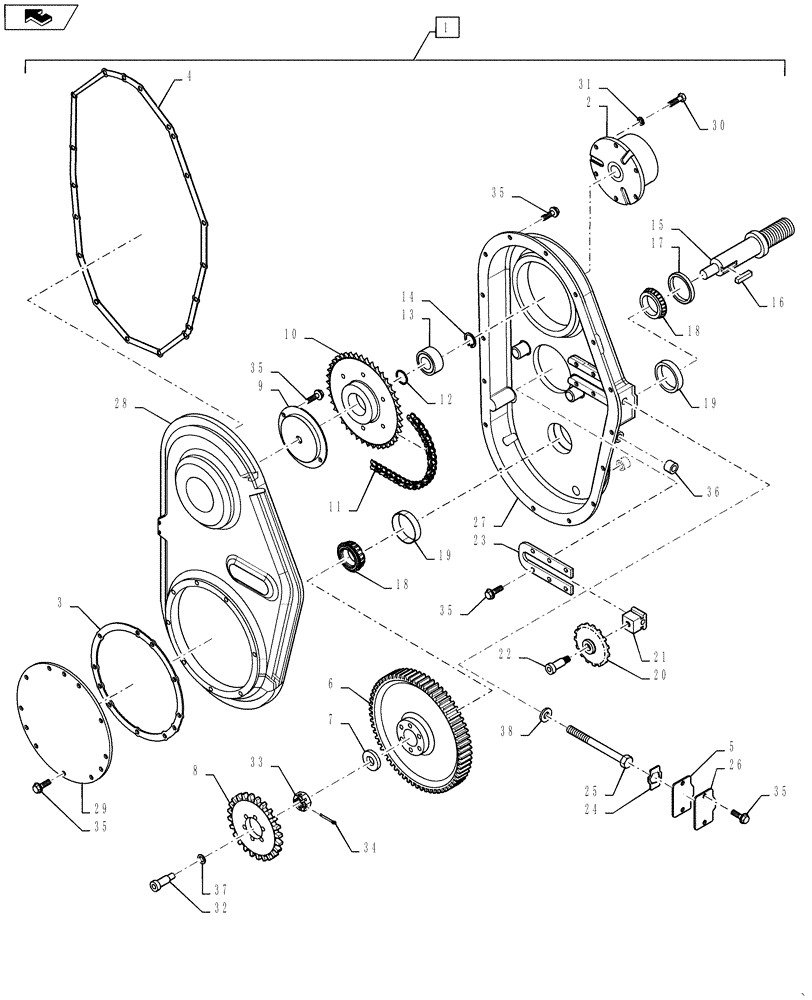

Запчасти Case IH 2152 (09-55A[02]) - ADAPTER DRIVES - MODEL YEAR 2012

1

47373123

DRIVE

Gearbox, Complete, Incl 2 - 36

1шт.

1

47373123R

REMAN-GEARBOX

Reman Gearbox, Complete, Incl 2 - 36

1шт.

1

47373123C

CORE-GEARBOX

Core Return Number

1шт.

2

84486400

CLUTCH

1шт.

3

84486379

GASKET

Sprocket Cover

1шт.

4

84486380

GASKET,0.8mm Thk

Housing

1шт.

5

84486381

GASKET

Adjustment Cover

1шт.

6

84486725

GEAR

97T

1шт.

7

84486724

WASHER

1шт.

8

84486388

SPROCKET

50A-24T

1шт.

8

84486385

SERVICE KIT

Sprocket, 20T

1шт.

8

84486384

SERVICE KIT

Sprocket, 22T

1шт.

8

84486383

SERVICE KIT

Sprocket, 26T

1шт.

9

84486394

SUPPORT

Pinion

1шт.

10

84486392

SPROCKET

50B38

1шт.

11

87566338

CHAIN,Roller, 74 Links

RC 50 74 Pitches

1шт.

12

84486393

SHIM KIT

1шт.

13

84486722

BALL BEARING

Double

1шт.

14

A27576

SNAP RING,#98, Ext

1шт.

15

84486396

SHAFT

1шт.

16

47373119

SQUARE KEY

1шт.

17

84486397

SEAL,50mm ID x 67.1mm OD x 7.9mm Thk

1шт.

18

194233A1

ROLLER BEARING,34.93mm ID x 18.2mm W

2шт.

19

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2шт.

20

84486723

SPROCKET

Idler 50C15

1шт.

21

84486398

BLOCK

Idler

1шт.

22

84486727

BOLT

Socket Head, 1/2 x 1 Shoulder, 3/8 NC

1шт.

23

84486391

PLATE

1шт.

24

84486389

RETAINER

1шт.

25

113-2479

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1шт.

26

84486390

COVER

Adjusting

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING, Gearbox

1шт.

28

NSS

NOT SOLD SEPARAT

COVER, Gearbox

1шт.

29

84486395

COVER

Sprocket

1шт.

30

84486726

BOLT

Socket Head, 5/16-24 UNF x .75 GR 5 ZP

1шт.

31

492-11031

LOCK WASHER,5/16"

1шт.

32

82895721

HEX SOC SCREW,3/8" - 16 x 1"

1шт.

33

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

34

86523957

COTTER PIN,5/32" x 2"

1шт.

35

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1шт.

36

47373126

MAGNETIC PLUG

1шт.

37

NS

NOT SERVICED

WASHER, Lock Spring, 7/16 ID

1шт.

38

495-11053

WASHER,1/2", SAE

1шт.
