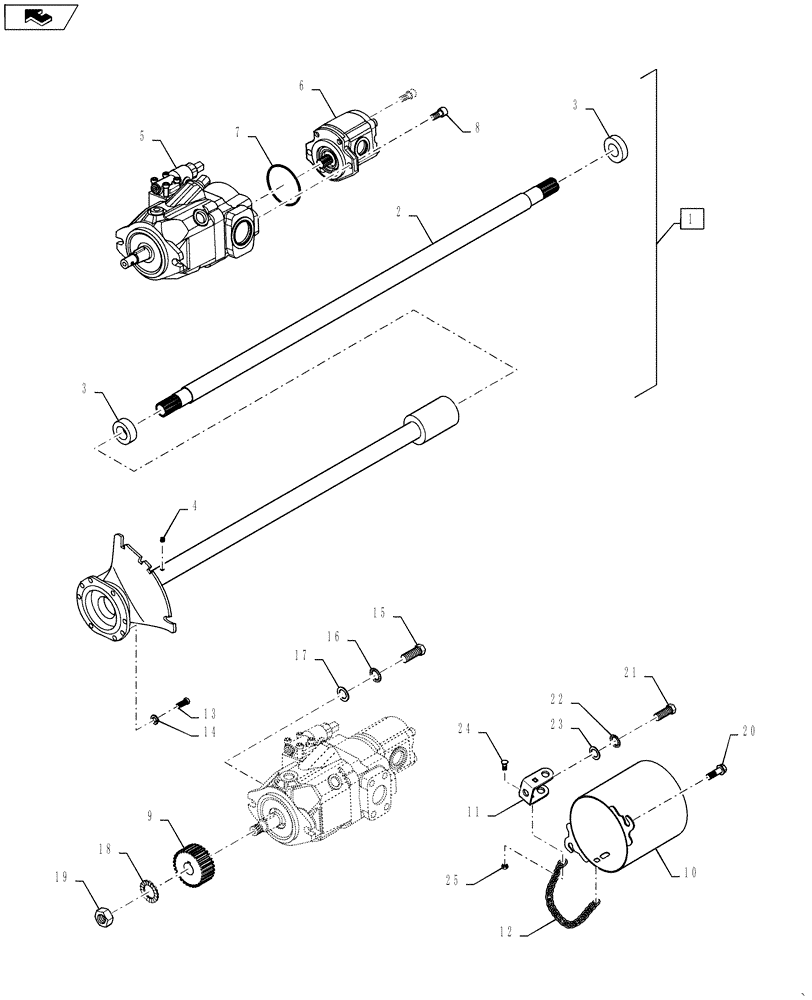

Запчасти Case IH 2152 (09-55A[01]) - ADAPTER DRIVES - MODEL YEAR 2012

1

47373122

TUBE

And Shaft Assy, Incl 2 - 4

1шт.

2

84486399

SHAFT

Output

1шт.

3

87566353

BUSHING,31.75mm ID x 62mm OD x 16mm W

Collar Not Used At Clutch End

2шт.

4

1336645C1

VALVE

Relief

1шт.

5

84238696

PUMP

Piston, Complete With Fittings

1шт.

5

87597511

SEAL KIT

1шт.

6

87597502

PUMP

Gear, 16 cc

1шт.

6

84373675

SEAL KIT

1шт.

7

84353556

O-RING

Gear Pump To Piston Pump

1шт.

8

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

2шт.

9

87561092

GEAR

Pinion, 28T

1шт.

10

87561095

GUARD

1шт.

11

84486386

ANCHOR

Anchor, Strut

1шт.

12

87566340

CHAIN (AG)

1шт.

13

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

14

NS

NOT SERVICED

WASHER, Lock Spring, 7/16 I.D.

1шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

16

492-11050

LOCK WASHER,1/2"

1шт.

17

495-11053

WASHER,1/2", SAE

1шт.

18

131046

ELBOW

1шт.

19

1689

NUT,3/4"-16, G5

1шт.

20

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

1шт.

21

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

22

492-11062

BEARING WASHER,5/8"

1шт.

23

NLS

NO LONGER SERVICED

1шт.

24

411-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 2

1шт.

25

473371R1

FLANGE NUT

1шт.
