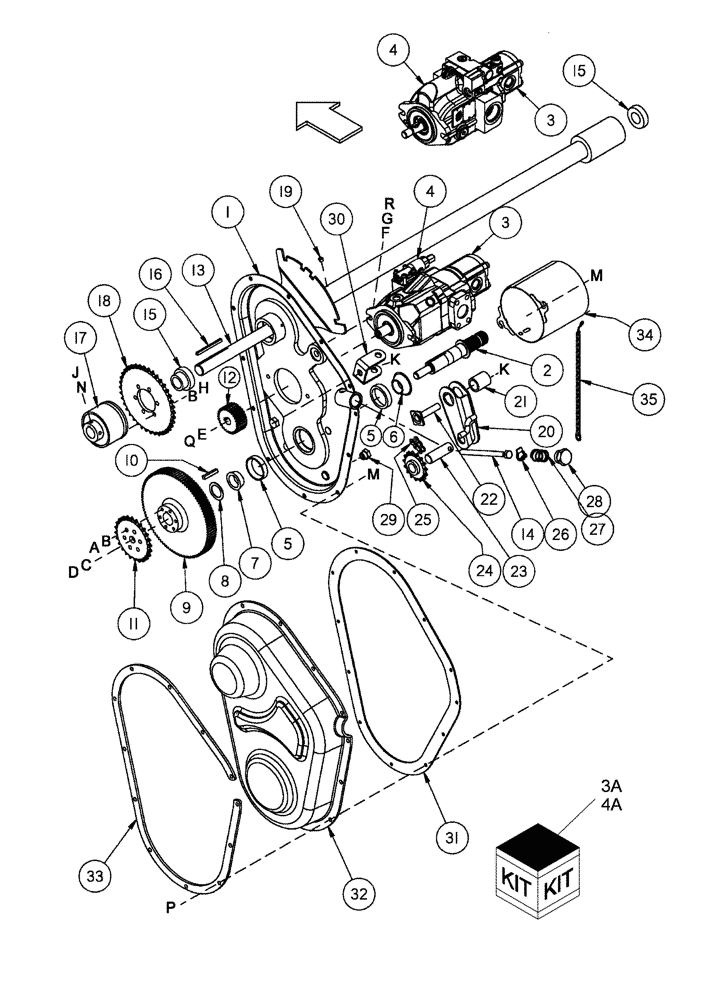

Запчасти Case IH 2152 (09-55) - ADAPTER DRIVES - MODEL YEAR 2011 AND PRIOR

1

87561093

HOUSING

Gearbox, Plate W/Tube

1шт.

2

87566347

SHAFT ASSY.

See Figure Note

1шт.

3

87597502

PUMP

Gear, 16 cc

1шт.

3

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

Gear Pump To Piston Pump (Not Shown)

2шт.

3a

87597510

SEAL KIT

Gear Pump; Incl shaft seal.

1шт.

4

87597501

PUMP

Piston

1шт.

4

84353556

O-RING

Gear Pump To Piston Pump (Not Shown)

1шт.

4a

87597511

SEAL KIT

Piston Pump

1шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

See Figure Note

2шт.

6

87566351

ROLLER BEARING,34.92mm ID x 18.29mm W

Cone, W/Integral Seal, See Figure Note

1шт.

7

194233A1

ROLLER BEARING,34.93mm ID x 18.2mm W

1шт.

8

495-81212

WASHER,35.71mm ID x 50.8mm OD x 1.07mm Thk

1шт.

9

87561094

GEAR

97 Teeth

1шт.

10

Q72

KEY,5/16" Sq x 1 7/8", Par

Gear

1шт.

11

87566793

GEAR

24 Teeth

1шт.

11

87597517

SPROCKET

26 Teeth

1шт.

11

87597518

SPROCKET

20 Teeth

1шт.

11

87597519

SPROCKET

22 Teeth

1шт.

12

87561092

GEAR

Pinion

1шт.

13

87561505

SHAFT

1шт.

14

87566362

BOLT

1шт.

15

87566353

BUSHING,31.75mm ID x 62mm OD x 16mm W

Includes Seals

2шт.

16

3025N

KEY,3/4" Sq x 3 1/4", Par

1шт.

17

87560873

CLUTCH

1шт.

18

87597520

SPROCKET

38 Teeth, Year 2005, Serial Range: -MACDON168560

1шт.

18

87561559

SPROCKET

38 Teeth, Year 2006 And After, Start Serial: MACDON168560

1шт.

19

A50096

VALVE

Relief

1шт.

20

87560839

BRACKET

Chain Tensioner

1шт.

21

87561636

TUBE,38.1 mm OD x 44 mm L

Pivot, Chain Tensioner

1шт.

22

87561587

STUD

Chain Tensioner

1шт.

23

87566348

SHAFT ASSY.,25.4mm OD x 80mm L

1шт.

24

87566790

GEAR

Idler, 15 Teeth

1шт.

25

87566338

CHAIN,Roller, 74 Links

Roller, 74 Pitch

1шт.

26

87561173

LOCK

Chain Tensioner

1шт.

27

87566786

SPRING

Chain Tensioner

1шт.

28

87363628

PLUG,1 - 5/16" - 12

1шт.

29

338319A1

PLUG

1шт.

30

84529702

ANCHOR

Strut

1шт.

31

87561090

GASKET,3.2mm Thk

Gearbox

1шт.

32

87560896

COVER

Gearbox

1шт.

33

87560886

CLAMP

Plate

1шт.

a

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

34

87561095

GUARD

1шт.

b

492-11038

LOCK WASHER,3/8"

1шт.

35

87566340

CHAIN (AG)

Guard Retainer

1шт.

c

87567551

NUT

1шт.

d

88095

LOCK NUT,3/4"-16, GA

1шт.

e

9847025

LOCK WASHER,21.2mm ID x 33.6mm OD x 6mm Thk

1шт.

f

495-11053

WASHER,1/2", SAE

1шт.

g

492-11050

LOCK WASHER,1/2"

1шт.

h

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

j

87616

SET SCREW,3/8" - 16 x 3/4"

1шт.

k

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

m

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

n

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

p

86512174

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/4"

1шт.

q

1689

NUT,3/4"-16, G5

1шт.

r

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.
