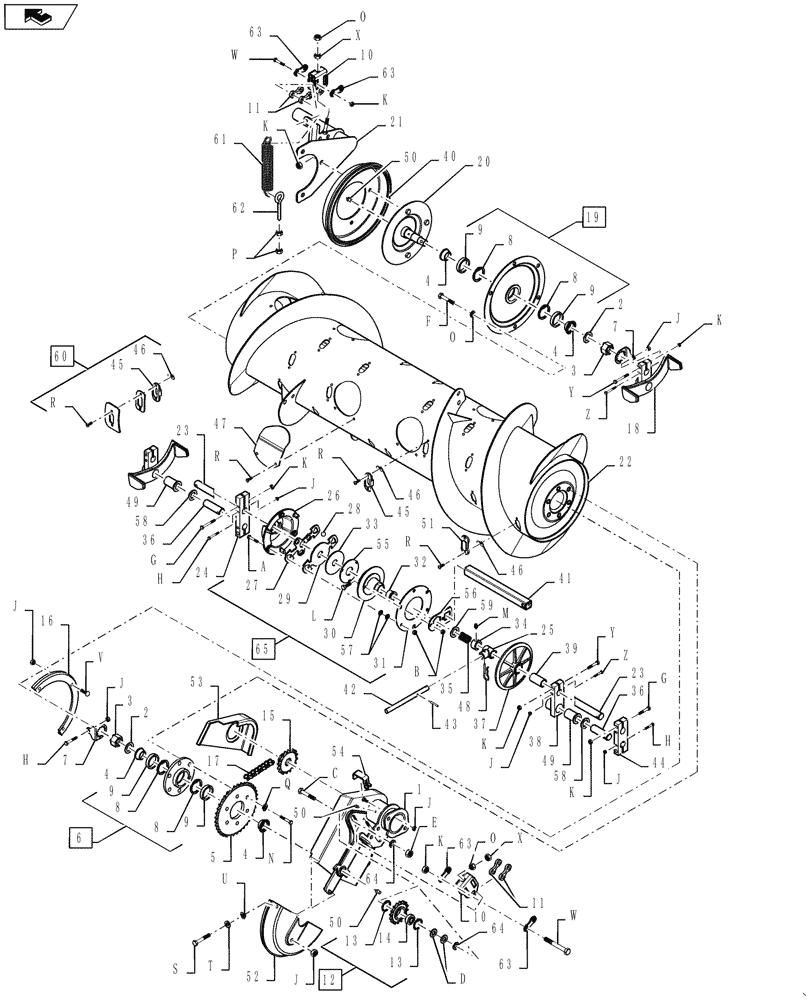

Запчасти Case IH 2152 (09-54) - ADAPTER AUGER AND COMPONENTS

84250448

AUGER

And Drive Assembly Complete

1шт.

1

87560895

COVER ASSY

Drive, Left Hand Auger, Serial Range: -YAZN00501

1шт.

Incl 10, BSN

1шт.

1

84238694

COVER

Drive, Left Hand Auger, Start Serial: YAZN00501

1шт.

Does Not Incl 10, ASN

1шт.

2

248988A1

THRUST WASHER

2шт.

3

425-1118

NUT,1 1/8"-12, G5

2шт.

4

602958R91

BEARING ASSY,31.75 mm ID x 25.4 mm

4шт.

5

87566795

GEAR

RC 60, 37 Teeth

1шт.

See Fig 09-55A (02) For Idler

1шт.

6

87561147

HUB

Inc. 8, 9

1шт.

7

87561247

RETAINER

Nut

1шт.

8

34039

SNAP RING,2.50", Int, #250

4шт.

9

651817R1

BEARING CUP

4шт.

9

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

10

87560838

BRACKET

Adjuster, Serial Range: -Y8ZN00501

2шт.

10

84238692

BRACKET

Adjuster, Start Serial: Y8ZN00501

2шт.

11

87561553

SPACER

Adjuster Bracket

4шт.

12

87566788

GEAR,15T

Inc. 13, 14

1шт.

13

300644

SNAP RING,M40, Internal

2шт.

14

87566350

BALL BEARING,16.1mm ID x 40mm OD x 12.1mm W

1шт.

15

87566797

GEAR

RC 60, 16 Teeth

1шт.

16

87561476

SEAL

Auger

1шт.

17

D56647

CHAIN (CE)

Roller, RC 60, 56 Links, Inc. Connector

1шт.

18

87561563

STOP

Drum

1шт.

19

87561148

HUB

Inc. 8, 9

1шт.

20

87561557

SPINDLE

Disc

1шт.

21

87561616

SUPPORT

Right Hand Auger, Serial Range: -Y9ZN06643

1шт.

21

84238691

SUPPORT

Right Hand Auger, Start Serial: Y9ZN06643

1шт.

22

87560981

DRUM

Retracting Tine, 14 Inch

1шт.

23

87561504

SHAFT

Auger

1шт.

24

87560524

BLOCK

Auger

1шт.

25

410719A1

BUSHING

Auger Fingers

26шт.

26

87628381

HOUSING

Clutch

1шт.

For Units With SN Y7ZN00301 And Below, Also Order Ref. 55.

1шт.

27

87561227

PLATE

Ball Cage

1шт.

28

211-1024

BALL,3/4" Dia

3шт.

29

87560466

ARM

Clutch Activator

1шт.

30

87498998

BRAKE ASSY.

1шт.

31

87560970

DISC

Brake

1шт.

32

87725609

BUSHING

1шт.

33

87566803

WASHER,26.2mm ID x 100mm OD x 3mm Thk

1шт.

34

87566746

COLLAR

Lock

1шт.

35

87566786

SPRING

1шт.

36

87561215

PIN

2шт.

37

87561652

FRONT WHEEL COUPLE

1шт.

38

87561217

PIN

Block, Right Hand Auger

1шт.

39

87561554

SPACER

Tube

1шт.

40

87561490

SEAL

Right Hand Auger End Cap

1шт.

41

87561637

TUBE,340 mm L

Reverser

1шт.

42

87561023

FINGER ASSY.,4.76mm OD x 38.1mm L

Inc. 43

15шт.

47548630 (5-Pack)

1шт.

43

87757

LOCK PIN,3/16" x 1 1/2", Slotted

15шт.

44

87560523

BLOCK

1шт.

45

87666079

GUIDE

15шт.

46

410726A1

NUT

Tee

30шт.

47

410724A1

COVER

Drum Access

5шт.

48

410725A1

PIN, SPLIT (COTTER)

PIN, COTTER

15шт.

49

87566331

BUSHING,25.48mm ID x 35mm OD x 57.2mm L

2шт.

50

87414

LUBE NIPPLE,1/4" - 28

3шт.

51

87685315

CAP

Auger Finger Hole

12шт.

52

87560890

COVER

Lower

1шт.

53

87560889

COVER

Upper

1шт.

54

87566371

CLIP

Upper Cover

1шт.

55

87561228

PLATE

Friction, Clutch, Serial Range: -Y7ZN00301

1шт.

For Units With SN Y7ZN00301 And Below, Also Order Ref. 55.

1шт.

55

87725610

CLUTCH PLATE

Friction, Start Serial: Y7ZN00301

1шт.

56

87560514

BAR

Retainer, Clutch Assembly

1шт.

57

95-81077

WASHER,0.39" ID x 0.62" OD x 0.07" Thk

6шт.

58

95-91036

WASHER

2шт.

59

87666078

WASHER,27mm ID x 50.8mm OD x 2.8mm Thk

1шт.

60

87428521

REPAIR KIT

Auger Finger Hole Patch

1шт.

61

47481096

SPRING

Extension, Hold-Down

2шт.

62

84232877

EYEBOLT

2шт.

63

84238693

SPACER

Adjuster Bracket, External, Start Serial: Y8ZN00501

4шт.

64

84331102

WASHER

Nordlock, 5/8

2шт.

65

84529730

CLUTCH

ASSEMBLY, Complete

1шт.

a

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

b

231-4146

NUT,3/8"-16, GB

1шт.

c

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

d

495-11066

WASHER,5/8", SAE

1шт.

e

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

f

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

g

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

h

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

j

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

k

87323841

FLANGE NUT

1шт.

l

280722

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

1шт.

m

87616

SET SCREW,3/8" - 16 x 3/4"

1шт.

n

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

o

425-108

NUT,1/2" - 13, Gr 5

1шт.

p

231-4148

NUT,1/2"-13, GB

1шт.

q

492-11050

LOCK WASHER,1/2"

1шт.

r

161-115

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 3/4"

1шт.

s

88703

BOLT,Hex, 3/8" x 5/8", Gr 5, Full Thd

1шт.

t

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

u

492-11038

LOCK WASHER,3/8"

1шт.

v

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

w

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

, Serial Range: -Y8ZN00501

1шт.

w

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

, Start Serial: Y8ZN00501

1шт.

x

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

y

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

z

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.
