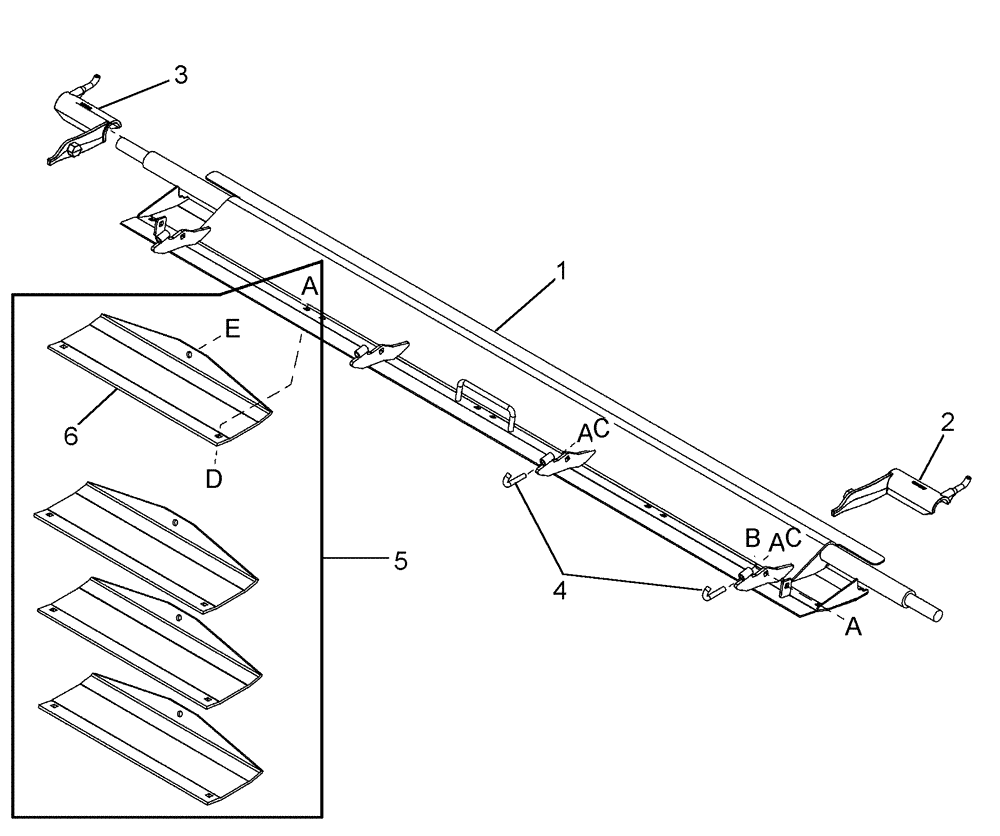

Запчасти Case IH 2152 (09-53) - ADAPTER TRANSITION PAN AND POLY KIT

1

87597495

PAN

Transition

1шт.

2142/2152 Only

1шт.

2

87597459

LATCH

Left Hand

1шт.

3

87597460

LATCH

Right Hand

1шт.

5

NSS

NOT SOLD SEPARAT

KIT, Poly, Transition Pan

1шт.

Available Through Whole Goods Only, Order B4828

1шт.

4

87597348

BOLT

4шт.

2142/2152 Only

1шт.

6

87597512

PAN

Poly Skid, Transition

4шт.

a

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

b

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

2142/2152 Only

1шт.

c

9628503

NUT,3/8"-16, G5

1шт.

2142/2152 Only

1шт.

d

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

e

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.
