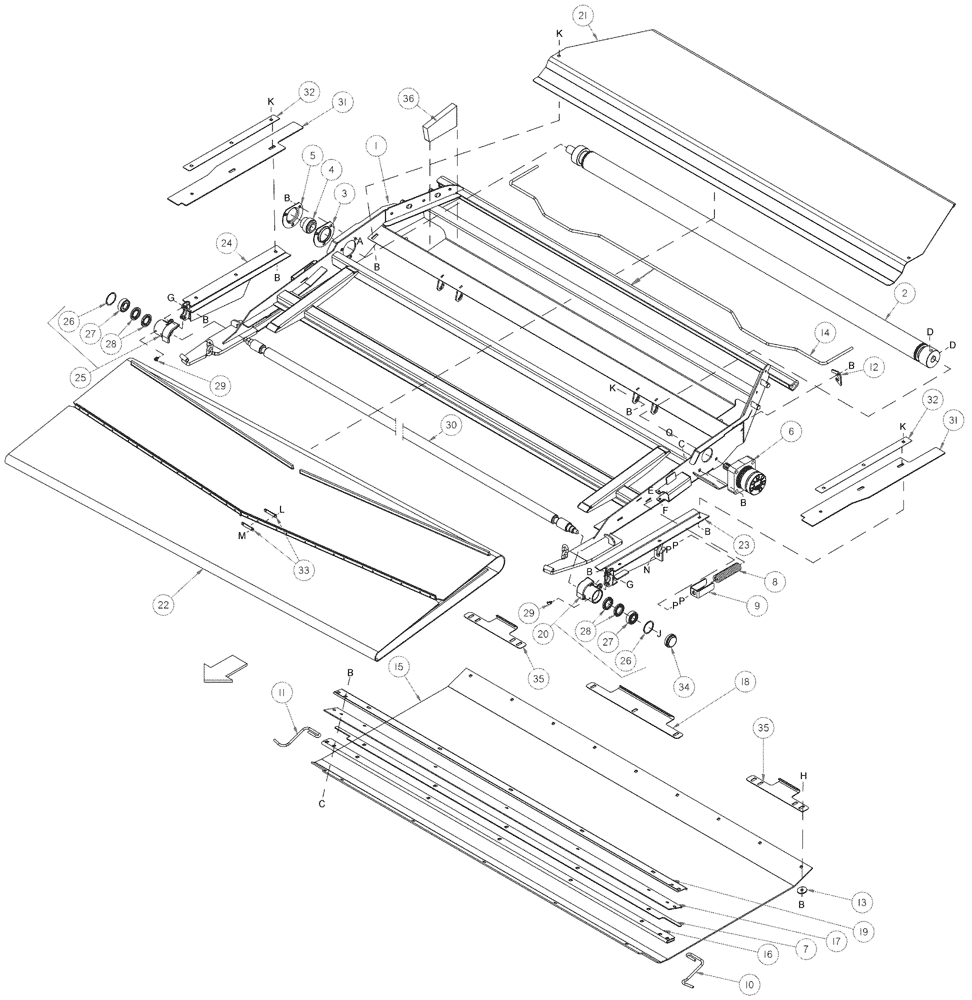

Запчасти Case IH 2152 (09-52) - ADAPTER FEED DECK

84529707

ADAPTER

DECK ASSEMBLY, COMPLETE

1шт.

1

84529690

CARRIER

Deck, Feed, Serial Range: -`0

1шт.

Units with SN Y7ZN00301 and below, order complete deck assembly 84250449 if ref. 1 requires replacement

1шт.

2

87685328

SHAFT

Drive, Serial Range: -Y7ZN00301

1шт.

2

87627760

ROLLER,76.2mm OD x 2048.5mm L

Drive, Start Serial: Y7ZN00301

1шт.

3

338335A1

FLANGE

Cropped, Inner

1шт.

4

557116R91

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

Inc. 557117R11

1шт.

#5 Not Used With This Bearing

1шт.

557117R11

COLLAR

1шт.

5

87560297

FLANGE

Cropped, Outer

1шт.

6

87561179

HYDRAULIC MOTOR

Draper Drive, Inc. Key, Serial Range: -Y7ZN00301

1шт.

6

87627787

MOTOR, HYDRAULIC

Draper Drive, Inc. Splined Shaft, Start Serial: Y7ZN00301

1шт.

700709231

SEAL KIT

Draper Drive Motor

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Draper Drive Motor

1шт.

7

87560513

BAR

Feed Deck Cover

1шт.

8

338592A1

SPRING

Draper Tension, Serial Range: -Y7ZN00301

2шт.

8

87627761

SPRING

Draper Tension, Start Serial: Y7ZN00301

2шт.

9

87561248

RETAINER

2шт.

10

87561451

ROD

Hinge, Left Hand

1шт.

11

87561452

ROD

Hinge, Right Hand

1шт.

12

87561160

LATCH

Feed Deck Door

1шт.

13

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

9шт.

14

87561106

TUBE

Deck

1шт.

15

87561210

PAN

Poly

1шт.

16

87560516

BAR

Front, Feed Deck Cover

1шт.

17

87566345

SEAL

1шт.

18

87627759

HOOK

Rear, Center Section, Serial Range: -`0

1шт.

Units With SN Y7ZN00301 And Below, When Replacing One-Piece Hook, Order Qty 1 Ref 18 and 2 Ref 35.

1шт.

19

87561564

STRAP

Front

1шт.

20

87561138

HOUSING ASSY.

Left Hand, Inc. 26 - 28

1шт.

21

84363462

PAN

Feed Deck

1шт.

22

87560973

DRAPER,Feed Deck, 78.8" Wide x 67.4" Long

Feed Deck

1шт.

23

84529720

ARM

Idler, Left Hand

1шт.

24

84529721

ARM

Idler, Right Hand

1шт.

25

87561137

HOUSING ASSY.

Right Hand, Inc. 26 - 28

1шт.

26

388661A1

RING

2шт.

27

396012A1

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

28

341036A1

OIL SEAL

Oil

4шт.

29

86585176

LUBE NIPPLE,90 Degree, 1/4" NPT x .75" lg

2шт.

30

87561506

SHAFT

Idler Roller

1шт.

31

84529718

SEAL

Feed Draper Poly

2шт.

32

87561246

RETAINER

Side, Model Year 2011 And Prior

2шт.

32

84529693

RETAINER

Side, Model Year 2012

2шт.

33

87561565

STRAP

Draper

28шт.

34

87560848

CAP

Dust

2шт.

35

87627758

HOOK

Rear, Outside Section, Serial Range: -`0

2шт.

Units With SN Y7ZN00301 And Below, When Replacing One-Piece Hook, Order Qty 1 Ref 18 and 2 Ref 35.

1шт.

36

87627756

PLUG

Foam

2шт.

37

84223265

SERVICE KIT

Feed Deck Chain Update

1шт.

a

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

b

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

c

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.

d

80425

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

1шт.

e

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

f

231-4145

NUT,5/16"-18, GB

1шт.

g

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

h

280430

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

j

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

k

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

l

347236A1

SCREW

1шт.

m

1954816C1

LOCK NUT

1шт.

n

48083224

BOLT

1шт.

p

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

q

280514

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

1шт.
