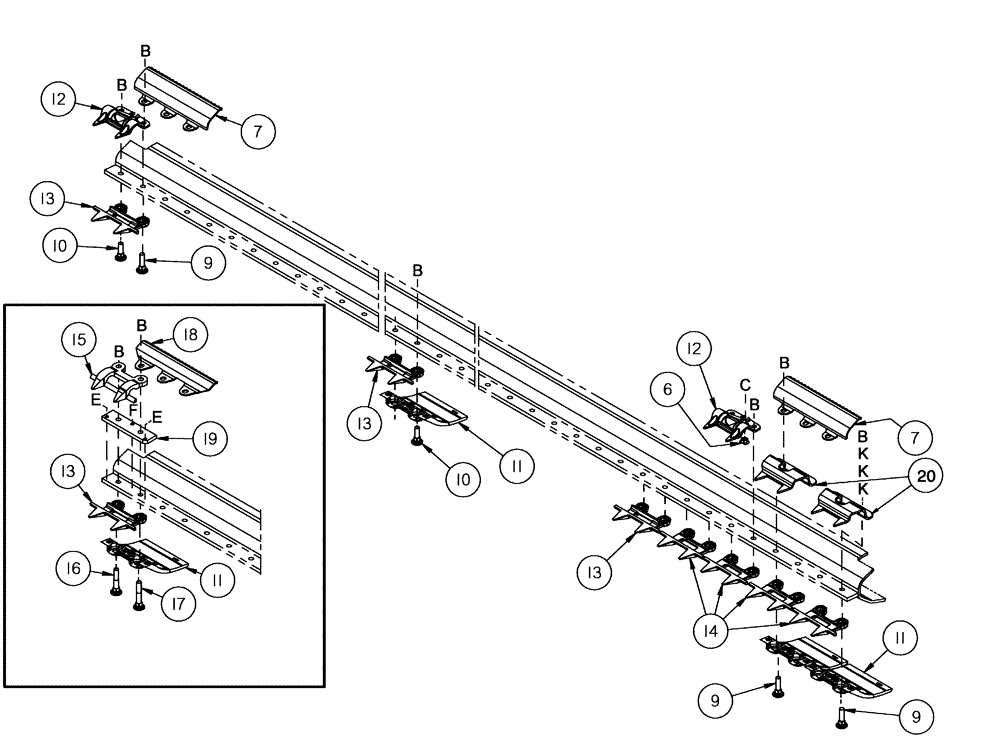

Запчасти Case IH 2152 (09-06) - SICKLE AND GUARDS - SINGLE SICKLE HEADERS - STUB GUARDS

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

20шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

25шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

30шт.

2142 And 2152 Only

1шт.

30.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

29шт.

2162 Only

1шт.

30.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

35шт.

2142 And 2152 Only

1шт.

35.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

33шт.

2162 Only

1шт.

35.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

40шт.

40.0 Foot Header

1шт.

2152 Only

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

39шт.

40.0 Foot Header

1шт.

2162 Only

1шт.

7

87561244

RETAINER

Right Hand And Left Hand End

2шт.

9

87533767

BOLT

8шт.

10

87533769

BOLT

77шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

10

87533769

BOLT

97шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

10

87533769

BOLT

117шт.

2142 And 2152 Only

1шт.

30.0 Foot Header

1шт.

10

87533769

BOLT

112шт.

2162 Only

1шт.

30.0 Foot Header

1шт.

10

87533769

BOLT

137шт.

2142 And 2152 Only

1шт.

35.0 Foot Header

1шт.

10

87533769

BOLT

132шт.

2162 Only

1шт.

35.0 Foot Header

1шт.

10

87533769

BOLT

160шт.

40.0 Foot Header

1шт.

2152 Only

1шт.

10

87533769

BOLT

152шт.

40.0 Foot Header

1шт.

2162 Only

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar

40шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar

50шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar

60шт.

30.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar

70шт.

35.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar

80шт.

40.0 Foot Header

1шт.

12

87407813

GUIDE

Sickle, Hold Down, Stub Guards

38шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

12

87407813

GUIDE

Sickle, Hold Down, Stub Guards

48шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

12

87407813

GUIDE

Sickle, Hold Down, Stub Guards

58шт.

30.0 Foot Header

1шт.

12

87407813

GUIDE

Sickle, Hold Down, Stub Guards

68шт.

35.0 Foot Header

1шт.

12

87407813

GUIDE

Sickle, Hold Down, Stub Guards

78шт.

40.0 Foot Header

1шт.

13

87422042

GUARD

Sickle, Stub Guards

36шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

13

87422042

GUARD

Sickle, Stub Guards

46шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

13

87422042

GUARD

Sickle, Stub Guards

56шт.

30.0 Foot Header

1шт.

13

87422042

GUARD

Sickle, Stub Guards

66шт.

35.0 Foot Header

1шт.

13

87422042

GUARD

Sickle, Stub Guards

76шт.

40.0 Foot Header

1шт.

14

87422043

GUARD

Sickle, Stub Guards

4шт.

15

370878A1

GUIDE

Hold Down, Forged Stub Guards

40шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

15

370878A1

GUIDE

Hold Down, Forged Stub Guards

50шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

15

370878A1

GUIDE

Hold Down, Forged Stub Guards

60шт.

30.0 Foot Header

1шт.

15

370878A1

GUIDE

Hold Down, Forged Stub Guards

70шт.

35.0 Foot Header

1шт.

15

370878A1

GUIDE

Hold Down, Forged Stub Guards

80шт.

40.0 Foot Header

1шт.

16

87533768

BOLT

Forged Stub Guards

74шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

16

87533768

BOLT

Forged Stub Guards

94шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

16

87533768

BOLT

Forged Stub Guards

114шт.

30.0 Foot Header

1шт.

16

87533768

BOLT

Forged Stub Guards

134шт.

35.0 Foot Header

1шт.

16

87533768

BOLT

Forged Stub Guards

154шт.

40.0 Foot Header

1шт.

17

84290803

SPECIAL BOLT

Carr. Bolt, Special, 7/16" x 2-3/4", Forged Stub Guards

6шт.

18

87561243

RETAINER

Forged Stub Guards

2шт.

19

370877A1

BAR

Adjuster

40шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

19

370877A1

BAR

Adjuster

50шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

19

370877A1

BAR

Adjuster

60шт.

30.0 Foot Header

1шт.

19

370877A1

BAR

Adjuster

70шт.

35.0 Foot Header

1шт.

19

370877A1

BAR

Adjuster

80шт.

40.0 Foot Header

1шт.

20

87605712

KNIFE GUIDE

Sheet Metal Hold Down, LH Stub Guard Only

2шт.

b

280717

NUT,7/16"-14, G5

1шт.

c

88703

BOLT,Hex, 3/8" x 5/8", Gr 5, Full Thd

1шт.

e

113-2299

BOLT,Hex, 3/8" - 16 x 3/4", SST

1шт.

f

113-2295

BOLT,Hex, 3/8" - 16 x 1", SST

1шт.

k

495-21044

WASHER,3/8"

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

Available Through Whole Goods Only, Order B4865

1шт.

20.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

Available Through Whole Goods Only, Order B4838

1шт.

25.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

30.0 Foot Header

1шт.

Available Through Whole Goods Only, Order B4839

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

Available Through Whole Goods Only, Order B4840

1шт.

35.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

40.0 Foot Header

1шт.

Available Through Whole Goods Only, Order B4841

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

45.0 Foot Header

1шт.

Available Through Whole Goods Only, Order B5114

1шт.
