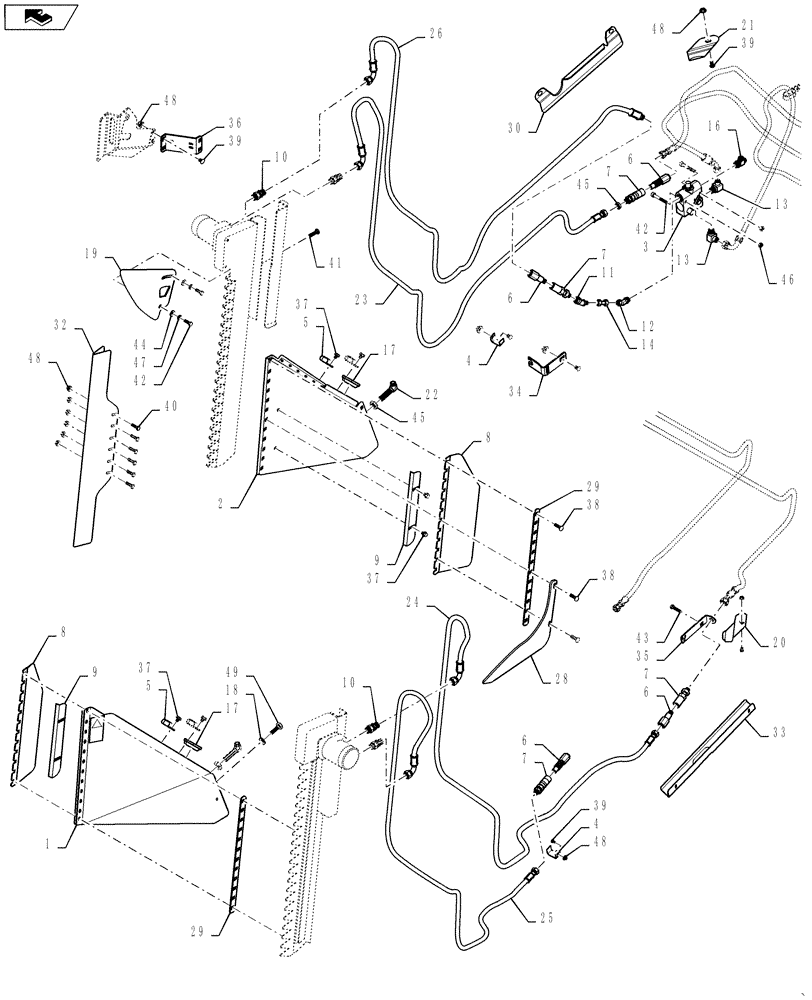

Запчасти Case IH 2152 (09-50C) - VERTICAL KNIFE

1

NS

NOT SERVICED

VERTICAL KNIFE SUPPORT, LH, Includes Decal

1шт.

2

NS

NOT SERVICED

VERTICAL KNIFE SUPPORT, RH, Includes Decal

1шт.

3

84186440

VALVE

Vertical Knife

1шт.

3

1336568C1

KIT

Seal

1шт.

4

84186425

CLAMP

Vertical Knife Hoses

6шт.

5

470375C1

CLAMP,1", Insul, 3/8" Bolt

5шт.

6

NS

NOT SERVICED

COUPLER, Male, 3/8 Inch, Flat Face

4шт.

7

87585266

COUPLING

Female, 3/8 Inch, Flat Face

4шт.

8

84186437

DEFLECTOR

Vertical Knife

2шт.

9

84186431

DEFLECTOR

Vertical Knife

2шт.

10

242680

HYD CONNECTOR,7/8" - 14 JIC x 1/2" - 14 NPT

4шт.

11

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

12

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

1шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

14

NS

NOT SERVICED

UNION, Female

1шт.

15

9402983

TEE,7/8"-14, 37 Degree

1шт.

16

NS

NOT SERVICED

TEE

1шт.

17

84186426

GROMMET

2шт.

18

495-81042

WASHER,25/32" x 1 1/2" x .120"

2шт.

2142 Only

1шт.

19

84186429

GUIDE

Top Vertical Knife

2шт.

20

84186441

HOLDER

Hose Vertical Knife, LH

1шт.

21

84186442

HOLDER

Hose Vertical Knife, RH

1шт.

22

87561129

HOOK

Divider Latch

2шт.

2152 And 2162 Only

1шт.

23

84186446

FLEXIBLE HOSE

Vertical Knife Return, RH

1шт.

24

84186434

HOSE

Vertical Knife Pressure, LH

1шт.

25

84186447

FLEXIBLE HOSE

Vertical Knife Return, LH

1шт.

26

84186433

HOSE,12.7mm ID x 3425mm L, SAE 100R17

Vertical Knife Pressure, RH

1шт.

27

84186432

LEVER

Safety

2шт.

28

84495798

KNIFE

Lifter

2шт.

29

84186430

RETAINER

Deflector Vertical Knife

2шт.

30

NS

NOT SERVICED

GUIDE, RH Hoses, Vertical Knife

1шт.

31

84186435

SHIELD

Hoses RH Vertical Knife

1шт.

31

84186438

SHIELD

Hoses LH Vertical Knife

1шт.

32

84186427

SHIELD

Vertical Knife

2шт.

33

84186448

SUPPORT ASSY.

LH Vertical Knife

1шт.

34

84186443

SUPPORT

Coupler

1шт.

35

84186445

SUPPORT

Hose LH Vertical Knife

1шт.

36

84495795

SUPPORT

Lamp, Vertical Knife

1шт.

37

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

1шт.

38

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

39

411-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 2

1шт.

40

80280806

SCREW

3/8 NC x 3.0 LG GR 5 ZP

1шт.

41

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

42

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

43

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

44

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

45

219758

JAM NUT,Jam, 3/4"-10, G5

1шт.

46

87034810

NUT,1/4"-20, GA

1шт.

47

492-11038

LOCK WASHER,3/8"

1шт.

48

473371R1

FLANGE NUT

0.375-16 UNC

1шт.

49

414-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 5

1шт.

2142 Only

1шт.
