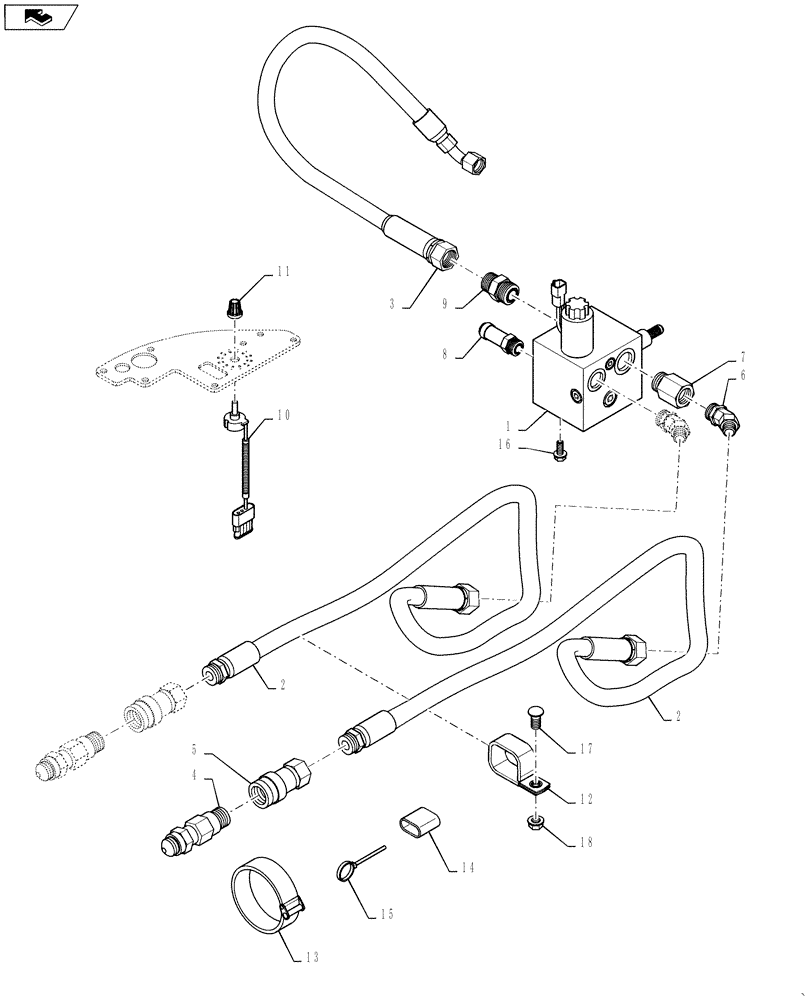

Запчасти Case IH 2152 (09-50B) - HYDRAULIC FOR HEADERS WITH UPPER CROSS AUGER AND DOUBLE DRAPER DRIVE

1

47570785

MANIFOLD

MANIFOLD, Drive

1шт.

2

NS

NOT SERVICED

HOSE

2шт.

3

NS

NOT SERVICED

HOSE

1шт.

4

87597367

COUPLING

Male, 1/2 Inch

2шт.

5

87472038

FITTING

Female, 1/2 Inch

2шт.

6

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

7

NS

NOT SERVICED

ADAPTER

1шт.

8

NS

NOT SERVICED

ADAPTER

1шт.

9

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1шт.

10

NS

NOT SERVICED

GAUGE, Potentiometer

1шт.

11

NS

NOT SERVICED

KNOB, Speed Control

1шт.

12

87498989

STRAP

3шт.

13

NS

NOT SERVICED

STRAP, Velcro, 305 mm

2шт.

14

87383360

STRAP

4шт.

15

87407798

FASTENER

Cable Tie, Red

2шт.

16

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

1шт.

17

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

18

473371R1

FLANGE NUT

1шт.
