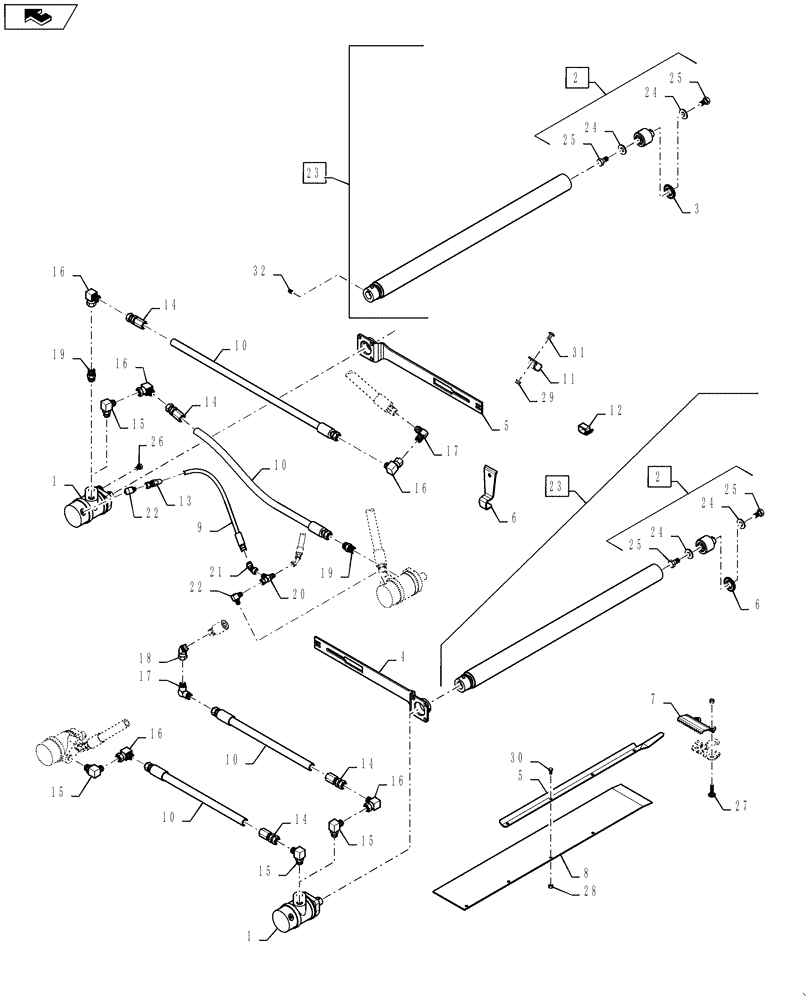

Запчасти Case IH 2152 (09-50A) - DOUBLE DRAPER DRIVE
№
Артикул
Название
Примечание
Количество
1
87561200
HYDRAULIC MOTOR
2.44 CID
2шт.
87585425
SEAL KIT
Kit
1шт.
2
87560474
BEARING ASSY
Draper Roller, Includes Hardware
2шт.
3
87561492
SEAL,25mm ID x 52mm OD x 4mm Thk
2шт.
4
87560459
ARM
20 Foot Header, Motor Support
2шт.
4
87560468
ARM
25 - 40 Foot Header, Motor Support, LH
1шт.
4
87560469
ARM
25 - 40 Foot Header, Motor Support, RH
1шт.
4
87753072
ARM ASSY.
45 Foot Header, Motor Support
2шт.
4
47611783
ARM
2шт.
5
87560453
ARM
Support, Front LH
1шт.
5
87560333
SUPPORT
Arm, Front RH
1шт.
6
NS
NOT SERVICED
CLAMP
8шт.
7
NS
NOT SERVICED
RETAINER, Deflector
1шт.
8
47796531
DEFLECTOR
Rubber
1шт.
9
NS
NOT SERVICED
HOSE, Hydraulic
1шт.
10
NS
NOT SERVICED
HOSE, Hydraulic
4шт.
11
338322A1
CLIP
15/16 Inch
4шт.
12
87383360
STRAP
4 Inch
8шт.
13
347308A1
FITTING
Hose End
1шт.
14
NS
NOT SERVICED
FITTING, Hose End
4шт.
15
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
4шт.
16
9410282
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
5шт.
17
9402944
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
2шт.
18
86512960
ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
1шт.
19
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
2шт.
20
218-5222
TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run
1шт.
21
NS
NOT SERVICED
ELBOW, 45 Degree
1шт.
22
218-5278
ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB
1шт.
23
84238688
ROLLER
Drive, Incl 2 - 3
2шт.
24
25537R1
WASHER,21/32" x 1 5/16" x .095", HDN
1шт.
25
414-1016
BOLT,Hex, 5/8" - 18 x 1", Gr 5
1шт.
26
87605747
BOLT
.375-16 UNC
1шт.
27
87533767
BOLT
7/16 NC x 1.75 LG GR 5 ZP
1шт.
28
1954816C1
LOCK NUT
#12 - 24 NC
1шт.
29
473371R1
FLANGE NUT
0.375-16 UNC
1шт.
30
700708646
BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"
1шт.
31
86511946
SCREW,Phillips Drive, Pan HD, 3/8" - 16 x 3/4"
1шт.
32
80425
SET SCREW,Hex Soc, 3/8"-16 x 3/8"
1шт.
Выбрано товаров: 38
