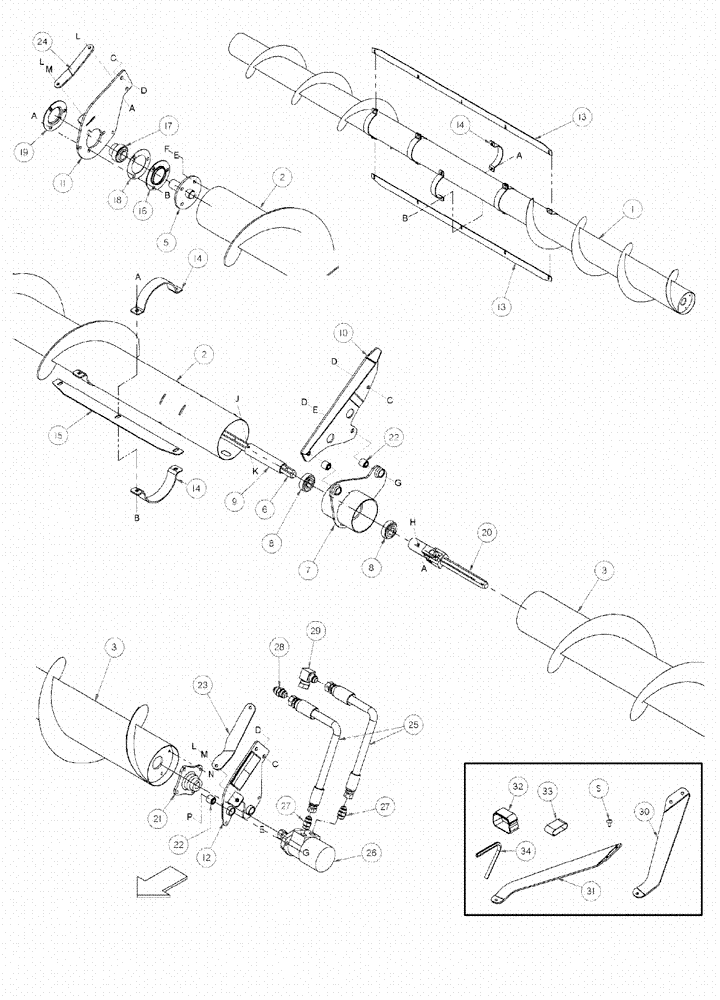

Запчасти Case IH 2152 (09-44) - UPPER CROSS AUGER (OPTION)

87556678

DIA KIT, TRACTOR

Upper Cross Auger Without Shields

1шт.

Available Through Whole Goods Only, Order B4845

1шт.

20.0 Foot Header

1шт.

87556679

DIA KIT, TRACTOR

Upper Cross Auger Without Shields

1шт.

Available Through Whole Goods Only, Order B4846

1шт.

25.0 Foot Header

1шт.

87556680

KIT

Upper Cross Auger Without Shields, B4847, 30 Foot Header

1шт.

2142 Only

1шт.

87556681

PACKAGE

Upper Cross Auger Without Shields, 35 Foot Header

1шт.

87556578

PACKAGE

Upper Cross Auger Without Shields, 40 Foot Header

1шт.

1

87585181

AUGER

Upper Cross

1шт.

20.0 Foot Header

1шт.

1

87585182

AUGER

Upper Cross

1шт.

25.0 Foot Header

1шт.

2

87585171

AUGER

Upper Cross, Right Hand, See figure Note

1шт.

30.0 Foot Header

1шт.

2

87585178

AUGER

Upper Cross, Right Hand

1шт.

35.0 Foot Header

1шт.

2

87585179

AUGER

Upper Cross, Right Hand

1шт.

40.0 Foot Header

1шт.

3

87585176

AUGER

Left Hand End, See Figure Note

1шт.

30.0 Foot Header

1шт.

3

87585177

AUGER

Left Hand End

1шт.

35.0 Foot Header

1шт.

3

87585180

AUGER

Left Hand End

1шт.

40.0 Foot Header

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

(Not shown)

2шт.

5

87585428

PRIMARY SHAFT

End

1шт.

6

87480990

SHAFT

1шт.

7

84178110

SUPPORT ASSY.

Center Hanger Assembly, Inc. 11, 25

1шт.

8

87627083

BALL BEARING,25.4 mm ID x 62 mm OD x 24 mm

2шт.

9

87481580

SPACER

BRACKET

1шт.

10

87735707

BRACKET

Center Adjustment

1шт.

11

87481046

SUPPORT ASSY.

Decal Aseembly, Right Hand

1шт.

12

87481045

SUPPORT ASSY.

Decal Assembly, Left Hand

1шт.

13

87459410

CLAMP

Beater Bar

8шт.

20.0 And 25.0 Foot Header

1шт.

14

87459409

CLAMP

8шт.

15

87585191

BAR

Beater

4шт.

16

428426A1

FLANGE

1шт.

17

557116R91

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

1.18" ID

1шт.

17

63266

COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W

Locking

1шт.

18

87735706

SHIM,70mm ID x 112mm OD x 1mm Thk

1шт.

19

428425A1

FLANGED BEARING

1шт.

20

87585353

UNIVERSAL JOINT

Joint

2шт.

21

87627086

BRACKET

Hub

1шт.

22

84178103

RUBBER BUSHING

1шт.

23

87480987

BRACE

Left Hand

1шт.

24

87480989

BRACE

Right Hand

1шт.

25

87585346

HOSE ASSY.

20.0 Foot Header

2шт.

25

87585345

HOSE ASSY.

25.0 Foot Header

2шт.

25

87585343

HOSE ASSY.

2530mm, 30 Foot Header

2шт.

25

84290806

HYDRAULIC HOSE

3290mm, 35 Foot Header

2шт.

25

84290804

HYDRAULIC HOSE

40 Foot Header

2шт.

26

87627078

MOTOR, HYDRAULIC,GEAR, 130 CC

1шт.

700709231

SEAL KIT

Motor

1шт.

87381294

LOCK NUT

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

28

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

29

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

30

87480988

BRACE

Left Hand

1шт.

31

87480991

BRACE

Right Hand

1шт.

32

87383360

STRAP

4 Inch

2шт.

32

87383361

STRAP

6 Inch

2шт.

33

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

34

87752650

MOLDING

1шт.

a

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

b

492-11050

LOCK WASHER,1/2"

1шт.

c

231-4148

NUT,1/2"-13, GB

1шт.

d

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

e

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

f

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

g

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

h

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

j

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

k

86509499

JAM NUT,3/8"-16, G2

1шт.

l

80435

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

1шт.

m

492-11038

LOCK WASHER,3/8"

1шт.

n

281-54816

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

1шт.

p

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

q

86511946

SCREW,Phillips Drive, Pan HD, 3/8" - 16 x 3/4"

1шт.
