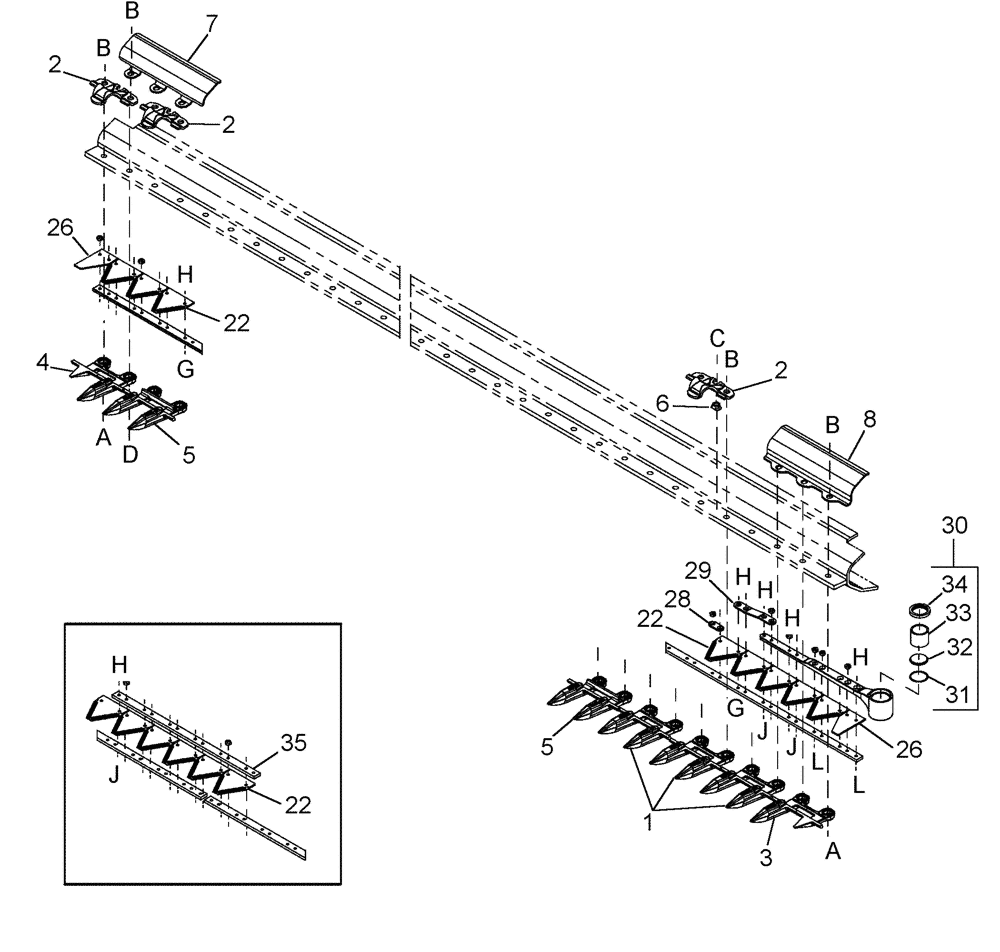

Запчасти Case IH 2152 (09-04) - SICKLE AND GUARDS - SINGLE SICKLE HEADERS - CASE HARDENED, 2142 STD

1

87422041

GUARD

Sickle, Drive End

3шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

20шт.

2142 And 2152 Only,20.0 Foot Header

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

25шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

30шт.

2142 And 2152 Only,30.0 Foot Header

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

29шт.

2162 Only,30.0 Foot Header

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

35шт.

2142 And 2152 Only,35.0 Foot Header

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

33шт.

2162 Only,35.0 Foot Header

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

40шт.

40.0 Foot Header,2152 Only

1шт.

2

87407812

GUIDE

Hold Down, Serial Range: -`0

39шт.

40.0 Foot Header,2162 Only

1шт.

2

84399893

KIT

Box Of 25 Of 87407812

1шт.

3

87422039

GUARD

Sickle, Outboard, Left Hand

1шт.

4

87422040

GUARD

Sickle, Outboard, Right Hand

1шт.

5

87560324

GUARD

Sickle, Serial Range: -`0

35шт.

2142 And 2152 Only,20.0 Foot Header

1шт.

5

87560324

GUARD

Sickle, Serial Range: -`0

45шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

5

87560324

GUARD

Sickle, Serial Range: -`0

55шт.

30.0 Foot Header

1шт.

5

87560324

GUARD

Sickle, Serial Range: -`0

65шт.

35.0 Foot Header

1шт.

5

87560324

GUARD

Sickle, Serial Range: -`0

75шт.

40.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

20шт.

2142 And 2152 Only,20.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

25шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

30шт.

2142 And 2152 Only,30.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

29шт.

2162 Only,30.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

35шт.

2142 And 2152 Only,35.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

33шт.

2162 Only,35.0 Foot Header

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

40шт.

40.0 Foot Header,2152 Only

1шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -`0

39шт.

40.0 Foot Header,2162 Only

1шт.

7

87561244

RETAINER

Right Hand End, Serial Range: -`0

1шт.

2142 And 2152 Only

1шт.

8

87561242

RETAINER

Left Hand End, Serial Range: -`0

1шт.

2142 And 2152 Only

1шт.

22

84342590

KNIFE SECTION

Fine, Sickle, 14 Serrations per Inch, (Includes 10 of 1327448C1), Serial Range: -`0

79шт.

2142 And 2152 Only,20.0 Foot Header

1шт.

22

84342603

KIT

Fine, Sickle, 14 Serrations per Inch, (Includes 25 of 87422350)

1шт.

22

84342589

KIT

Fine, Sickle, 14 Serrations per Inch, (Includes 100 of1327448C1)

1шт.

22

84342601

KIT

Coarse, Sickle, 9 Serrations per Inch, (Includes 10 of 87422066), Serial Range: -`0

79шт.

2142 And 2152 Only,20.0 Foot Header

1шт.

22

84331101

BLADE

Coarse, Sickle, 9 Serrations per Inch, (Includes 25 of 87422066)

1шт.

22

84342600

KIT

Coarse, Sickle, 9 Serrations per Inch, (Includes 100 of 87458207)

1шт.

22

84342590

KNIFE SECTION

Fine, Sickle, 14 Serrations per Inch, (Includes 10 of 1327448C1), Serial Range: -`0

99шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

22

84342601

KIT

Coarse, Sickle, 9 Serrations per Inch, (Includes 10 of 87422066), Serial Range: -`0

99шт.

2142 And 2152 Only,25.0 Foot Header

1шт.

22

84342590

KNIFE SECTION

Fine, Sickle, 14 Serrations per Inch, (Includes 10 of 1327448C1), Serial Range: -`0

119шт.

30.0 Foot Header

1шт.

22

84342601

KIT

Coarse, Sickle, 9 Serrations per Inch, (Includes 10 of 87422066), Serial Range: -`0

119шт.

30.0 Foot Header

1шт.

22

84342590

KNIFE SECTION

Fine, Sickle, 14 Serrations per Inch, (Includes 10 of 1327448C1), Serial Range: -`0

139шт.

35.0 Foot Header

1шт.

22

84342601

KIT

Coarse, Sickle, 9 Serrations per Inch, (Includes 10 of 87422066), Serial Range: -`0

139шт.

35.0 Foot Header

1шт.

22

84342590

KNIFE SECTION

Fine, Sickle, 14 Serrations per Inch, (Includes 10 of 1327448C1), Serial Range: -`0

78шт.

40.0 Foot Header

1шт.

22

84342601

KIT

Coarse, Sickle, 9 Serrations per Inch, (Includes 10 of 87422066), Serial Range: -`0

78шт.

40.0 Foot Header

1шт.

26

84342588

KIT

Half Section, (Includes 10 of 1327411C1)

2шт.

28

84342587

KIT

Bar, Reinforcing, (Includes 25 of 87458207), Serial Range: -`0

1шт.

20.0, 25.0, 30.0, And 35.0 Foot Headers

1шт.

28

84342587

KIT

Bar, Reinforcing, (Includes 25 of 87458207), Serial Range: -`0

1шт.

40.0 Foot Header

1шт.

29

87456665

BAR

Reinforcing At Sickle Head, Serial Range: -`0

1шт.

20.0 And 25.0 Foot Header,2142 And 2152 Only

1шт.

30

87561117

HEAD ASSY.

Sickle, Inc. 31 - 34, 37, Serial Range: -`0

1шт.

20.0 And 25.0 Foot Header,2142 And 2152 Only

1шт.

30

87561157

KNIFE HEAD

Left Hand, 5 Degree Angle, Inc. 31 - 34, 37, Serial Range: -`0

1шт.

30.0, 35.0, 40.0 and 45.0 Foot Headers

1шт.

31

430320A1

O-RING,0.07" Thk x 1.364" ID, -28, Cl 5, 75 Duro

Sickle Head

1шт.

32

395820A1

PLUG

Sickle Head

1шт.

33

A27827

NEEDLE BEARING,Needle, 31.75mm ID x 38.1mm OD x 31.75mm W

Needle, Sickle Head

1шт.

34

345892A1

SEAL KIT

Sickle Head, Serial Range: -`0

1шт.

Install With Lip Facing Down

1шт.

35

126622A2

BAR

Splice, 2 - Piece Sickles

1шт.

36

87409005

CUTTERBAR,1300mm L

Repair Piece, 1300 mm (4.3 ft)

1шт.

37

47810664

DRIVE

Bar Sickle

1шт.

Applies to 87561117 Knife Assy

1шт.

37

47816538

DRIVE

Bar Sickle

1шт.

Applies to 87561157 Knife Assy

1шт.

a

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

1шт.

b

280717

NUT,7/16"-14, G5

1шт.

c

88703

BOLT,Hex, 3/8" x 5/8", Gr 5, Full Thd

1шт.

d

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

1шт.

d

433-732

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

1шт.

g

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

1шт.

h

1954816C1

LOCK NUT

1шт.

j

851735

BOLT

1шт.

l

87585924

SCREW,Truss Slotted, 27.05mm, Gr 8

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly, Serial Range: -`0

1шт.

Available Through Whole Goods Only, Order B4865,20.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly, Serial Range: -`0

1шт.

Available Through Whole Goods Only, Order B4838,25.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly, Serial Range: -`0

1шт.

30.0 Foot Header,Available Through Whole Goods Only, Order B4839

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly, Serial Range: -`0

1шт.

Available Through Whole Goods Only, Order B4840,35.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly, Serial Range: -`0

1шт.

40.0 Foot Header,Available Through Whole Goods Only, Order B4841

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly, Serial Range: -`0

1шт.

45.0 Foot Header,Available Through Whole Goods Only, Order B5114

1шт.
