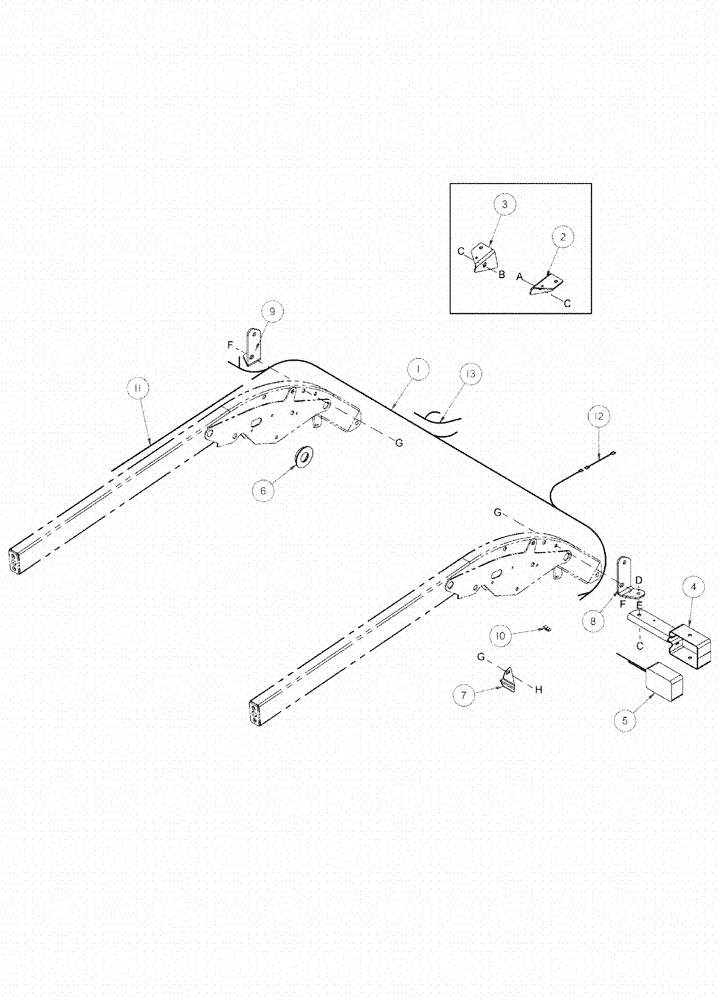

Запчасти Case IH 2152 (09-34) - ELECTRICAL

1

87685320

WIRE HARNESS

1шт.

20.0 Foot Single Reel Header

1шт.

1

87685321

WIRE HARNESS

1шт.

25.0 Foot Single Reel Header

1шт.

1

87685322

WIRE HARNESS

1шт.

30.0 Foot Single Reel Header

1шт.

1

87685323

WIRE HARNESS

1шт.

35.0 Foot Single Reel Header

1шт.

1

87685316

WIRE HARNESS

1шт.

30.0 Foot Double Reel Header

1шт.

1

87685317

WIRE HARNESS

1шт.

35.0 Foot Double Reel Header

1шт.

1

87685318

WIRE HARNESS

1шт.

40.0 Foot Double Reel Header

1шт.

1

87685319

WIRE HARNESS

1шт.

45.0 Foot Double Reel Header

1шт.

2

87561605

SUPPORT

Lamp Mounting, Left Hand, Serial Range: -Y7ZN00301

1шт.

3

87561617

SUPPORT

Lamp Mounting, Right Hand, Serial Range: -Y7ZN00301

1шт.

4

87561608

SUPPORT

Lamp

2шт.

5

87561159

LAMP

Amber

2шт.

NSS

NOT SOLD SEPARAT

BULB, Replacement #1156, See Retailer

1шт.

84178108

LENS

Amber Replacement

1шт.

6

87566758

GROMMET

Harness

1шт.

8

87605716

SUPPORT ASSY.

Lamp, Left Hand, Start Serial: Y7ZN00301

1шт.

9

87605717

SUPPORT ASSY.

Lamp, Right Hand, Start Serial: Y7ZN00301

1шт.

11

87752699

WIRE HARNESS

Reel Speed Sensor (If Equipped)

1шт.

12

87685325

WIRE HARNESS

Transport Adapter, 2007 And Earlier

1шт.

12

87752704

WIRE HARNESS

Transport Adapter, 2007 And Later

1шт.

13

87561111

WIRE HARNESS

Hydraulic Shift

1шт.

a

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

b

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

c

87323841

FLANGE NUT

1шт.

d

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

e

495-11053

WASHER,1/2", SAE

1шт.

f

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

g

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.
