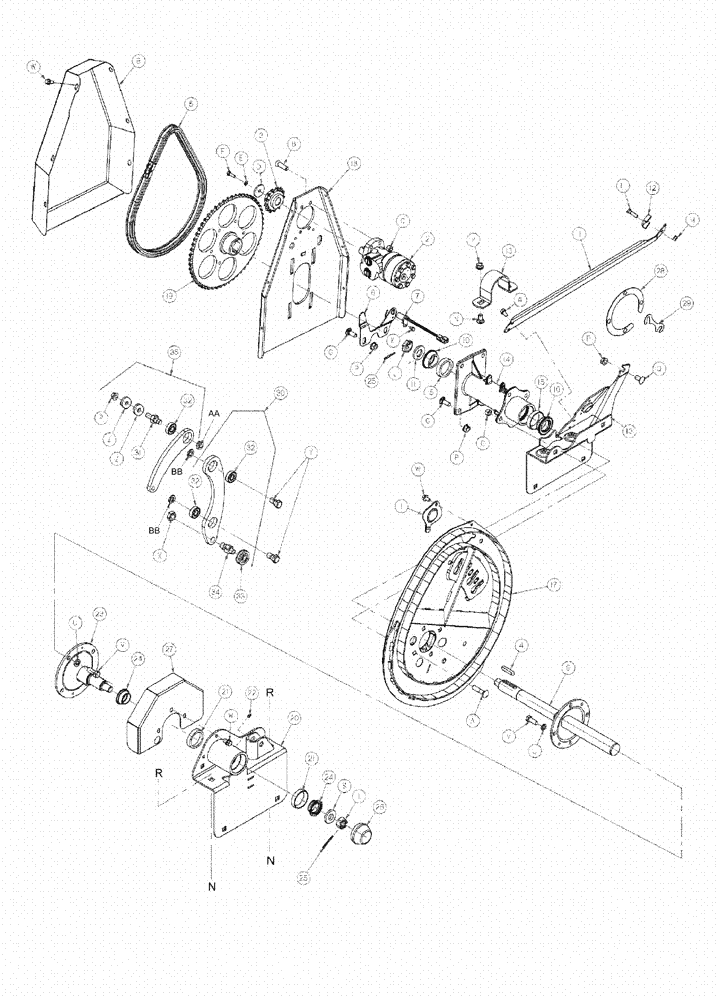

Запчасти Case IH 2152 (09-27) - REEL DRIVE COMPONENTS - 2142

1

87560891

COVER

Cam Bearing Access

1шт.

2

87627788

MOTOR, HYDRAULIC

1шт.

87627778

SEAL KIT

1шт.

3

87627775

SPROCKET

RC 60 13 Tooth

1шт.

4

87561155

KEY

Reel Drive Shaft

2шт.

5

87627768

CHAIN

RC 60, 66 Pitches Riveted

1шт.

6

87627776

SUPPORT ASSY.

Sensor Swather Reel Speed

1шт.

7

87585427

SENDER UNIT

Speed

1шт.

8

87627767

SUPPORT ASSY.

Reel Drive

1шт.

9

87561237

SHAFT

Reel Driveshaft

1шт.

10

96173C1

BEARING ASSY,38.1mm ID x 25.4mm W

2шт.

11

87627774

SUPPORT ASSY.

Hose Reel Drive

1шт.

12

1954807C1

CLAMP

1шт.

13

87627766

SUPPORT ASSY.

Reel Drive

1шт.

14

87561234

SUPPORT

Reel Drive Hub, Inc. Bearing Cups

1шт.

15

478793R1

BEARING CUP

2шт.

16

87627764

CLAMP

Reel Drive

1шт.

17

87560847

CAM

1шт.

18

87627769

SUPPORT ASSY.

Reel Drive Back Plate

1шт.

19

87566791

GEAR

56 Tooth - RC 60

1шт.

20

87627789

SUPPORT ASSY.

Tail End, Inc. Cups

1шт.

21

651817R1

BEARING CUP

2шт.

21

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

23

87561507

SHAFT

Tail End

1шт.

24

602958R91

BEARING ASSY,31.75 mm ID x 25.4 mm

Bearing, Inc. Seal

2шт.

25

825996C1

COTTER PIN

2шт.

26

820166C1

CAP

Dust

1шт.

27

87675665

SHEET METAL

Tail End

1шт.

28

87589354

RING

Shim, 4 Bolt Flange

1шт.

29

87589359

SHIM

Hub To Cam

1шт.

30

87627791

ARM ASSY.

Cam Control

5шт.

31

87627781

STUD

Link

5шт.

32

344806A1

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

Ball Cylinder OD 17 mm Bore

15шт.

33

344805A1

BALL BEARING,15.9 mm ID x 50.81 mm OD x 15 mm

Cam Follower

5шт.

34

87627780

PIPE FITTING

Cam Follower

5шт.

35

87627790

ARM ASSY.

Link Sub

5шт.

a

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

b

87566358

BOLT,FLAT, 1/2" - 13 x 1-3/4", Gr 5

1шт.

c

231-4148

NUT,1/2"-13, GB

1шт.

d

87627777

WASHER

1шт.

e

492-11031

LOCK WASHER,5/16"

1шт.

f

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

g

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

h

1276478C1

WASHER

1шт.

j

49027

SLOTTED NUT

1шт.

k

87585926

SELF-TAP SCREW,1/4" x 1/2"

1шт.

l

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

m

473371R1

FLANGE NUT

1шт.

n

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

p

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

q

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

r

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

s

1336594C1

WASHER

1шт.

t

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

u

492-11050

LOCK WASHER,1/2"

1шт.

v

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

w

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

x

219758

JAM NUT,Jam, 3/4"-10, G5

1шт.

y

347305A1

LOCK BOLT

1шт.

z

87627779

WASHER

1шт.

aa

129-391

JAM NUT,Jam, 5/8"-18, G5

1шт.

bb

492-11062

BEARING WASHER,5/8"

1шт.
