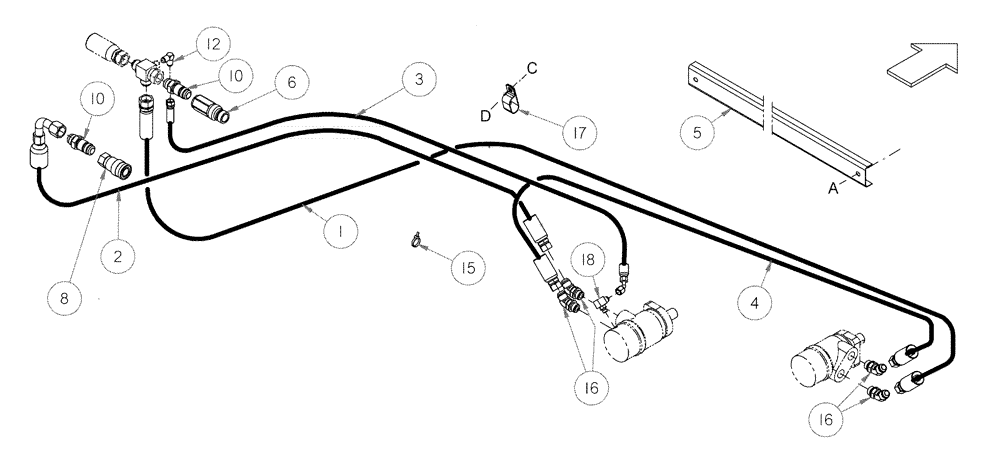

Запчасти Case IH 2152 (09-19) - DRAPER DRIVE HYDRAULICS, MANUAL DECK SHIFT HEADERS, 2162

1

87565697

HOSE ASSY.

1шт.

2

87565686

HOSE ASSY.

1шт.

3

87565685

HOSE ASSY.

1шт.

4

87565703

HOSE ASSY.

1шт.

5

87561124

HOLDER

Hose

1шт.

6

87605745

QUICK MALE COUPLING

1шт.

Ref. 6, 8 Are Optional For Combines, When Ordering For 2006 Headers And Older, Also Order Ref. 10.

1шт.

8

87472038

FITTING

1шт.

Ref. 6, 8 Are Optional For Combines, When Ordering For 2006 Headers And Older, Also Order Ref. 10.

1шт.

9

87561552

SLEEVE

Hose Protector

1шт.

10

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

4шт.

Ref. 6, 8 Are Optional For Combines, When Ordering For 2006 Headers And Older, Also Order Ref. 10.

1шт.

11

87561121

HOLDER

Hose

1шт.

12

241074

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

Single Knife Header

1шт.

13

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

1шт.

14

311164C1

CLAMP

1шт.

15

1336064C1

CABLE TIE

CABLE STRAP Cable Tie

1шт.

16

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

4шт.

17

338322A1

CLIP

3шт.

18

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. O-Ring

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

20

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

a

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

b

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

c

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

d

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.
