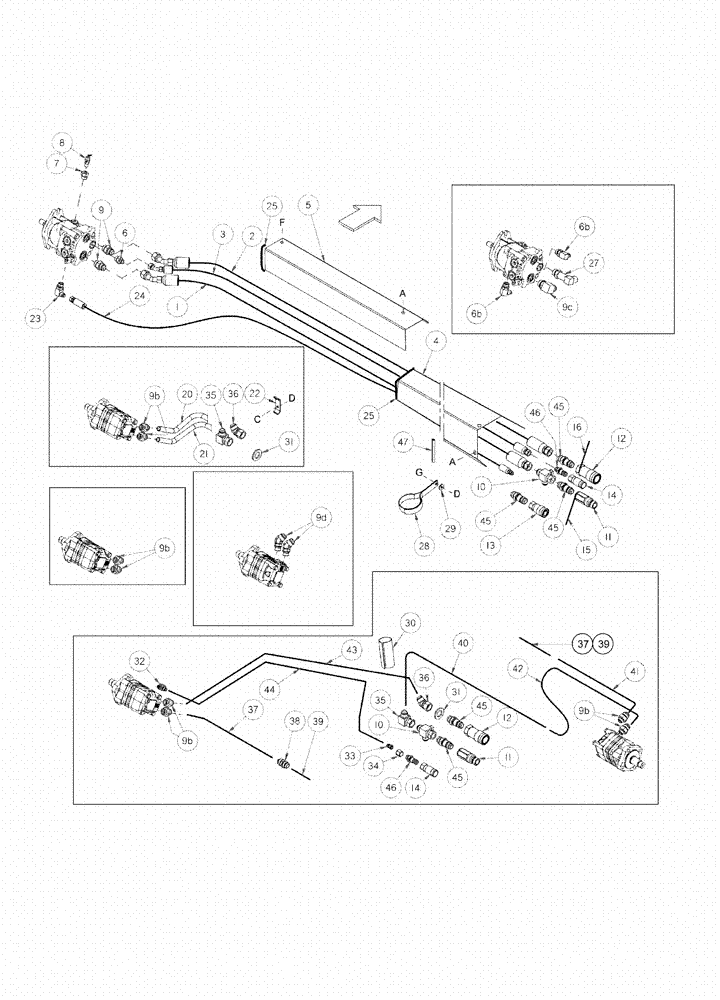

Запчасти Case IH 2152 (09-13) - KNIFE DRIVE HYDRAULICS

1

87565704

HOSE ASSY.

Knife Motor Return

1шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

1

87565691

HOSE ASSY.

Knife Motor Return

1шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

1

87565692

HOSE ASSY.

Knife Motor Return (Sauer Danfoss)

1шт.

Refer to figure note.

1шт.

2142 And 2152 Only

1шт.

30.0 Foot Header

1шт.

1

84139599

HOSE ASSY.

Knife Motor Return (Eaton Char-Lynn)

1шт.

Refer to figure note.

1шт.

2142 And 2152 Only

1шт.

30.0 Foot Header

1шт.

1

87565693

HOSE ASSY.

Knife Motor Return (Sauer Danfoss)

1шт.

Refer to figure note.

1шт.

2142 And 2152 Only

1шт.

35.0 Foot Header

1шт.

1

84139600

HOSE ASSY.

Knife Motor Return (Eaton Char-Lynn)

1шт.

Refer to figure note.

1шт.

2142 And 2152 Only

1шт.

35.0 Foot Header

1шт.

1

87565694

HOSE ASSY.

Knife Motor Return, Serial Range: -Y7ZN00301

1шт.

40.0 Foot Header

1шт.

2152 Only

1шт.

2

87565705

HOSE ASSY.

Knife Motor Pressure

1шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

2

87565687

HOSE ASSY.

Knife Motor Pressure

1шт.

2152 Only

1шт.

25.0 Foot Header

1шт.

2

87565688

HOSE ASSY.

Knife Motor Pressure

1шт.

2152 Only

1шт.

30.0 Foot Header

1шт.

2

87565689

HOSE ASSY.

Knife Motor Pressure

1шт.

2152 Only

1шт.

35.0 Foot Header

1шт.

2

87565690

HOSE ASSY.

Knife Motor Pressure, Serial Range: -Y7ZN00301

1шт.

40.0 Foot Header

1шт.

2152 Only

1шт.

3

87565715

CUTTER

Case Drain

1шт.

20.0 Foot Double Knife Header

1шт.

3

87565711

HOSE ASSY.

Case Drain

1шт.

25.0 Foot Double Knife Header

1шт.

3

87565712

HOSE ASSY.

Case Drain

1шт.

30.0 Foot Double Knife Header

1шт.

3

87565713

HOSE ASSY.

Case Drain

1шт.

35.0 Foot Double Knife Header

1шт.

4

87560893

COVER

Hose

1шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

4

87560901

COVER

Hose, Serial Range: -Y7ZN00301

1шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

4

87752693

COVER

Hose, Start Serial: Y7ZN00301

1шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

4

87585276

COVER ASSY

Hose to Year 2006

1шт.

30.0 Foot Header

1шт.

4

87589380

COVER ASSY

Hose Year, Start Serial: 2006

1шт.

30.0 Foot Header

1шт.

4

87585277

COVER ASSY

Hose to Year 2006

1шт.

35.0 Foot Header

1шт.

4

87589381

COVER ASSY

Hose Year, Start Serial: 2006

1шт.

35.0 Foot Header

1шт.

4

87560902

COVER

Hose, Serial Range: -Y7ZN00301

1шт.

40.0 Foot Header

1шт.

4

87627742

COVER

Hose, Start Serial: Y7ZN00301

1шт.

40.0 Foot Header

1шт.

5

87585274

COVER ASSY

Hose, Outboard Extension to Year 2006

1шт.

35.0 Foot Header

1шт.

5

87560906

COVER

Hose, Outboard Extension Year, Start Serial: 2006

1шт.

35.0 Foot Header

1шт.

5

87560905

COVER

Hose, Outboard Extension, Serial Range: -Y7ZN00301

1шт.

40.0 Foot Header

1шт.

6

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

Case Drain

1шт.

2152 Only

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Double Knife Headers

1шт.

6b

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Case Drain

2шт.

2152 Only

1шт.

20.0 Foot Double Knife Header

1шт.

7

196443A1

REDUCER

1шт.

8

87561648

VALVE

Case Drain

1шт.

9

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

2шт.

2152 Only

1шт.

25.0, 30.0, And 35.0 Foot Double Knife Headers

1шт.

9b

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

2шт.

20' Single Knife Header - 2152, 30', 35', And 40' Headers - 2162, 40' And 45' Double Knife Headers (Qty 4)

1шт.

9c

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

2шт.

20.0 Foot Double Knife Header

1шт.

9d

9610706

ELBOW,45 Degree, 1 1/16"-12 x 7/8"-14, O-Ring

2шт.

25.0, 30.0, 35.0, And 40.0 Foot Single Knife Headers

1шт.

10

87566756

TEE,3/4" JIC x 3/4" JIC x 3/4" JIC x 3/8" JIC

1шт.

Single/Double Knife Header

1шт.

10

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

Double Knife Header

1шт.

87605745

QUICK MALE COUPLING

1шт.

87752657

SEAL KIT

Seal Kit for 87605745

1шт.

12

87605744

COUPLING, QUICK, FEM

1шт.

87752705

SEAL KIT

1шт.

13

87472038

FITTING

1шт.

87752658

SEAL KIT

Seal Kit for 87472038

1шт.

14

87605746

COUPLING, QUICK, FEM

1шт.

87472323

KIT

Seal Kit for 87605746

1шт.

15

87585307

FASTENER

Blue

1шт.

16

87585308

FASTENER

Orange

1шт.

20

87585392

HYD TUBE,0.75" OD

Hydraulic Knife Drive Pressure, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

30.0 Foot Single Knife Header

1шт.

2162 Only

1шт.

20

84139584

HYD TUBE,0.750" OD

Hydraulic Knife Drive Pressure, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

30.0 Foot Single Knife Header

1шт.

2162 Only

1шт.

20

87585394

HYD TUBE,0.75" OD

Hydraulic Knife Drive Pressure, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

2162 Only

1шт.

35.0 Foot Single Knife Header

1шт.

20

84157830

HYD TUBE,19.05 mm OD x 3000 mm L

Hydraulic Knife Drive Pressure, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

2162 Only

1шт.

35.0 Foot Single Knife Header

1шт.

20

87585396

HYD TUBE,0.75" OD

Hydraulic Knife Drive Pressure, Serial Range: -174610

1шт.

40.0 Foot Single Knife Header

1шт.

2162 Only

1шт.

20

87627727

HYD TUBE,0.75" OD

Hydraulic Knife Drive Pressure, (Sauer Danfoss Motor), Start Serial: 174610

1шт.

Refer to figure note.

1шт.

40.0 Foot Single Knife Header

1шт.

2162 Only

1шт.

20

84139587

HYD TUBE,0.750" OD

Hydraulic Knife Drive Pressure, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Single Knife Header

1шт.

2162 Only

1шт.

20

87627731

HYD TUBE

Hydraulic Knife Drive Pressure, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Single Knife Header

1шт.

2152 Only

1шт.

20

84139591

HYD TUBE,0.750" OD

Hydraulic Knife Drive Pressure, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Single Knife Header

1шт.

2152 Only

1шт.

21

87585393

HYD TUBE,0.75" OD

Hydraulic Knife Drive Return

1шт.

30.0 Foot Single Knife Header

1шт.

2162 Only

1шт.

21

87585395

HYD TUBE,0.75" OD

Hydraulic Knife Drive Return

1шт.

2162 Only

1шт.

35.0 Foot Single Knife Header

1шт.

21

87585397

HYD TUBE,0.75" OD

Hydraulic Knife Drive Return, Serial Range: -174610

1шт.

40.0 Foot Single Knife Header

1шт.

2162 Only

1шт.

21

87627728

HYD TUBE,0.75" OD

Hydraulic Knife Drive Return, (Sauer Danfoss Motor), Start Serial: 174610

1шт.

Refer to figure note.

1шт.

40.0 Foot Single Knife Header

1шт.

2162 Only

1шт.

21

84139590

HYD TUBE,0.750" OD

Hydraulic Knife Drive Return,(Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Single Knife Header

1шт.

2162 Only

1шт.

21

87627732

HYD TUBE,0.75" OD

Hydraulic Knife Drive Return, (Sauer Danfoss Motor), Start Serial: 174610

1шт.

Refer to figure note.

1шт.

40.0 Foot Single Knife Header

1шт.

2152 Only

1шт.

21

84139592

HYD TUBE

Hydraulic Knife Drive Return, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Single Knife Header

1шт.

2152 Only

1шт.

22

347484A1

BRACKET

2шт.

30.0, 35.0, 40.0 and 45.0 Foot Headers

1шт.

2162 Only

1шт.

23

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

Double Knife Header

1шт.

24

87685324

HOSE

Case Drain Flush

1шт.

20.0 Foot Double Knife Header

1шт.

24

87565717

HOSE ASSY.

Case Drain Flush

1шт.

25.0 Foot Double Knife Header

1шт.

24

87565718

HOSE ASSY.

Case Drain Flush

1шт.

30.0 Foot Double Knife Header

1шт.

24

87565719

HOSE ASSY.

Case Drain Flush

1шт.

35.0 Foot Double Knife Header

1шт.

25

87431899

SEAL

Edge Trim

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Single Knife Headers

1шт.

25

87431899

SEAL

Edge Trim

2шт.

40.0 And 45.0 Foot Untimed Double Knife Header

1шт.

27

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

20.0 Foot Double Knife Header

1шт.

28

87699663

STRAP

Hose Holder

1шт.

All 2162 And 2152 45.0 Foot Header

1шт.

29

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

1шт.

All 2162 And 2152 45.0 Foot Header

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL, Edge Trim

1шт.

40.0 And 45.0 Foot Untimed Double Knife Header

1шт.

31

495-11106

WASHER,1", SAE

Use At Couplers

4шт.

All 2162 And 2152 40.0 And 45.0 Foot Headers

1шт.

32

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

33

128995

REDUCER,37 Degree, 1/2" x 3/8" Tube

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

34

129428

TUBE NUT,37 Degree, 3/4"-16, Type B

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

35

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

40.0 Foot Single Knife Header

1шт.

36

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

40.0 Foot Single Knife Header

1шт.

37

87627729

HYD TUBE,0.75" OD

Left Hand Motor To Right Hand Motor

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

38

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

45.0 Foot Header

1шт.

39

87627734

HYD TUBE,0.75" OD

Extension To Right Hand Motor

1шт.

45.0 Foot Header

1шт.

40

87627733

HYD TUBE,0.75" OD

Return From Right Hand Motor, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

2152 Only

1шт.

40

84139593

HYD TUBE

Return From Right Hand Motor, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

2152 Only

1шт.

40

87627730

HYD TUBE

Return From Right Hand Motor, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

2162 40.0 Foot Untimed Double Knife Header

1шт.

2152 45.0 Foot Untimed Double Knife Header

1шт.

40

84139586

HYD TUBE,19.05 mm OD x 5710.50, 160 mm L

Return From Right Hand Motor, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

2162 40.0 Foot Untimed Double Knife Header

1шт.

2152 45.0 Foot Untimed Double Knife Header

1шт.

41

87627740

HOSE

To Right Hand Motor, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

41

84139588

HOSE ASSY.

To Right Hand Motor, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

41

87627739

HOSE

To Right Hand Motor, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

2152 45.0 Foot Untimed Double Knife Header

1шт.

41

84139589

HOSE ASSY.

To Right Hand Motor, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

2152 45.0 Foot Untimed Double Knife Header

1шт.

43

87627731

HYD TUBE

Pressure To Left Hand Motor, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

2152 Only

1шт.

43

84139591

HYD TUBE,0.750" OD

Pressure To Left Hand Motor, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

2152 Only

1шт.

43

87627727

HYD TUBE,0.75" OD

Pressure To Left Hand Motor, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

2162 Only

1шт.

43

84139587

HYD TUBE,0.750" OD

Pressure To Left Hand Motor, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

2162 Only

1шт.

43

87627738

HYD TUBE,0.375" OD

Pressure To Left Hand Motor, (Sauer Danfoss Motor)

1шт.

Refer to figure note.

1шт.

2152 45.0 Foot Untimed Double Knife Header

1шт.

43

84139585

HYD TUBE,0.750" OD

Pressure To Left Hand Motor, (Eaton Char-Lynn Motor)

1шт.

Refer to figure note.

1шт.

2152 45.0 Foot Untimed Double Knife Header

1шт.

44

87627736

HYD TUBE,0.375" OD

Case Drain

1шт.

40.0 Foot Untimed Double Knife Header

1шт.

44

84139596

HYDRAULIC HOSE

Case Drain

1шт.

2152 45.0 Foot Untimed Double Knife Header

1шт.

45

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

For 3/4 And 1/2 Coupler

3шт.

46

264654

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

For 3/8 Coupler

1шт.

47

87499005

STRAP

1шт.

30.0 Foot Header

1шт.

a

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

c

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

d

473371R1

FLANGE NUT

1шт.

f

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

1шт.

g

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
