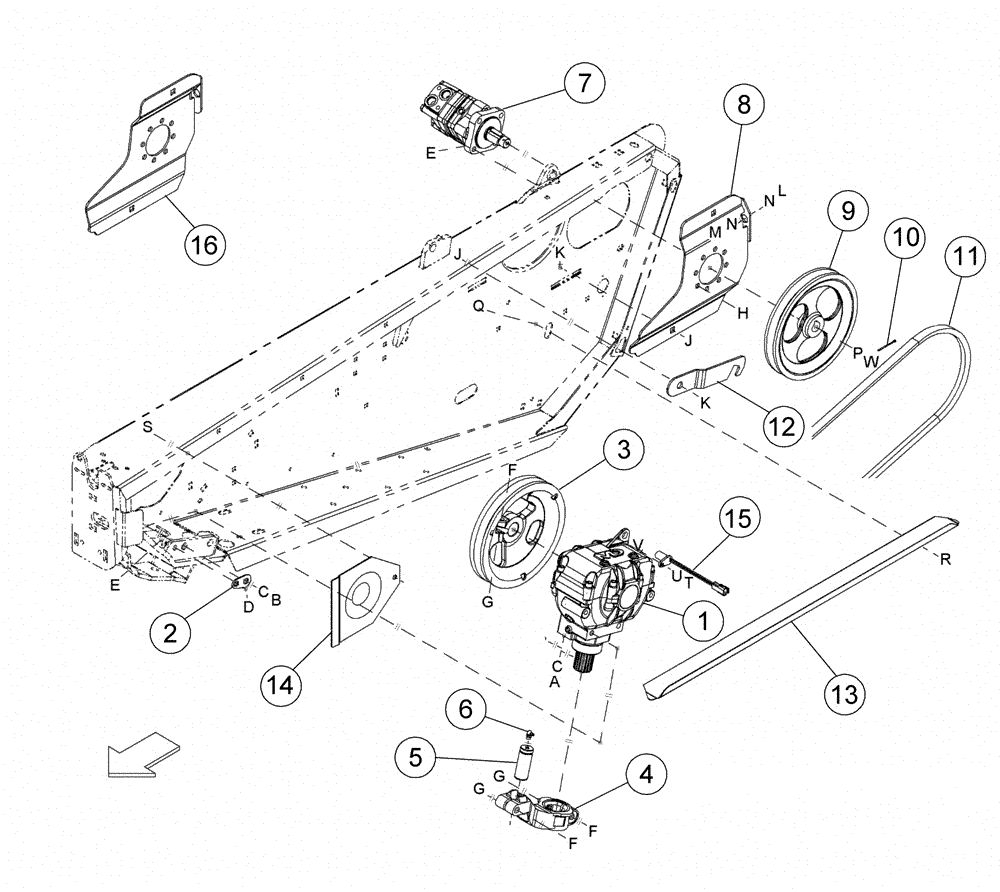

Запчасти Case IH 2152 (09-11) - KNIFE DRIVE - SINGLE SICKLE HEADERS AND UN-TIMED DOUBLE SICKLE HEADERS

1

338670A1

DRIVE

Sickle

1шт.

See Figure 09-14

1шт.

1

338670A1R

REMAN-GEARBOX

Remanufactured, Wobble Box

1шт.

1

338670A1C

CORE-GEARBOX

Return Number

1шт.

2

87561226

PLATE

Knife Drive, Locating Tab

1шт.

3

338585A1

GUIDE

Pulley, Wobble Box, Single Knife

1шт.

4

369994A1

ARM

Output

1шт.

5

345893A1

PIN,31.76mm OD x 81mm L

Sickle Head

1шт.

6

80719

LUBE NIPPLE,1/8" NPT

1шт.

7

87561156

DRIVE UNIT

Drive Motor, Inc. Nut 'W', Sauer Danfoss

1шт.

Refer to figure note. 4 Bolt Mounting

1шт.

87593807

SEAL KIT

Kit, Knife Drive Motor, Sauer Danfoss

1шт.

7

84139583

MOTOR, HYDRAULIC,100CC

Drive Motor, Inc. Nut 'W', Eaton Char-Lynn

1шт.

Refer to figure note. 4 Bolt Mounting

1шт.

84157743

SEAL KIT

Knife Drive Motor, Eaton Char-Lynn

1шт.

8

87589367

BRACKET

Motor Mount, Left Hand, Sauer Danfoss

1шт.

Refer to figure note.

1шт.

8

84139594

BRACKET

Motor Mount, Left Hand, Eaton Char-Lynn

1шт.

Refer to figure note.

1шт.

9

87560334

PULLEY

Sauer Danfoss Motor

1шт.

Refer to figure note.

1шт.

9

NSS

NOT SOLD SEPARAT

PULLEY, Eaton Char-Lynn Motor

1шт.

Refer to figure note.

1шт.

10

86523955

COTTER PIN,1/8" x 2"

1шт.

11

87566356

BELT,22.33 mm W x 3835.00 mm L

Knife Drive

1шт.

12

87560842

BRACKET

Knife Holder

1шт.

13

87561100

GUIDE

Knife Drive Belt, Serial Range: -Y7ZN00300

1шт.

13

87589366

GUIDE

Knife Drive Belt, Start Serial: Y7ZN00301

1шт.

14

338746A1

SHIELD

1шт.

16

87589370

SUPPORT ASSY.

Motor Mount, Right Hand, Sauer Danfoss

1шт.

Un-Timed Double Sickle Headers Only

1шт.

Refer to figure note.

1шт.

16

84139595

SUPPORT ASSY.

Motor Mount, Right Hand, Eaton Char-Lynn

1шт.

Un-Timed Double Sickle Headers Only

1шт.

Refer to figure note.

1шт.

a

87566365

BOLT

1шт.

b

87566364

BOLT

1шт.

c

87566801

WASHER,16.48mm ID x 34.09mm OD x 4.42mm Thk

1шт.

d

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

e

231-4148

NUT,1/2"-13, GB

1шт.

f

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

g

231-41410

NUT,5/8"-11, GB

1шт.

h

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

j

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

k

87323841

FLANGE NUT

1шт.

l

429449A1

SPECIAL BOLT

1шт.

m

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

n

495-11053

WASHER,1/2", SAE

1шт.

p

495-11106

WASHER,1", SAE

1шт.

q

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

r

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

s

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

1шт.

w

49027

SLOTTED NUT

1шт.
