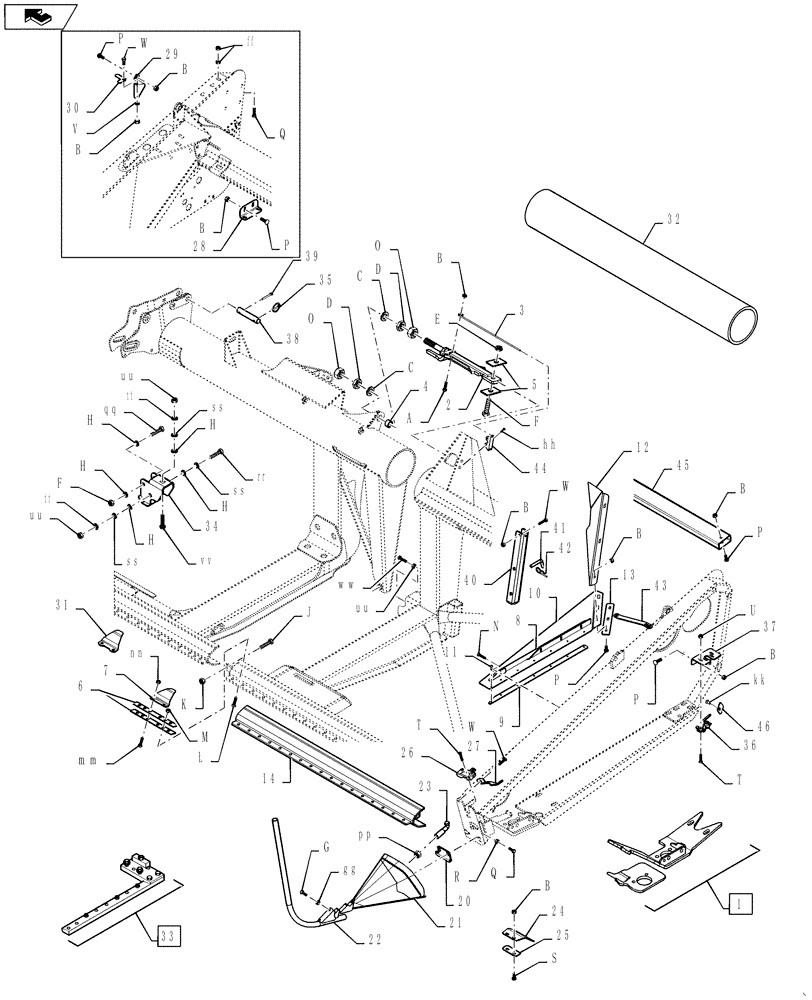

Запчасти Case IH 2152 (09-02) - FRAME AND COMPONENTS - 2162

1

87585354

SERVICE KIT

Wobble Box Mount, Left Hand, Serial Range: -Y7ZN10300

1шт.

1

87589378

SERVICE KIT

Wobble Box Mount, Left Hand, Start Serial: Y7ZN10301

1шт.

2

84518307

BAR

Stop Link, Flex Joint

2шт.

3

87585319

HANDLE

Spring, Flex Joint

2шт.

4

87585931

SPACER,26.56mm ID x 33.46mm OD x 21mm L

Flex Joint

2шт.

5

87585186

BAR

Stop, Flex Joint

4шт.

6

87585187

BAR

Hinge, Flex Joint, Cutterbar

4шт.

7

87585273

COVER ASSY

Hinge, Flex Joint, Cutterbar

2шт.

8

87589368

ANGLE

End Deflector, Left Hand Lower

1шт.

8

87589369

ANGLE

End Deflector, Right Hand Lower

1шт.

9

87560518

BAR

Deflector

2шт.

10

87627743

RUBBER

End, Lower

2шт.

11

86512629

RIVET

14шт.

12

87560967

DEFLECTOR

Left Hand Upper

1шт.

12

87560968

DEFLECTOR

Right Hand Upper

1шт.

13

87560519

BAR

Rear, Deflector Retainer

2шт.

14

87409005

CUTTERBAR,1300mm L

1300 mm (4.3 ft), Weld-On

1шт.

15

87752666

BAR

Cutterbar Splice, 4-Hole, Split Frame Headers (Not Shown)

1шт.

16

84518313

BAR

Cutterbar Splice, 2-Hole, Split Frame Headers (Not Shown)

1шт.

20

87560328

SHIELD

Left Hand, Guard

1шт.

20

87561533

SHIELD

Right Hand, Guard

1шт.

21

87560971

DIVIDER

Right Hand

1шт.

21

87560327

DIVIDER ASSY.

Left Hand

1шт.

22

87560972

DIVIDER

Tube

2шт.

23

87561129

HOOK

Divider Latch

2шт.

24

87561532

SHIELD

Left Hand, Poly Wobble Box Mount

1шт.

24

87561534

SHIELD

Right Hand, Poly Wobble Box Mount

1шт.

25

87561249

RETAINER

Wobble Box Poly Shield

1шт.

26

87561161

LATCH

Left Hand Divider

1шт.

26

87561163

LATCH

Right Hand Divider

1шт.

27

87561162

LATCH

Left Hand, Divider Safety

1шт.

27

87561164

LATCH

Right Hand, Divider Safety

1шт.

28

87560446

ANGLE

Divider Rod Storage

2шт.

29

87560841

BRACKET

Divider Rod Storage

1шт.

30

87561618

DIVIDER

Rod Storage

1шт.

31

87725613

COVER

Cutterbar Splice, Split Frame Headers

1шт.

32

338573A1

TUBE,215.9 mm OD, 1500 mm Length

Frame, Wings Only, Repair Piece, 1500mm Long

1шт.

33

84147689

WOBBLE BOX

, Serial Range: -`0

1шт.

30.0, 35.0, 40.0 and 45.0 Foot Headers

1шт.

34

87725614

CHANNEL

2шт.

35

87725613

COVER

1шт.

36

87560476

LATCH

Stirrup, Left Hand Endshield

1шт.

36

87560475

LATCH

Stirrup, Right Hand Endshield

1шт.

37

87589365

SUPPORT ASSY.

Endshield Latch, Left Hand, Start Serial: Y7ZN10301

1шт.

37

87589377

SUPPORT ASSY.

Endshield Latch, Right Hand, Start Serial: Y7ZN10301

1шт.

38

87655419

HEADLESS PIN

1шт.

39

88182

COTTER PIN,1/4" OD x 2" L

, Serial Range: -Y8ZNxxxxx

1шт.

40

87446867

CHANNEL

Header Support, Serial Range: -Y8ZNxxxxx

1шт.

41

825980C1

PIN

L, Header Stand

1шт.

42

591107R1

COTTER PIN

Header Stand

1шт.

43

87561245

RETAINER

Deflector

2шт.

44

87585317

GUIDE

Spring Handle

2шт.

45

362882A1

TUBE,9035 mm Length

Spare Sickle Storage, Serial Range: -`0

1шт.

30.0 Foot Header

1шт.

45

87585783

TUBE,10560 mm L

Spare Sickle Storage, Serial Range: -`0

1шт.

35.0 Foot Header

1шт.

45

87585784

TUBE,12084 mm L

Spare Sickle Storage, Serial Range: -`0

1шт.

40.0 Foot Header

1шт.

46

87561101

GUIDE

Endshield Latch, Serial Range: -`0

2шт.

European Headers Only

1шт.

a

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

b

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

c

1276478C1

WASHER

1шт.

d

9849633

NUT,1"-8, G5

Model Year 2011 And Prior

1шт.

d

84529699

NUT

Model Year 2012

1шт.

e

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

f

231-41412

NUT,3/4"-10, GB

1шт.

g

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

h

495-81042

WASHER,25/32" x 1 1/2" x .120"

1шт.

j

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

k

231-4148

NUT,1/2"-13, GB

1шт.

l

87585927

HEX SOC SCREW,Flat Hd, CSK, 7/16" - 14 x 1.25", Gr 5

1шт.

m

231-4117

LOCK NUT,7/16"-14, GB

1шт.

n

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

o

87553819

JAM NUT

Model Year 2011 And Prior

1шт.

o

84529700

NUT

Model Year 2012

1шт.

p

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

q

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

r

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

s

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

t

443-13124

SCREW,Cross Flat Hd, 5/16"-18 x 1 1/2"

1шт.

u

87034814

FLANGE NUT,Flg, 5/16"-18

1шт.

v

492-11038

LOCK WASHER,3/8"

1шт.

w

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

x

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

y

492-11038

LOCK WASHER,3/8"

1шт.

z

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

aa

492-11025

LOCK WASHER,1/4"

1шт.

bb

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

dd

495-11028

WASHER,1/4", SAE

1шт.

ee

358047A1

SCREW,Torx, Truss HD, 3/8" - 16 x 1/2", Gr 5

1шт.

ff

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

gg

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

hh

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

jj

231-4145

NUT,5/16"-18, GB

1шт.

kk

87423184

RIVET

1шт.

mm

87533767

BOLT

1шт.

nn

425-107

NUT,7/16"-14, G5

1шт.

pp

219758

JAM NUT,Jam, 3/4"-10, G5

1шт.

qq

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

rr

86507002

BOLT,Hex, 3/4"- 10 x 5 1/2", Gr 5

1шт.

ss

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

1шт.

tt

9847025

LOCK WASHER,21.2mm ID x 33.6mm OD x 6mm Thk

1шт.

uu

425-1012

NUT,3/4"-10, G5

1шт.

vv

433-1232

CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 2", Gr 5

1шт.

ww

87725612

BOLT

1шт.
