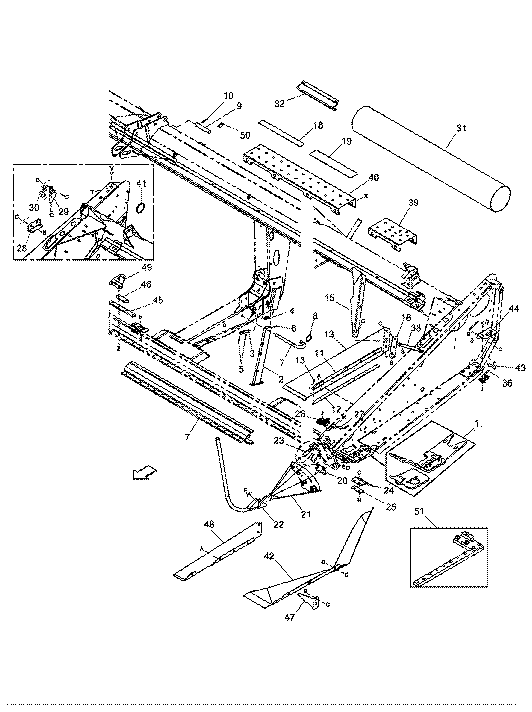

Запчасти Case IH 2152 (09-01A) - FRAME AND COMPONENTS - 2142, 2152

1

87585354

SERVICE KIT

Wobble Box Mount, Left Hand, Serial Range: -Y7ZN00301

1шт.

1

87589378

SERVICE KIT

Wobble Box Mount, Left Hand, Start Serial: Y7ZN00301

1шт.

1

87585355

SERVICE KIT

Wobble Box Mount, Right Hand, Serial Range: -Y7ZN00301`0

1шт.

Double Knife Header

1шт.

1

87589379

SERVICE KIT

Wobble Box Mount, Right Hand, Serial Range: Y7ZN00301-`0

1шт.

Double Knife Header

1шт.

2

87561560

STAND

Header

1шт.

3

87566773

PIN

Header Stand

1шт.

4

87566785

SPRING

1шт.

5

87020817

LOCK PIN,3/16" OD x 1-1/2" L, Slotted

2шт.

6

88005

LOCK PIN,5/16" x 1", Slotted

1шт.

7

87566772

PIN,19.05mm OD

2шт.

8

410679A1

SPECIAL RING

1шт.

9

87655419

HEADLESS PIN

1шт.

10

88182

COTTER PIN,1/4" OD x 2" L

1шт.

11

87589368

ANGLE

End Deflector, Left Hand Lower

1шт.

11

87589369

ANGLE

End Deflector, Right Hand Lower

1шт.

12

87560518

BAR

Deflector

2шт.

13

87560966

DEFLECTOR

End, Rubber, Wide, (240 mm At Front End)

2шт.

13

87627743

RUBBER

End, Narrow, (90 mm At Front End), Serial Range: -`0

2шт.

2152 Only,40.0 And 45.0 Foot Headers

1шт.

14

86512629

RIVET

14шт.

15

87560967

DEFLECTOR

Left Hand Upper, End (Shown)

1шт.

15

87560968

DEFLECTOR

Right Hand Upper, End

1шт.

16

87560519

BAR

Rear, Deflector Retainer

2шт.

17

87409005

CUTTERBAR,1300mm L

Repair Piece, 1300 mm (4.3 ft), Serial Range: -`0

1шт.

30.0, 35.0, 40.0, And 45.0 Foot Headers

1шт.

17

87605711

CUTTERBAR

Repair Piece, 1300 mm (4.3 ft), Serial Range: -`0

1шт.

20.0 And 25.0 Foot Header

1шт.

18

87561573

ANTI-SKID STRIP

, Serial Range: -`0

4шт.

2152 Only,25.0, 30.0, And 35.0 Foot Header

1шт.

18

D55216

PAD,2" x 9"

, Serial Range: -`0

4шт.

2152 Only,20.0, 25.0, 30.0, And 35.0 Foot Headers

1шт.

19

87561585

ANTI-SKID STRIP

, Serial Range: -`0

3шт.

2152 Only,25.0, 30.0, And 35.0 Foot Header

1шт.

20

87560328

SHIELD

Guard, Left Hand

1шт.

20

87561533

SHIELD

Guard, Right Hand

1шт.

21

87560971

DIVIDER

ASSY. Right Hand

1шт.

21

87560327

DIVIDER ASSY.

Left Hand

1шт.

22

87560972

DIVIDER

Tube

2шт.

23

87561129

HOOK

Divider Latch

2шт.

24

87561532

SHIELD

Poly Wobble Box Mount, Left Hand

1шт.

24

87561534

SHIELD

Poly Wobble Box Mount, Right Hand

1шт.

25

87561249

RETAINER

Wobble Box Poly Shield

1шт.

26

87561161

LATCH

Divider, Left Hand, Serial Range: -`0

1шт.

2152 Only

1шт.

26

87561163

LATCH

Divider, Right Hand, Serial Range: -`0

1шт.

2152 Only

1шт.

27

87561162

LATCH

Divider Safety, Left Hand, Serial Range: -`0

1шт.

2152 Only

1шт.

27

87561164

LATCH

Divider Safety, Right Hand, Serial Range: -`0

1шт.

2152 Only

1шт.

28

87560446

ANGLE

Divider Rod Storage

2шт.

29

87560841

BRACKET

Divider Rod Storage

1шт.

30

87561618

DIVIDER

Divider Rod Storage

1шт.

31

338573A1

TUBE,215.9 mm OD, 1500 mm Length

Frame, Repair Piece, 1500mm Long

1шт.

32

87561604

SUPPORT

Endshield Latch

2шт.

33

84147689

WOBBLE BOX

, Serial Range: -`0

1шт.

30.0, 35.0, 40.0, And 45.0 Foot Headers

1шт.

33

84147688

WOBBLE BOX

, Serial Range: -`0

1шт.

20.0 And 25.0 Foot Header

1шт.

34

341005A1

LINCH PIN

1шт.

35

87725613

COVER

Cutterbar Splice - Splice From Header

1шт.

36

87560476

LATCH

Stirrup, Right Hand Endshield

1шт.

36

87560475

LATCH

Stirrup, Left Hand Endshield

1шт.

38

87561245

RETAINER

Rubber Deflector

2шт.

39

87561225

PLATE

Outer, Serial Range: -Y8ZNxxxxx`0

2шт.

20.0 Foot Header

1шт.

40

87561224

PLATE

Inner, Serial Range: -Y8ZNxxxxx`0

2шт.

20.0 Foot Header

1шт.

41

87566775

PLASTIC PLUG

, Serial Range: -Y7ZN00301`0

1шт.

Single Knife Header

1шт.

42

87560353

DEFLECTOR

Left Hand End

1шт.

42

87560969

DEFLECTOR

Right Hand End

1шт.

43

87561101

GUIDE

Endshield Latch, Serial Range: -`0

2шт.

European Headers Only

1шт.

44

87589365

SUPPORT ASSY.

Endshield Latch, Left Hand, Start Serial: Y7ZN00301

1шт.

44

87589377

SUPPORT ASSY.

Endshield Latch, Right Hand, Start Serial: Y7ZN00301

1шт.

45

87752666

BAR

BAR Cutterbar Splice, 4-Hole-Split Frame Headers

1шт.

46

84518313

BAR

BAR Cutterbar Splice, 2-Hole-Split Frame Headers

1шт.

47

87605751

SUPPORT

Steel Deflector, Left Hand

1шт.

47

87605752

SUPPORT

Steel Deflector, Right Hand

1шт.

48

87752683

DEFLECTOR

Angle, Left Hand, Serial Range: -`0

1шт.

2142 Only

1шт.

48

87752684

DEFLECTOR

Angle, Right Hand, Serial Range: -`0

1шт.

2142 Only

1шт.

49

87585273

COVER ASSY

Cutterbar Splice, Split Frame Header

1шт.

51

84147689

WOBBLE BOX

Jig, 30.0, 35.0, And 40.0 Foot Headers

1шт.

a

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

b

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

c

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

d

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

e

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

f

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

g

219758

JAM NUT,Jam, 3/4"-10, G5

1шт.

h

86511946

SCREW,Phillips Drive, Pan HD, 3/8" - 16 x 3/4"

1шт.

j

443-13124

SCREW,Cross Flat Hd, 5/16"-18 x 1 1/2"

1шт.

k

87034814

FLANGE NUT,Flg, 5/16"-18

1шт.

l

492-11038

LOCK WASHER,3/8"

1шт.

m

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

n

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

p

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

q

492-11025

LOCK WASHER,1/4"

1шт.

r

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

s

495-11028

WASHER,1/4", SAE

1шт.

t

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2142

1шт.

t

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2152

1шт.

u

358047A1

SCREW,Torx, Truss HD, 3/8" - 16 x 1/2", Gr 5

1шт.

v

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

w

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

x

87566780

SCREW,Hex Washer, 5/16" x 1"

1шт.

y

87423184

RIVET

1шт.

z

424-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 2

, Serial Range: -`0

1шт.

20.0, 25.0, 30.0, And 35.0 Foot Headers

1шт.

z

433-732

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

, Serial Range: -`0

1шт.

40.0 Foot Header

1шт.

aa

425-107

NUT,7/16"-14, G5

1шт.

bb

434-1016

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1", Gr 5

1шт.

dd

129-390

JAM NUT,Jam, 5/8"-11, G5

1шт.

ee

280245

BOLT,Hex, 3/4" - 16 x 1 1/2", Gr 5, Full Thd

, Serial Range: -`0

1шт.

2142 Only

1шт.

ff

9847025

LOCK WASHER,21.2mm ID x 33.6mm OD x 6mm Thk

, Serial Range: -`0

1шт.

2142 Only

1шт.

gg

495-81042

WASHER,25/32" x 1 1/2" x .120"

, Serial Range: -`0

1шт.

2142 Only

1шт.

hh

219758

JAM NUT,Jam, 3/4"-10, G5

, Serial Range: -`0

1шт.

2152 Only

1шт.
