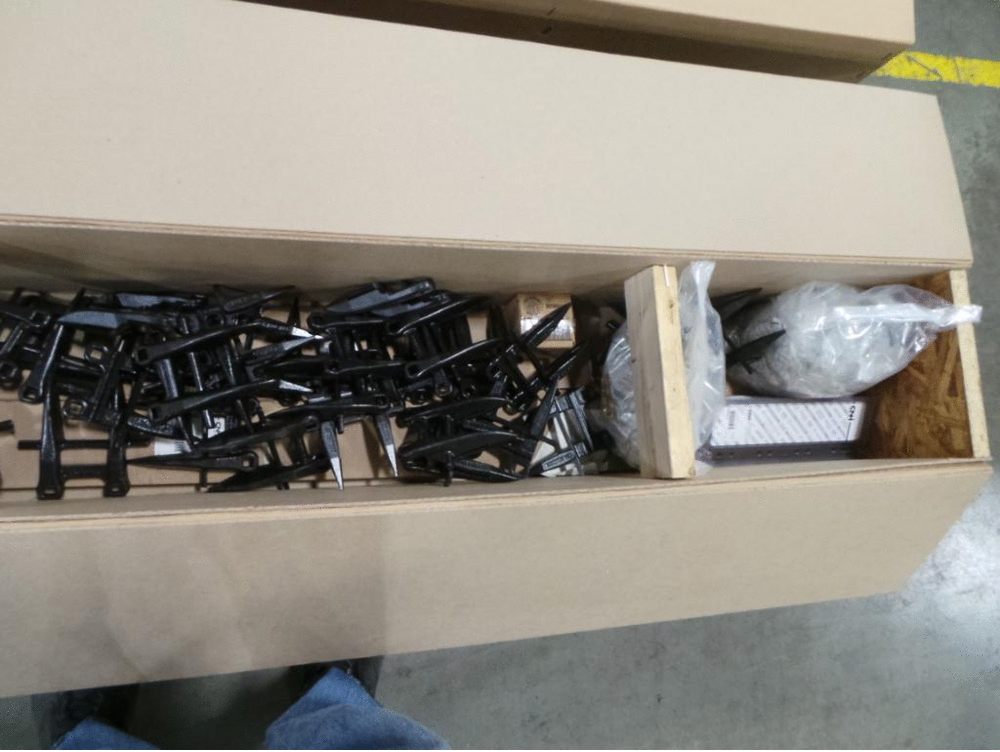

Запчасти Case IH 2152 (09-10[05]) - KIT CUTTERBAR REBUILD SK FINE 35FT

1

48067875

KIT

Includes 2 - 18

1шт.

2

B92973

KIT

Splic 2 1/8 inch

3шт.

3

87725596

KNIFE ASSY

Fine MD

1шт.

4

87458210

KNIFE SECTION

Fine MD

2шт.

5

87458208

KNIFE SECTION

Fine Sec MD

1шт.

6

88703

BOLT,Hex, 3/8" x 5/8", Gr 5, Full Thd

33шт.

7

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

33шт.

8

84399893

KIT

Hold Down MD

2шт.

9

87533769

BOLT

132шт.

10

87533767

BOLT

8шт.

11

47687887

GUARD

Sickle MD

65шт.

12

47709127

GUARD

Sickle MD

3шт.

13

47709128

GUARD

Sickle RH MD

1шт.

14

47709129

GUARD

Sickle LH MD

1шт.

15

1327448C1

KNIFE SECTION

20шт.

16

87561157

KNIFE HEAD

LH

1шт.

17

86507779

BOLT AND NUT,Truss HD, #12 - 24 x 1-1/16", Gr 8

1шт.

18

280717

NUT,7/16"-14, G5

140шт.
