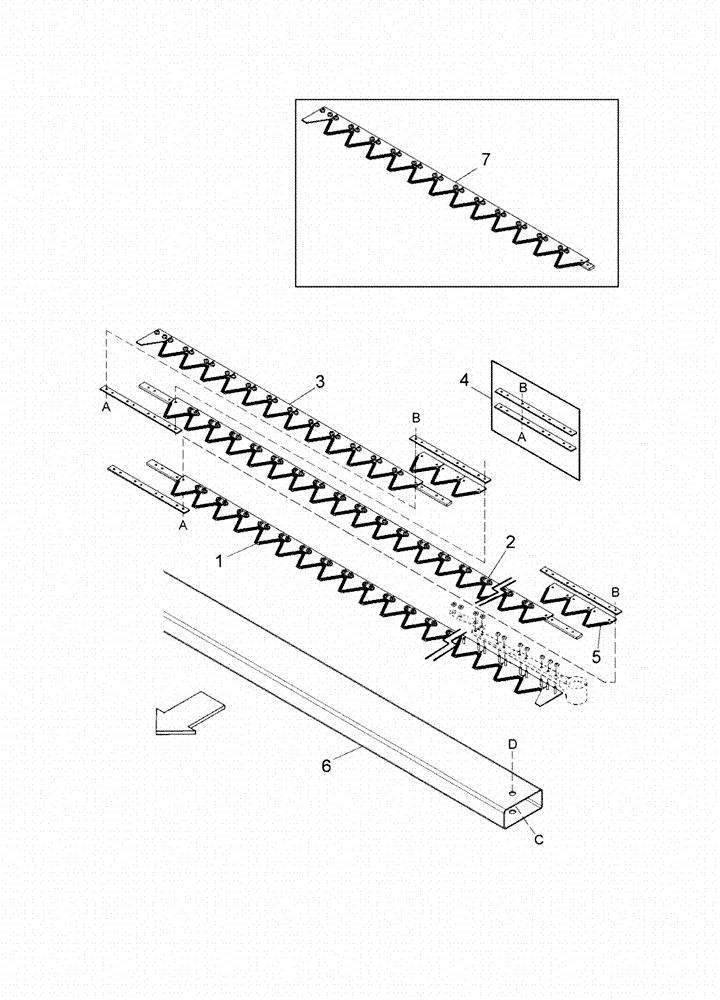

Запчасти Case IH 2152 (09-09) - SEGMENTED SICKLES - SINGLE SICKLE HEADERS

1

87458208

KNIFE SECTION

SECTION, KNIFE Left Head Segment (Fine)

1шт.

1

87458220

KNIFE SECTION

SECTION, KNIFE Left Head Segment (Coarse)

1шт.

2

87458210

KNIFE SECTION

SECTION, KNIFE Center Segment (Fine)

1шт.

20.0 And 25.0 Foot Header

1шт.

2

87458222

KNIFE SECTION

SECTION, KNIFE Center Segment (Coarse)

1шт.

20.0 And 25.0 Foot Header

1шт.

2

87458210

KNIFE SECTION

SECTION, KNIFE Center Segment (Fine)

2шт.

30.0 And 35.0 Foot Header

1шт.

2

87458222

KNIFE SECTION

SECTION, KNIFE Center Segment (Coarse)

2шт.

30.0 And 35.0 Foot Header

1шт.

2

87458210

KNIFE SECTION

SECTION, KNIFE Center Segment (Fine)

3шт.

40.0 Foot Header

1шт.

2

87458222

KNIFE SECTION

SECTION, KNIFE Center Segment (Coarse)

3шт.

40.0 Foot Header

1шт.

3

87757105

KNIFE SECTION

KNIFE SECTION Right, Tail Segment (Fine)

1шт.

20.0 Foot Header

1шт.

3

87470116

KNIFE SECTION

KNIFE SECTION Right, Tail Segment (Coarse)

1шт.

20.0 Foot Header

1шт.

3

87458219

KNIFE SECTION

SECTION, KNIFE Right, Tail Segment (Fine)

1шт.

25.0 Foot Header

1шт.

3

87458227

KNIFE SECTION

SECTION, KNIFE Right, Tail Segment (Coarse)

1шт.

25.0 Foot Header

1шт.

3

87458214

KNIFE SECTION

SECTION, KNIFE Right, Tail Segment (Fine)

1шт.

30.0 Foot Header

1шт.

3

87458225

KNIFE SECTION

SECTION, KNIFE Right, Tail Segment (Coarse)

1шт.

30.0 Foot Header

1шт.

3

87725596

KNIFE ASSY

Right, Tail Segment (Fine)

1шт.

35.0 Foot Header

1шт.

3

87685333

KNIFE ASSY

Right, Tail Segment (Coarse)

1шт.

35.0 Foot Header

1шт.

3

87725590

KNIFE ASSY

Right, Tail Segment (Fine)

1шт.

40.0 Foot Header

1шт.

3

87699654

KNIFE

Right, Tail Segment (Coarse)

1шт.

40.0 Foot Header

1шт.

3

87699654

KNIFE

1шт.

4

87458228

KNIFE SECTION

SECTION, KNIFE MacDon Splice Kit

2шт.

20.0 And 25.0 Foot Header

1шт.

4

87458228

KNIFE SECTION

SECTION, KNIFE MacDon Splice Kit

3шт.

30.0 And 35.0 Foot Header

1шт.

4

87458228

KNIFE SECTION

SECTION, KNIFE MacDon Splice Kit

4шт.

40.0 Foot Header

1шт.

5

84342590

KNIFE SECTION

(Fine) (Includes 10 of 1327448C1)

6шт.

20.0 And 25.0 Foot Header

1шт.

5

84342601

KIT

(Coarse) (Includes 10 of 87422066)

6шт.

20.0 And 25.0 Foot Header

1шт.

5

84342590

KNIFE SECTION

(Fine) (Includes 10 of 1327448C1)

9шт.

30.0 And 35.0 Foot Header

1шт.

5

84342601

KIT

(Coarse) (Includes 10 of 87422066)

9шт.

30.0 And 35.0 Foot Header

1шт.

5

84342590

KNIFE SECTION

(Fine) (Includes 10 of 1327448C1)

12шт.

40.0 Foot Header

1шт.

5

84342601

KIT

(Coarse) (Includes 10 of 87422066)

12шт.

40.0 Foot Header

1шт.

5

84342603

KIT

(Fine) (Includes 25 of 87422350)

1шт.

5

84342589

KIT

(Fine) (Includes 100 of 1327448C1)

1шт.

5

84331101

BLADE

(Coarse) (Includes 25 of 87422066)

1шт.

5

84342600

KIT

(Coarse) (Includes 100 of 87458207)

1шт.

6

87605693

TUBE,5988 mm L

Spare Sickle Storage

1шт.

20.0 Foot Header

1шт.

6

362881A1

TUBE,7510 mm Length

Spare Sickle Storage

1шт.

25.0 Foot Header

1шт.

6

362882A1

TUBE,9035 mm Length

Spare Sickle Storage

1шт.

30.0 Foot Header

1шт.

6

87585783

TUBE,10560 mm L

Spare Sickle Storage

1шт.

35.0 Foot Header

1шт.

6

87585784

TUBE,12084 mm L

Spare Sickle Storage

1шт.

40.0 Foot Header

1шт.

a

87458235

HEX SOC SCREW,FLAT, #12 - 24 x 0.812", Gr 8

90 Degree CSK SKT HD, #12-24 NC x 0.812"

1шт.

b

1954816C1

LOCK NUT

CSK, Center Lock, #12-24 NC

1шт.

c

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

d

473371R1

FLANGE NUT

Smoot Flange, 3/8 NC Distorted Thread

1шт.

7

87585409

CUTTER

Two Piece Knife Option, Fine, See Figure Note

1шт.

35.0 Foot Header

1шт.

7

87585410

CUTTER

Two Piece Knife Option, Coarse, See Figure Note

1шт.

35.0 Foot Header

1шт.

7

87585411

CUTTER

Two Piece Knife Option, Fine, See Figure Note

1шт.

40.0 Foot Header

1шт.

7

87585412

CUTTER

Two Piece Knife Option, Coarse, See Figure Note

1шт.

40.0 Foot Header

1шт.
