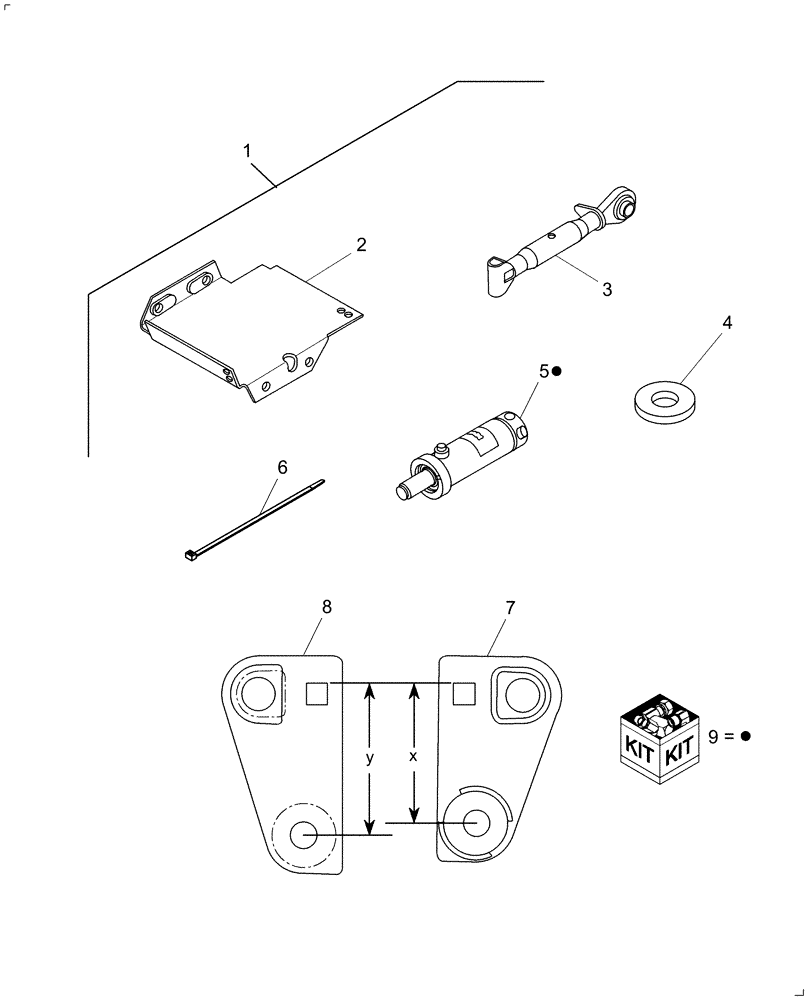

Запчасти Case IH 2152 (09-71) - KIT, TOP LINK, CAB INTERFERENCE PREVENTION, SEE FIGURE NOTE

1

84228349

KIT

Top Link, Hydraulic, Modifies Figure 09-60

1шт.

1

84228346

KIT

Top Link, Mechanical, Modifies Figure 09-59

1шт.

2

84227070

COVER PLATE

1шт.

3

84232850

JOINT

Mechanical Kit Only

1шт.

4

84227075

WASHER

19.8 x 50 x 6.0

1шт.

5

84227076

HYDRAULIC CYLINDER

Hydraulic Kit Only

1шт.

6

702093C1

CABLE TIE

CABLE STRAP

1шт.

7

84227071

BRACKET

LH, X= 3-15/16" [100mm], See Figure note

1шт.

7

84227073

BRACKET

RH, X= 3-15/16" [100mm], See figure note

1шт.

8

84227072

BRACKET

LH, Y= 4-7/16" [110mm], See Figure Note

1шт.

8

84227074

BRACKET

RH, Y= 4-7/16" [110mm], See Figure note

1шт.

9

87597508

SEAL KIT

For ref 5

1шт.
