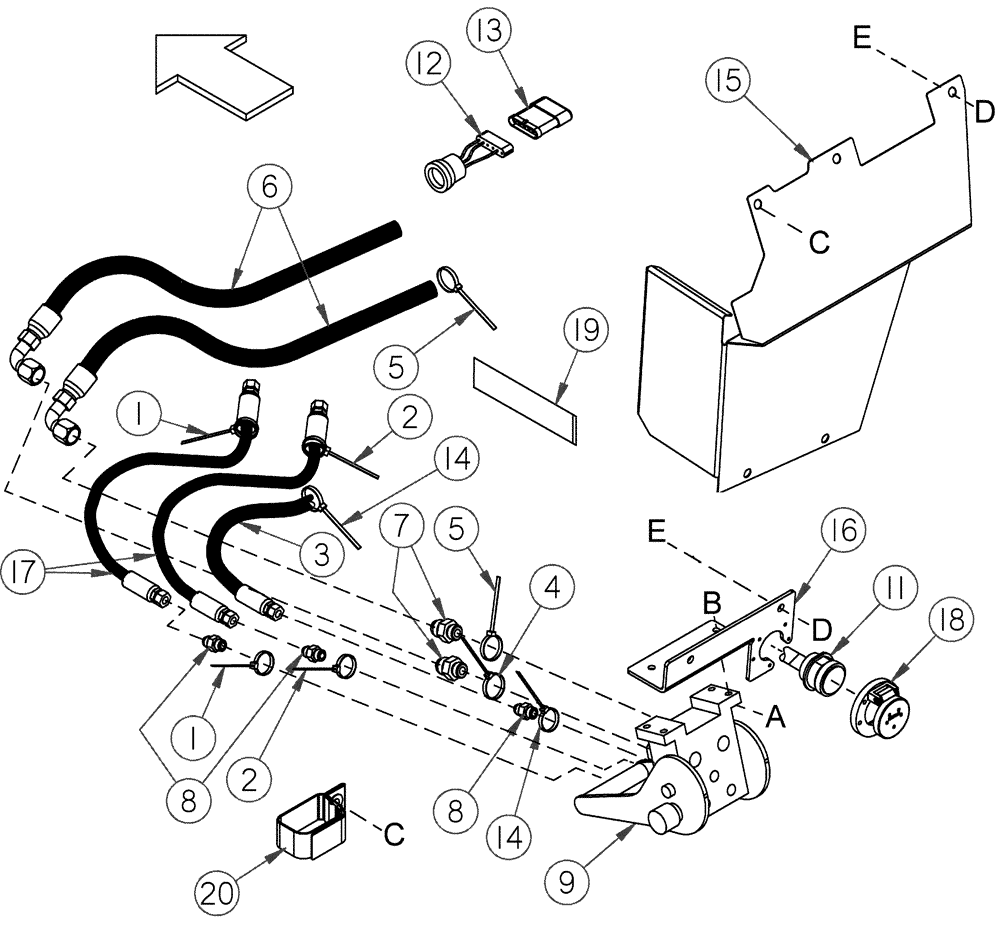

Запчасти Case IH 2152 (09-70) - CASE 10, 20, AND 88 SERIES ADAPTER HYDRAULIC/ELECTRICAL COMPLETION

1

87407798

FASTENER

Cable Tie, Red

2шт.

2

87407803

FASTENER

Cable Tie, Green

2шт.

3

87597449

HOSE ASSY.

Reel Lift

1шт.

4

352622A1

FASTENER

Cable Tie, White

1шт.

5

87407797

FASTENER

Cable Tie, Yellow

2шт.

6

87597448

HOSE ASSY.

Reel Drive Circuit

2шт.

7

87407792

FITTING

2шт.

8

87422069

FITTING

3шт.

9

87408322

COUPLING

Multi Coupler; Complete Kit Assy; Incl All #9

1шт.

9

87352717

COVER ASSY

Multi Couplers; Cover

1шт.

9

87352718

LATCH

Button Multi Couplers; Handle

1шт.

9

87589352

COUPLING

1/4 Inch, Multi Couplers

3шт.

9

87589353

COUPLING

3/8 Inch, Multi Couplers

2шт.

11

87597443

WIRE HARNESS

1шт.

12

87438389

HARNESS

Header End

1шт.

13

87408842

RESISTOR

Header Recognition

1шт.

14

1336064C1

CABLE TIE

CABLE STRAP Cable Tie, Black

2шт.

15

87597372

COVER ASSY

Couplers

1шт.

16

87597530

SUPPORT ASSY.

Multi Coupler

1шт.

17

87597447

HOSE ASSY.

Reel Fore-Aft Circuit

2шт.

18

87597373

COVER ASSY

Electrical Harness

1шт.

19

87383361

STRAP

4шт.

20

87498989

STRAP

1шт.

a

461-33112

HEX SOC SCREW,5/16" - 18 x 3/4"

1шт.

b

87034814

FLANGE NUT,Flg, 5/16"-18

1шт.

c

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

d

255918

BOLT,Hex Serr, 3/8" - 16 x 3/4", 5SPL, Full Thd

1шт.

e

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.
