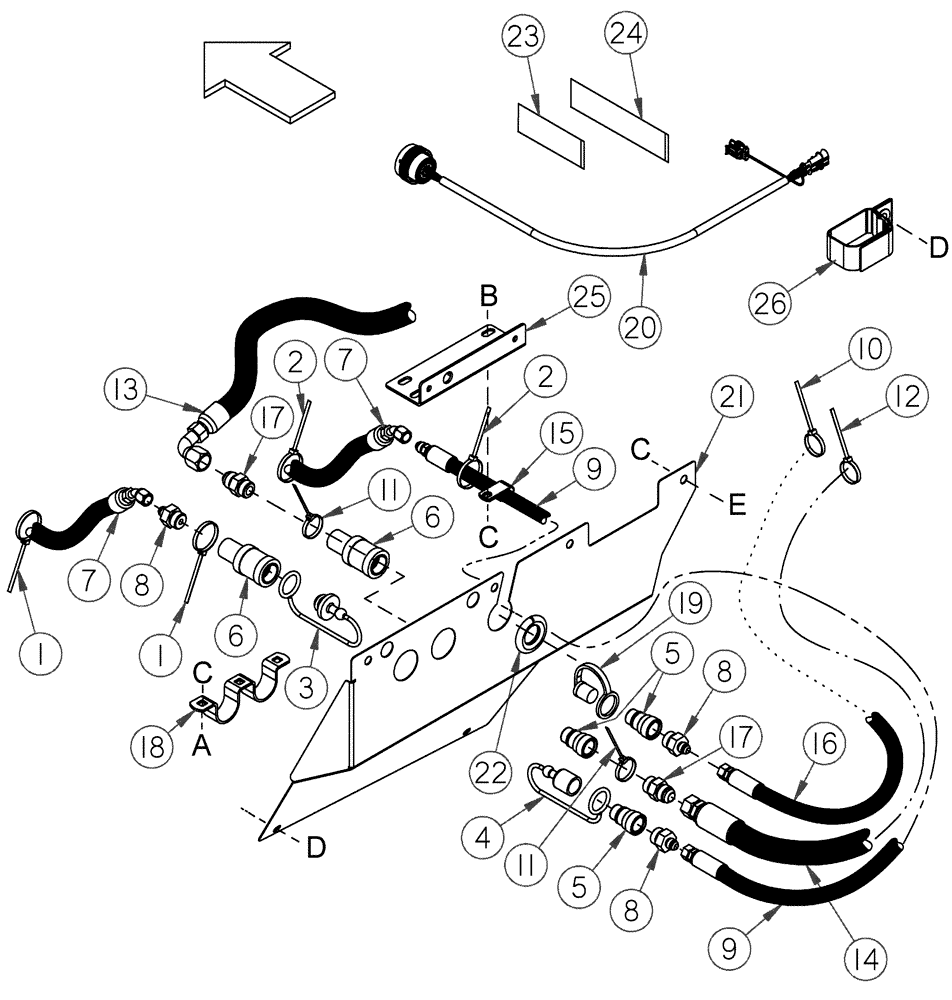

Запчасти Case IH 2152 (09-68) - CASE 2X00 ADAPTER HYDRAULIC/ELECTRICAL COMPLETION

1

87407798

FASTENER

Cable Tie, Red

2шт.

2

87407803

FASTENER

Cable Tie, Green

2шт.

3

370003A1

CAP

1шт.

4

370004A1

CAP

1шт.

5

1272399C2

QUICK MALE COUPLING

Male

3шт.

6

1282338C91

COUPLING, QUICK, FEM

2шт.

7

87597447

HOSE ASSY.

Reel Fore-Aft Circuit

2шт.

8

352667A1

FITTING

3шт.

9

87597452

HOSE ASSY.

1шт.

10

1336064C1

CABLE TIE

CABLE STRAP Cable Tie, Black

1шт.

11

352622A1

FASTENER

Cable Tie, White

2шт.

12

87407797

FASTENER

Cable Tie, Yellow

1шт.

13

87597448

HOSE ASSY.

Reel Drive

1шт.

14

87597453

HOSE ASSY.

Reel Drive

1шт.

15

344825A1

SUPPORT

1шт.

16

87597450

HOSE ASSY.

Reel Lift

1шт.

17

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

2шт.

18

352634A1

HOLDER

Couplers

1шт.

19

131610A1

PLUG

Dust

1шт.

20

87597442

WIRE HARNESS

1шт.

21

87597374

COVER ASSY

Couplers

1шт.

22

87597493

MOLDING

1шт.

23

87383360

STRAP

4шт.

24

87383361

STRAP

4шт.

25

87597533

SUPPORT ASSY.

Couplers

1шт.

26

87498989

STRAP

Velcro, Hanging

1шт.

a

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

b

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

c

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

e

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.
