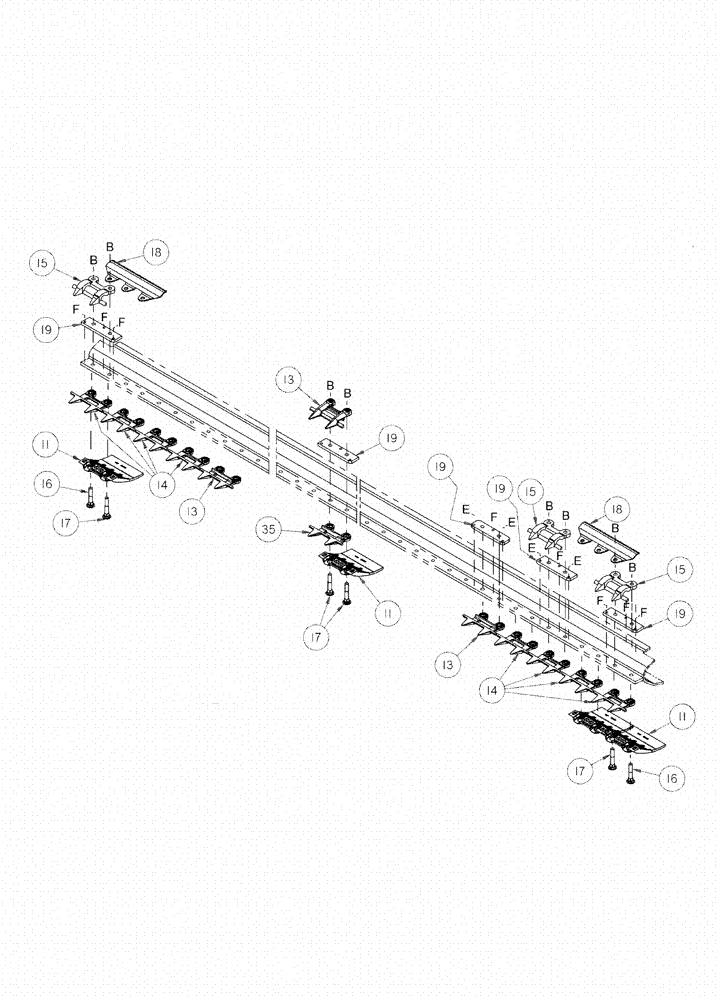

Запчасти Case IH 2152 (09-08) - SICKLE AND GUARDS - DOUBLE SICKLE HEADERS - FORGED STUB GUARDS, IF EQUIPPED

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar

40шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar

50шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar

60шт.

30.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar

70шт.

35.0 Foot Header

1шт.

11

87532221

WEAR PLATE

Molded Plastic, Cutterbar

80шт.

40.0 Foot Header

1шт.

2152 And 2162 Only

1шт.

13

87422042

GUARD

Sickle, Stub Guard

32шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

13

87422042

GUARD

Sickle, Stub Guard

42шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

13

87422042

GUARD

Sickle, Stub Guard

52шт.

30.0 Foot Header

1шт.

13

87422042

GUARD

Sickle, Stub Guard

62шт.

35.0 Foot Header

1шт.

13

87422042

GUARD

Sickle, Stub Guard

72шт.

40.0 Foot Header

1шт.

2152 And 2162 Only

1шт.

14

87422043

GUARD

Sickle, Stub Guard

8шт.

15

87407813

GUIDE

Hold Down, Forged Stub Guards

39шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

15

87407813

GUIDE

Hold Down, Forged Stub Guards

49шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

15

87407813

GUIDE

Hold Down, Forged Stub Guards

59шт.

30.0 Foot Header

1шт.

15

87407813

GUIDE

Hold Down, Forged Stub Guards

69шт.

35.0 Foot Header

1шт.

15

87407813

GUIDE

Hold Down, Forged Stub Guards

79шт.

40.0 Foot Header

1шт.

2152 And 2162 Only

1шт.

16

87533768

BOLT

72шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

16

87533768

BOLT

92шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

16

87533768

BOLT

112шт.

30.0 Foot Header

1шт.

16

87533768

BOLT

132шт.

35.0 Foot Header

1шт.

16

87533768

BOLT

152шт.

40.0 Foot Header

1шт.

2152 And 2162 Only

1шт.

17

84290803

SPECIAL BOLT

Carriage Bolt, Special, 7/16" x 2-3/4"

8шт.

18

87561243

RETAINER

Left Hand and Right Hand End

2шт.

19

370877A1

BAR

Adjuster

40шт.

2152 Only

1шт.

20.0 Foot Header

1шт.

19

370877A1

BAR

Adjuster

50шт.

2142 And 2152 Only

1шт.

25.0 Foot Header

1шт.

19

370877A1

BAR

Adjuster

60шт.

30.0 Foot Header

1шт.

19

370877A1

BAR

Adjuster

70шт.

35.0 Foot Header

1шт.

19

370877A1

BAR

Adjuster

80шт.

40.0 Foot Header

1шт.

2152 And 2162 Only

1шт.

35

87561544

GUARD ASSY.

Stub, Center, Special Offset

1шт.

b

280717

NUT,7/16"-14, G5

1шт.

e

113-2299

BOLT,Hex, 3/8" - 16 x 3/4", SST

1шт.

f

113-2295

BOLT,Hex, 3/8" - 16 x 1", SST

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

Available Through Whole Goods Only, Order B4865

1шт.

20.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

Available Through Whole Goods Only, Order B4838

1шт.

25.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

30.0 Foot Header

1шт.

Available Through Whole Goods Only, Order B4839

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

Available Through Whole Goods Only, Order B4840

1шт.

35.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Cutterbar Poly

1шт.

40.0 Foot Header

1шт.

Available Through Whole Goods Only, Order B4841

1шт.

NSS

NOT SOLD SEPARAT

KIT, Stub Guard Conversion

1шт.

Available Through Whole Goods Only, Order B5010

1шт.

20.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Stub Guard Conversion

1шт.

Available Through Whole Goods Only, Order B5011

1шт.

25.0 Foot Header

1шт.

NSS

NOT SOLD SEPARAT

KIT, Stub Guard Conversion

1шт.

30.0 Foot Header

1шт.

Available Through Whole Goods Only, Order B5012

1шт.

NSS

NOT SOLD SEPARAT

KIT, Stub Guard Conversion

1шт.

35.0 Foot Header

1шт.

Available Through Whole Goods Only, Order B5013

1шт.
