Запчасти Case IH 2142 (09-64) - ADAPTER DECALS

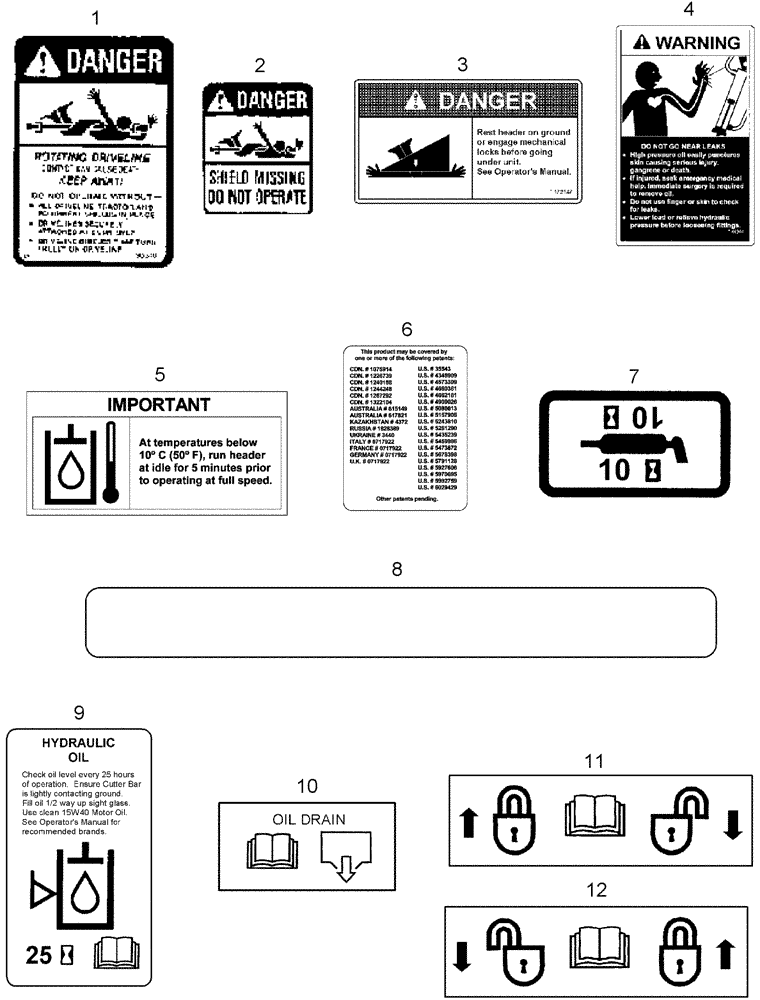

Схема запчастей Case IH 2142 - (09-64) - ADAPTER DECALS
11
6
10
9
8
4
3
2
7
5
1
12

Артикул

Название

Примечание

Количество

1

80672C1

DECAL

Danger, Rotating Driveline

1шт.

2

1326528C1

DECAL

Danger, Driveline Shield Missing

1шт.

3

87589376

DECAL

Danger, Header Hazard, Serial Range: -Y9ZN00701

1шт.

4

338848A1

DECAL

Warning, Hydraulic Oil Pressure, Start Serial: Y9ZN00701

1шт.

5

87597420

DECAL

Important, Oil Operating Temperature

1шт.

6

126621A1

DECAL

Patent Number

1шт.

7

1281423C1

DECAL

Grease, 10 Hour

1шт.

7

1281424C1

DECAL

Grease, 50 Hour

1шт.

7

87498999

DECAL

Grease, 100 Hour

1шт.

8

87561573

ANTI-SKID STRIP

Anti-Slip Strip

1шт.

9

84495799

DECAL

Adapter Hydraulic Oil

1шт.

10

87597424

DECAL

Adapter Oil Drain

1шт.

11

87597422

DECAL

Adapter Float Lock, Left Hand

1шт.

12

87597423

DECAL

Adapter Float Lock, Right Hand

1шт.

Выбрано товаров: 14
