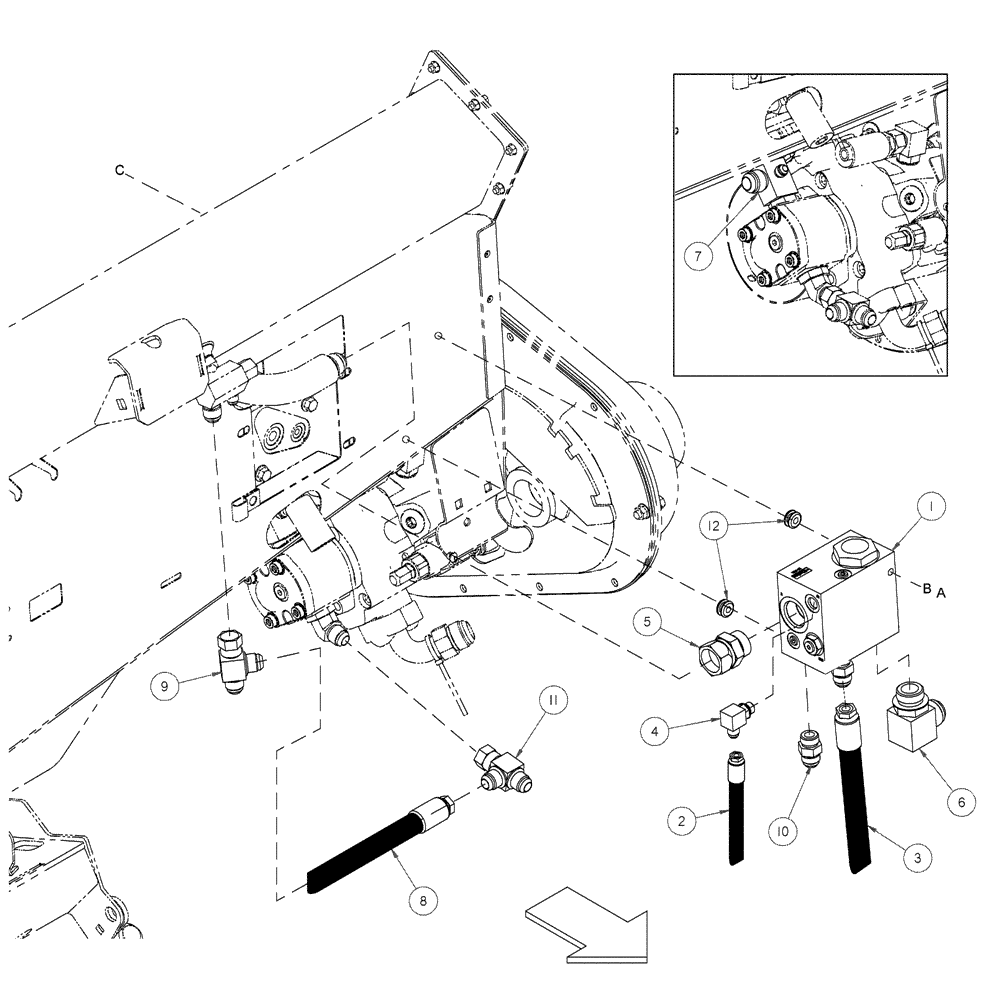

Запчасти Case IH 2142 (09-63) - KNIFE REVERSER KIT

1

87714770

VALVE

Knife Reverser

1шт.

2

87714239

HOSE ASSY.

Hydraulic

1шт.

3

87714240

HOSE ASSY.

Hydraulic

1шт.

4

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Hydraulic

1шт.

5

87725611

HYD CONNECTOR

Hydraulic, Inc. O-Ring

1шт.

6

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

1шт.

7

87714765

FITTING

Elbow 90

1шт.

8

87714241

HOSE ASSY.

Hydraulic

1шт.

9

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

Hydraulic

1шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

1шт.

11

87714766

FITTING

Hydraulic Tee Check

1шт.

12

87499000

BRACKET

2шт.

13

87673218

DIA KIT, TRACTOR

Knife Reverser (Not Shown)

1шт.

a

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

b

495-11034

WASHER,5/16", SAE

1шт.

c

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.
