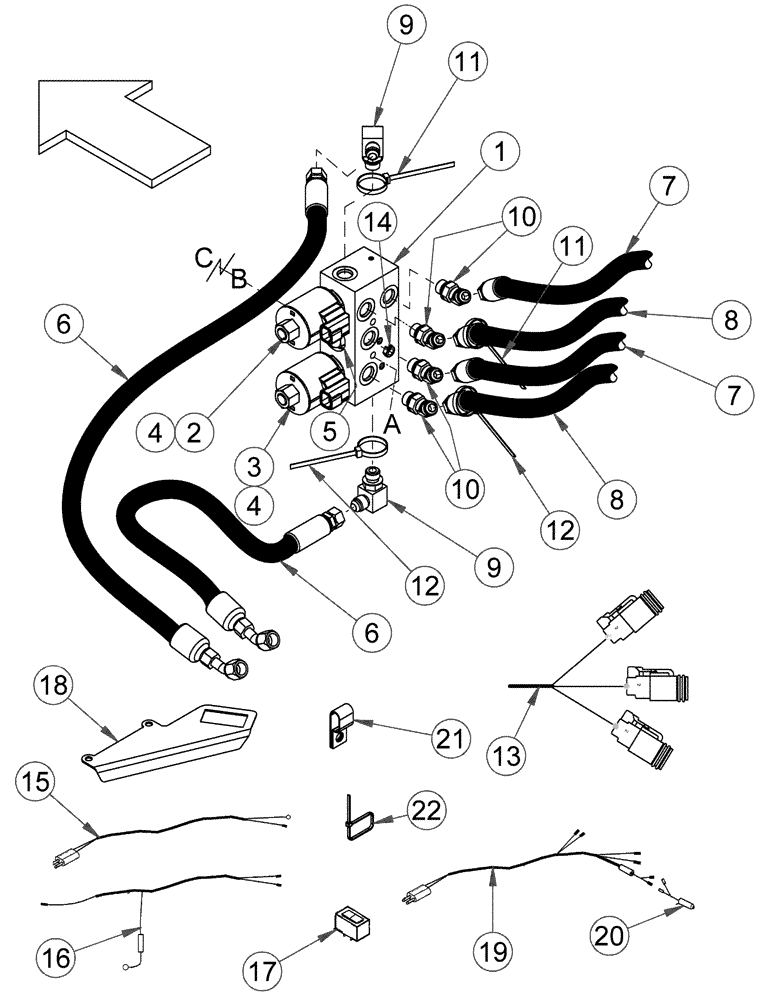

Запчасти Case IH 2142 (09-62) - ADAPTER HYDRAULIC SELECTOR VALVE KIT - HEADER TILT/REEL FORE - AFT

NSS

NOT SOLD SEPARAT

KIT, Electric Fore-Aft/Header Tilt: Case 23xx Combine

1шт.

Available Through Whole Goods Only, Order B4432

1шт.

NSS

NOT SOLD SEPARAT

KIT, Electric Fore-Aft/Header Tilt: CR/CFX/AFX Without Integral Control

1шт.

Available Through Whole Goods Only, Order B4433

1шт.

1

87627804

SERVICE KIT

Selector Valve, Inc. 2 - 5, Serial Range: -Y7ZN00301

1шт.

87627795

SEAL KIT

Selector Valve

1шт.

1

87627076

VALVE BLOCK

Selector, Inc. 2 - 5, Start Serial: Y7ZN00301

1шт.

2

87461423

VALVE

2-Way Normally Closed, Header Tilt

1шт.

3

87627793

CARTRIDGE

2-Way Normally Open, Reel Fore/Aft

2шт.

4

87461425

COIL

Valve, CL1

1шт.

5

87627794

CARTRIDGE

PC1

2шт.

6

87597446

HOSE ASSY.

Valve "P" Ports to Combine Coupler Assembly

2шт.

7

810205C1

HYDRAULIC HOSE,6.35mm ID x 1820mm L, SAE 100R17

Valve to Center Link Tilt Cylinder

2шт.

8

87597446

HOSE ASSY.

Valve To Reel Fore-Aft Circuits At Header Coupler, Not Included In Kit

2шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

10

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Inc. O-Ring

4шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

87407803

FASTENER

Cable Tie, Green

1шт.

12

87407798

FASTENER

Cable Tie, Red

1шт.

13

87461369

WIRE HARNESS

Selector Valve

1шт.

14

87499001

CAP

1шт.

15

87407605

HARNESS

Fore-Aft/Header Tilt, From Header to 31 Pin Connector

1шт.

16

87407607

HARNESS

Fore-Aft/Header Tilt, From 31 Pin Connector to Reference 17.

1шт.

17

87407560

SWITCH

Mounted Inside Combine

1шт.

18

87498990

BRACKET, SUPPORTING

Switch Mount

1шт.

19

87414732

WIRE HARNESS

Fore-Aft/Header Tilt, From Reference 13 To Combine Cab

1шт.

20

87414733

WIRE HARNESS

Cigarette Lighter Adapter

1шт.

21

87414723

CLAMP

Holder Harness

1шт.

22

702093C1

CABLE TIE

CABLE STRAP

12шт.

a

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1шт.

b

230-4244

LOCK NUT,1/4"-20, GA

1шт.

c

9626558

FLANGE NUT,Flg, 1/4"-20

1шт.
