Запчасти Case IH 2142 (09-51) - ADAPTER FRAME AND COMPONENTS

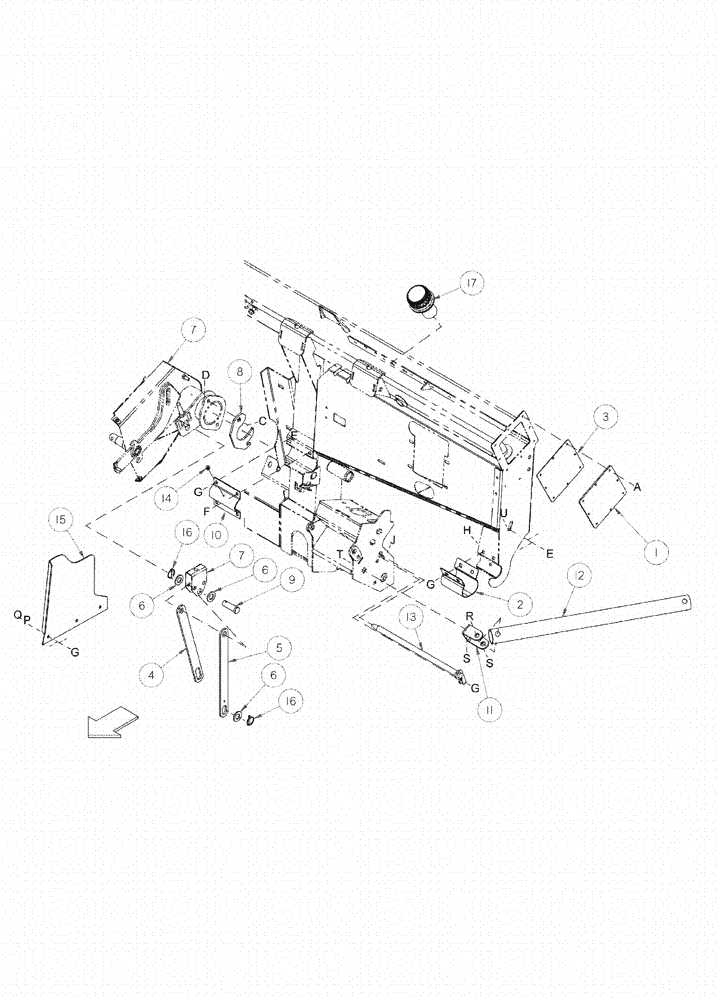

Схема запчастей Case IH 2142 - (09-51) - ADAPTER FRAME AND COMPONENTS
g
8
12
10
7
14
6
p
q
16
t
e
d
4
11
g
s
c
7
16
u
5
3
2
j
a
r
f
6
s
17
g
13
g
9
h
5
6

Артикул

Название

Примечание

Количество

1

87560888

COVER

Frame, Left and Right Hand, Serial Range: -Y8ZN00501

2шт.

1

87699661

PLATE ASSY.

Frame, Left and Right Hand, Start Serial: Y8ZN00501

2шт.

2

87566341

CLAMP

1шт.

3

87561089

GASKET,3mm Thk

End Cap, Serial Range: -Y8ZN00501

2шт.

3

87699662

GASKET,1.6mm Thk

End Cap, Start Serial: Y8ZN00501

2шт.

4

87560521

BAR

Auger Support, Rear Link

2шт.

5

87560520

BAR

Auger Support, Front Link

2шт.

6

87566802

WASHER

8шт.

7

REF

INSTRUCTION

BRACKET, Adjusting, Serial Range: -`0

1шт.

See Figure 09-54

1шт.

8

87560885

CLAMP

Plate

1шт.

9

87566767

PIN,18.95mm OD x 64.99mm L

2шт.

10

87560883

CLAMP

Auger Pivot

2шт.

11

84486386

ANCHOR

Strut

1шт.

12

87561633

TUBE,44.6 mm ID x 50.8/2 mm OD x 713 mm L

Strut, Model Year 2011 And Prior

1шт.

12

84486378

TUBE

Strut, Model Year 2012

1шт.

13

84363461

PIN

2шт.

14

86585176

LUBE NIPPLE,90 Degree, 1/4" NPT x .75" lg

4шт.

15

87560964

DEFLECTOR

Poly, Left Hand

1шт.

15

87560965

DEFLECTOR

Poly, Right Hand

1шт.

16

341198A1

PIN

6шт.

17

87627796

FILLER CAP

Oil Reservoir, Start Serial: Y8ZN00501

1шт.

17

87561230

PLUG

Filler, Oil Reservoir, Serial Range: -Y8ZN00501

1шт.

a

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

If Used

1шт.

a

523291

BOLT,Hex Serr Flg, 1/4" - 20 x 1/2"

If Used

1шт.

c

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

1шт.

d

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

e

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

f

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

g

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

h

86508773

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

1шт.

j

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

p

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

q

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

r

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

s

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

t

434-1016

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1", Gr 5

1шт.

u

280486

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

Выбрано товаров: 38
