Запчасти Case IH 2142 (09-49) - SINGLE REEL FORE-AFT KIT

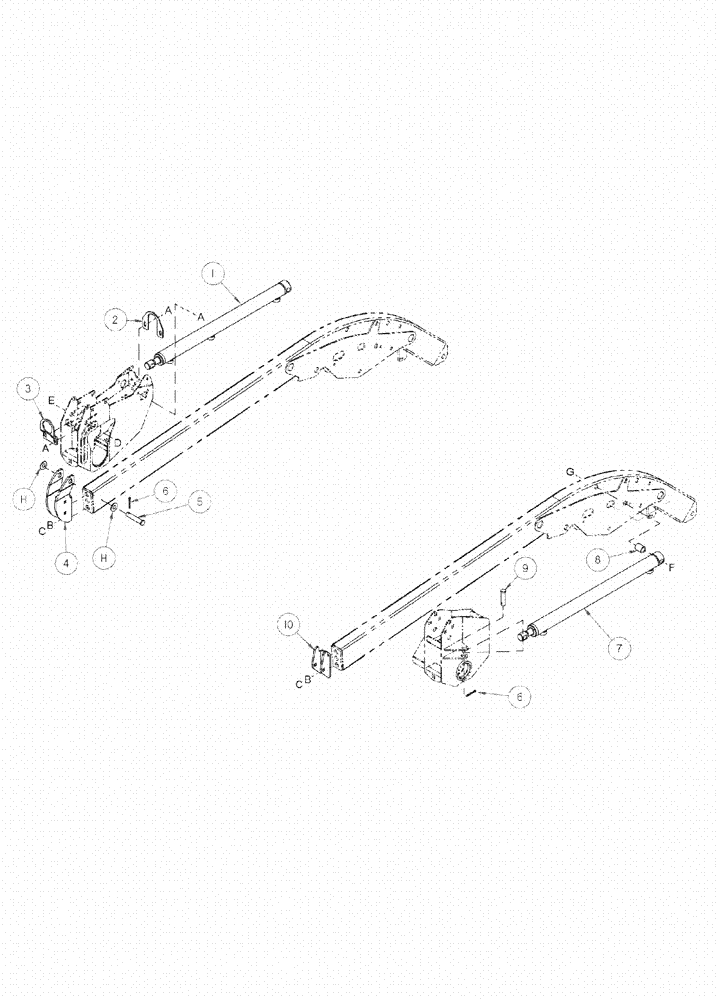

Схема запчастей Case IH 2142 - (09-49) - SINGLE REEL FORE-AFT KIT
b
d
4
6
e
a
2
5
1
b
9
g
7
6
a
a
3
h
8
10
c
h
c
f

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

KIT, Fore-Aft, Single Reel

1шт.

Available Through Whole Goods Only, Order B5205

1шт.

1

87585285

CYLINDER ASSY.,Double Acting, 22.23mm Rod, 550mm Stroke

Fore-Aft

1шт.

345950A1

SEAL KIT

For Fore-Aft Cylinder

1шт.

2

87585407

PLATE ASSY.

Fore-Aft Cylinder

1шт.

3

87585463

SUPPORT ASSY.

Front Fore-Aft Cylinder

1шт.

4

87585462

SUPPORT ASSY.

Front Fore-Aft Cylinder

1шт.

5

427-10300

CLEVIS PIN,5/8" x 4"

1шт.

6

825996C1

COTTER PIN

2шт.

7

345942A1

CYLINDER,Double Acting, 22.23mm Rod, 550mm Stroke

1шт.

345950A1

SEAL KIT

For Cylinder

1шт.

8

87585930

SPACER,16.81mm ID x 25.53mm OD x 30mm L

1шт.

9

427-10225

CLEVIS PIN,5/8" x 1 1/4"

1шт.

10

87585453

SUPPORT ASSY.

Reel

1шт.

a

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

b

492-11050

LOCK WASHER,1/2"

1шт.

c

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

d

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

e

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

f

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

1шт.

g

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

h

495-11066

WASHER,5/8", SAE

1шт.

Выбрано товаров: 22
