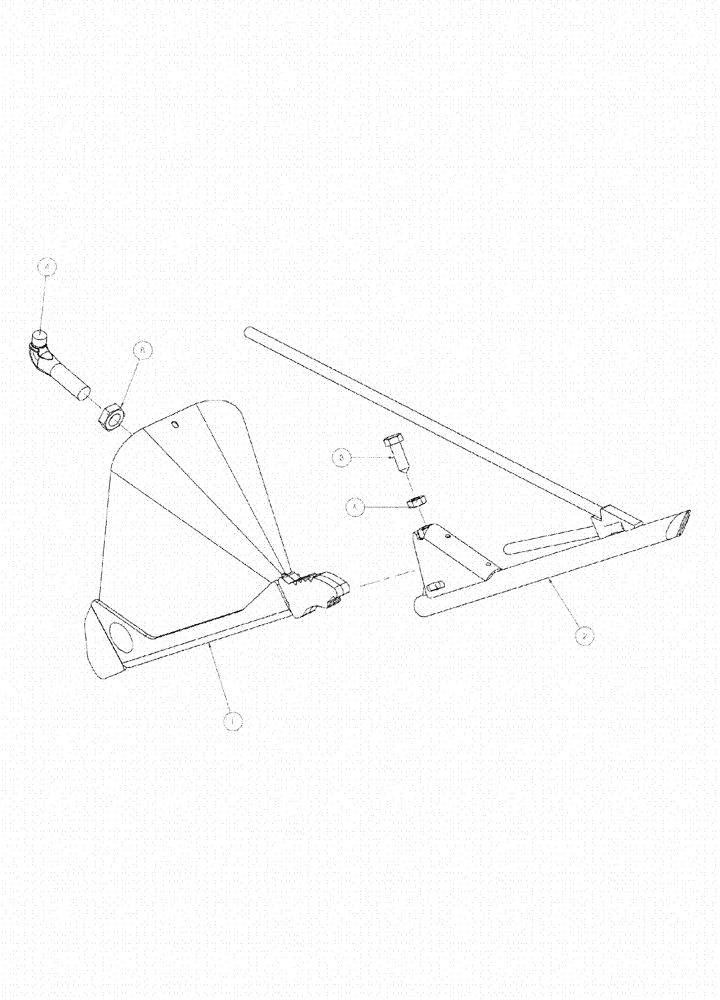

Запчасти Case IH 2142 (09-48) - RICE DIVIDER KIT

NSS

NOT SOLD SEPARAT

KIT, Rice Divider, Serial Range: -`0

1шт.

Available Through Whole Goods Only, Order B5281

1шт.

1

47374949

DIVIDER

Cone, Rice, Left Hand

1шт.

1

47374950

DIVIDER

Cone, Rice, Right Hand

1шт.

2

47374951

DIVIDER

Rod, Rice, Left Hand

1шт.

2

84591485

DIVIDER

Rod, Rice, Right Hand

1шт.

3

87753032

SET SCREW,Hex, 1/2" - 13 x 1 1/2", Cl 5.8

2шт.

4

87561129

HOOK

Divider Latch

2шт.

a

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

b

219758

JAM NUT,Jam, 3/4"-10, G5

1шт.
