Запчасти Case IH 2142 (09-43) - LODGED CROP REEL FINGER KIT (ATTACHMENT)

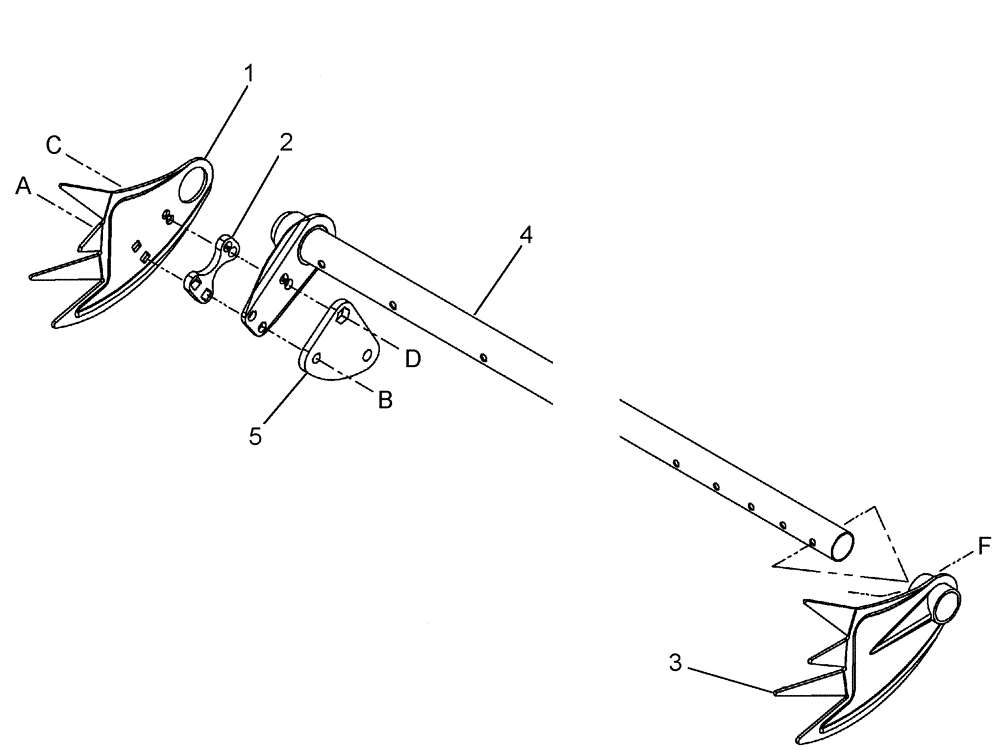

Схема запчастей Case IH 2142 - (09-43) - LODGED CROP REEL FINGER KIT (ATTACHMENT)
4
a
b
3
5
2
f
1
c
d

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

KIT, Lodged Crop Reel Fingers

1шт.

Available Through Whole Goods Only, Order B4831

1шт.

1

87585309

FINGER

Lodged Crop, Cam End

3шт.

2

87585435

SHIM

Lodged Crop Finger

3шт.

3

87585310

FINGER

Lodged Crop, Tail End

3шт.

4

REF

INSTRUCTION

TINE TUBE

1шт.

See Figure 09-24

1шт.

5

REF

INSTRUCTION

CRANK ARM

1шт.

See Figure 09-24

1шт.

a

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

b

87323841

FLANGE NUT

1шт.

c

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

d

86512371

SERRATED NUT,Flg, USR, 1/2"-13

1шт.

e

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

f

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

Выбрано товаров: 15
