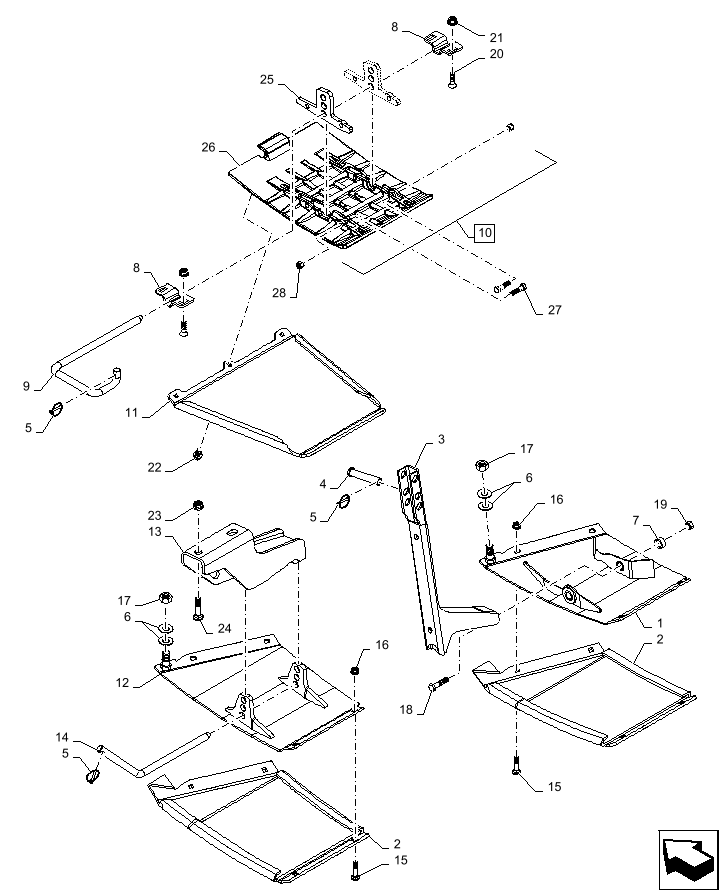

Запчасти Case IH 2142 (09-42) - SKID SHOES - END/CENTER (ATTACHMENT)
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
KIT, End Skid Shoe, 2006 and Prior
1шт.
Available Through Whole Goods Only, Order B4836
1шт.
1
87561541
SHOE (ASSY)
End Skid, Left Hand
1шт.
1
87561543
SHOE (ASSY)
End Skid, Right Hand
1шт.
2
87561540
SHOE (ASSY)
Wear, Plastic, Left Hand End
1шт.
2
87561542
SHOE,RH PLASTIC WEAR
Wear, Plastic, Right Hand End
1шт.
3
87560871
CHANNEL
Adjuster
2шт.
4
126602A1
PIN
2шт.
5
341198A1
PIN
4шт.
6
140048
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
4шт.
NSS
NOT SOLD SEPARAT
KIT, Center Skid Shoe, 2006
2шт.
Available Through Whole Goods Only, Order B4837
1шт.
NSS
NOT SOLD SEPARAT
KIT, End Skid Shoe, 2007 and After
1шт.
Available Through Whole Goods Only, Order B4963
1шт.
7
87585929
SPACER,16.26mm ID x 25.4mm OD x 10.2mm L
4шт.
8
87560845
BRACKET
Center Skid Shoe Rod Support
4шт.
9
87561455
ROD
Engaging, Left Hand Center Skid Shoe
1шт.
9
87561456
ROD
Engaging, Right Hand Center Skid Shoe
1шт.
10
87561537
SHOE (ASSY)
Center Skid
2шт.
10
47414657
SKID/SHOE
Center, Black, Incl 25, 26
2шт.
11
87561539
SHOE (ASSY)
Wear, Plastic, Center/Inboard Skid
4шт.
12
87589373
SHOE (ASSY)
End Skid, Left Hand
1шт.
12
87589374
SHOE (ASSY)
End Skid, Right Hand
1шт.
13
87589361
SUPPORT ASSY.
Outer Shoe
2шт.
14
87589360
ROD
Engaging
2шт.
15
280327
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd
1шт.
16
86521605
FLANGE NUT,5/16"-18, Cl 5
1шт.
17
231-41410
NUT,5/8"-11, GB
1шт.
18
87091
BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5
1шт.
19
86521611
FLANGE NUT,Flg, 5/8"-11
1шт.
21
86521609
FLANGE NUT,Flg, 3/8"-16
1шт.
22
87566779
SCREW,Torx, Truss HD, 3/8" - 16 x 1-1/4", Gr 5
1шт.
23
433-1024
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5
1шт.
24
231-53410
FLANGE NUT,Flg, 5/8"-11
1шт.
25
47812331
LUG
Shoe Bracket
2шт.
26
47812329
SKID/SHOE
Center
1шт.
27
88044
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
4шт.
28
9637692
NUT,3/8"-16, GB
4шт.
Выбрано товаров: 39
