Запчасти Case IH 2142 (09-35[01]) - DECALS

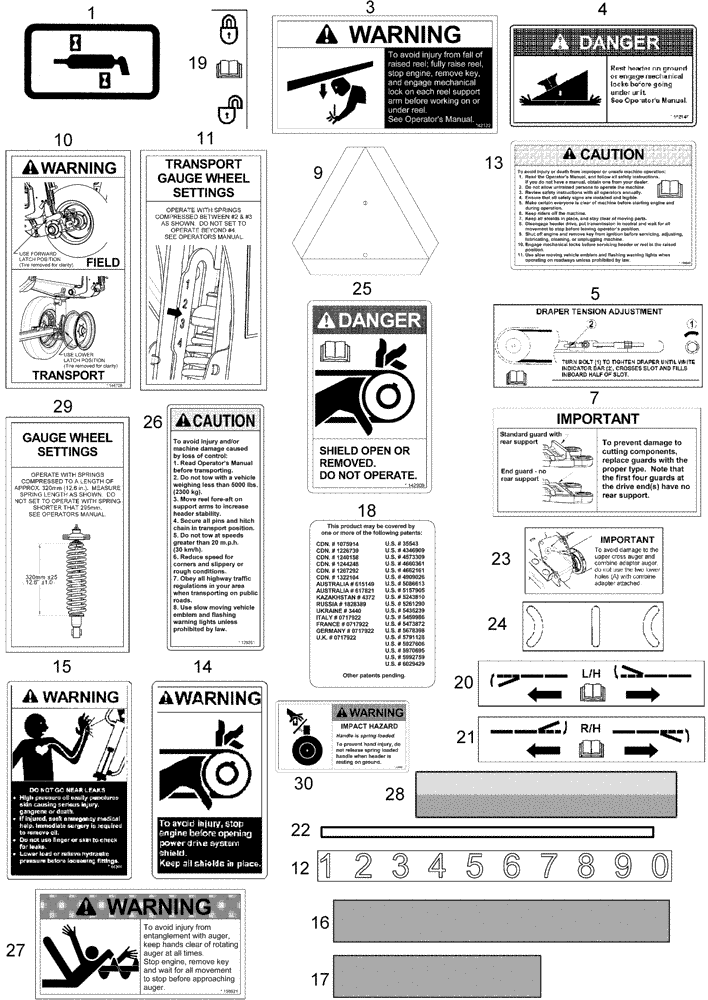

![Схема запчастей Case IH 2142 - (09-35[01]) - DECALS](https://partsell.ru/storage/images/caseih/103354.png)
№
Артикул
Название
Примечание
Количество
1
1281423C1
DECAL
Grease, 10 Hour
1шт.
1
1336984C1
DECAL
Grease, 25 Hour
1шт.
1
1281424C1
DECAL
Grease, 50 Hour
1шт.
3
126684A2
DECAL
Warning, Reel Hazard
1шт.
4
87589376
DECAL
Danger, Header Hazard
1шт.
5
84529711
DECAL
Draper Tension
1шт.
7
87456667
DECAL
Important, Guards
1шт.
9
87585413
REFLECTOR
Slow Moving Vehicle, Transport
1шт.
10
87585286
DECAL
Transport Hitch/Gauge Wheel Latch Positions, Serial Range: -174609
1шт.
10
87666080
DECAL
Transport Hitch/Gauge Wheel Latch Positions, Start Serial: 174610
1шт.
11
87585288
DECAL
Transport Gauge Wheel Settings, Serial Range: -174609
1шт.
11
87666081
DECAL
Transport Gauge Wheel Settings, Start Serial: 174610
1шт.
12
87408999
DECAL
Reel Fore-Aft Gauge
1шт.
13
87752651
DECAL
General Caution
1шт.
14
1344550C1
DECAL
Warning, Keep Shields in Place
1шт.
15
338848A1
DECAL
Warning, High Pressure Oil
1шт.
16
87561239
REFLECTOR
Amber, 638 mm
1шт.
16
87589363
REFLECTOR
Amber, 798 mm
1шт.
17
352668A1
REFLECTOR
Fluorescent Red - Orange, 230 mm, Square Corners
1шт.
17
84219673
REFLECTOR
Fluorescent Red - Orange, 230 mm, Round Corners
1шт.
17
352669A1
REFLECTOR
Amber, 230 mm
1шт.
17
352670A1
REFLECTOR
Red, 230 mm, Square Corners
1шт.
17
311863A1
REFLECTOR
Red, 230 mm, Round Corners
1шт.
18
126621A1
DECAL
Patent Number
1шт.
19
87585289
DECAL
Wing Lockout, Serial Range: -`0
1шт.
2162 Only
1шт.
20
87585290
DECAL
Left Hand Wing Balance Adjustment, Serial Range: -`0
1шт.
2162 Only
1шт.
21
87585291
DECAL
Right Hand Wing Balance Adjustment, Serial Range: -`0
1шт.
2162 Only
1шт.
22
87585292
DECAL
Indicator Strip, Serial Range: -`0
1шт.
2162 Only
1шт.
23
87585293
DECAL
Important, Upper Cross Auger Height
1шт.
24
87585294
DECAL
Flex Indicator, Serial Range: -`0
1шт.
2162 Only
1шт.
25
87472322
DECAL
Danger Shield Missing
1шт.
26
87446881
DECAL
Caution, Transport
1шт.
27
87413768
DECAL
Warning Auger Hazard
1шт.
28
87685334
DECAL
Double, Red and Flourescent Red-Orange, 638 mm
1шт.
28
87712724
DECAL
Double, Red and Flourescent -Red-Orange, 798 mm
1шт.
29
87666082
DECAL
Gauge Wheel
1шт.
30
87666083
DECAL
Transport For 2006 and Prior
1шт.
Выбрано товаров: 42
