Запчасти Case IH 2142 (09-33) - REEL HYDRAULICS - COUPLER PACKAGE

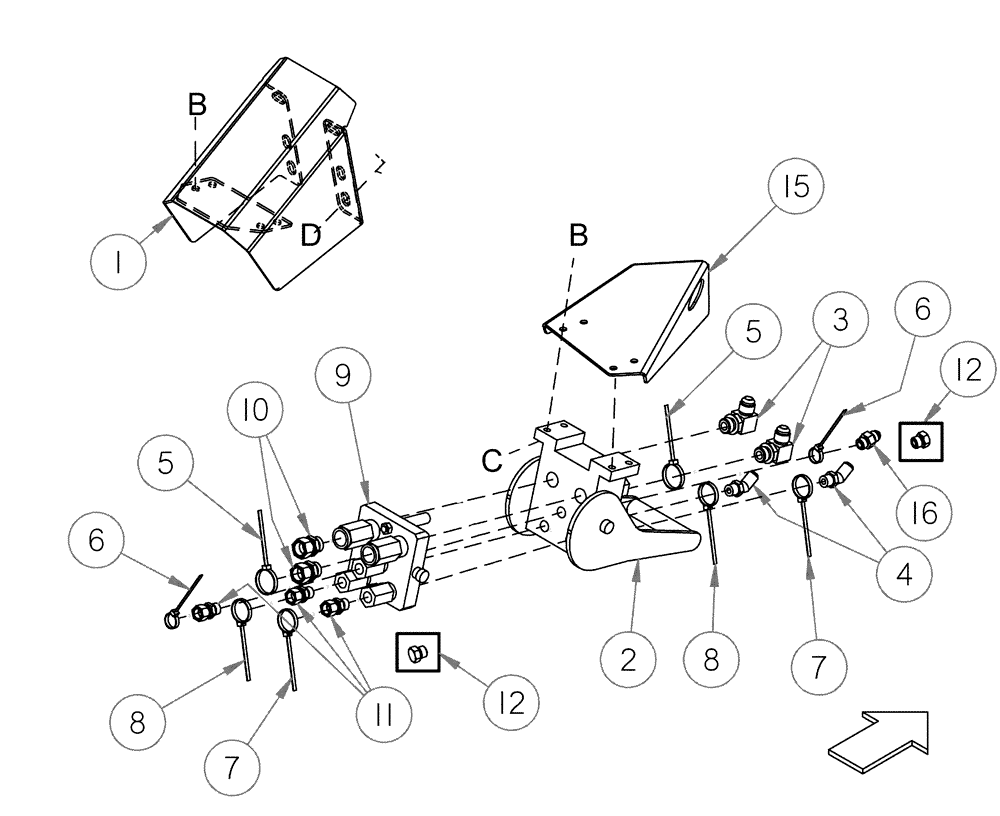

Схема запчастей Case IH 2142 - (09-33) - REEL HYDRAULICS - COUPLER PACKAGE
3
2
d
4
c
5
6
b
15
7
7
11
12
1
8
10
8
b
16
9
12
5
6

Артикул

Название

Примечание

Количество

1

87585460

SUPPORT ASSY.

Multi - Coupler, Serial Range: -Y7ZN00300

1шт.

Combine Header

1шт.

2

87408322

COUPLING

Multi - Coupler

1шт.

2

87352717

COVER ASSY

Multi Couplers

1шт.

2

87352718

LATCH

Button Multi Couplers

1шт.

2

87589352

COUPLING

1/4 Inch, Multi Couplers

3шт.

2

87589353

COUPLING

3/8 Inch, Multi Couplers

2шт.

3

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

, Serial Range: -Y7ZN00300

2шт.

4

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

2шт.

Hydraulic Fore-Aft Header

1шт.

5

87407797

FASTENER

Cable Tie, Reel Drive Return

2шт.

6

1336064C1

CABLE TIE

CABLE STRAP Cable Tie, Reel Lift

2шт.

7

87407803

FASTENER

Cable Tie, Reel Fore

2шт.

8

87407798

FASTENER

Cable Tie, Reel Aft

2шт.

9

87585267

COUPLING

Multi Link

1шт.

87752706

SEAL KIT

Seal 1/4 Inch Coupler

3шт.

87752707

SEAL KIT

Seal 3/8 Inch Coupler

2шт.

87752708

KIT

Screws

1шт.

87752709

KIT

Dowels

1шт.

87472035

FITTING

3/8 Inch Coupler - Long

1шт.

87472036

FITTING

1/4 Inch Coupler

3шт.

87472037

FITTING

3/8 Inch Coupler - Short

1шт.

10

192251A1

MULTIPOLE CONNECTOR

2шт.

11

429455A1

ADAPTER,9/16" - 18 ORB x 9/16" - 18

3шт.

Hydraulic Fore-Aft Header

1шт.

11

429455A1

ADAPTER,9/16" - 18 ORB x 9/16" - 18

1шт.

Manual Fore-Aft Header

1шт.

12

76349

PLUG,9/16" - 18 ORB

4шт.

Manual Fore-Aft Header

1шт.

Combine Header

1шт.

12

76349

PLUG,9/16" - 18 ORB

2шт.

Manual Fore-Aft Header

1шт.

13

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

15

87605741

BRACKET

Multi Coupler, Start Serial: Y7ZN00301

1шт.

16

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

b

87034814

FLANGE NUT,Flg, 5/16"-18

1шт.

c

461-33112

HEX SOC SCREW,5/16" - 18 x 3/4"

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

Выбрано товаров: 41
