Запчасти Case IH 2142 (09-31) - REEL HYDRAULICS - DOUBLE REEL HEADERS, 30.0, 35.0, 40.0, AND 45 FOOT

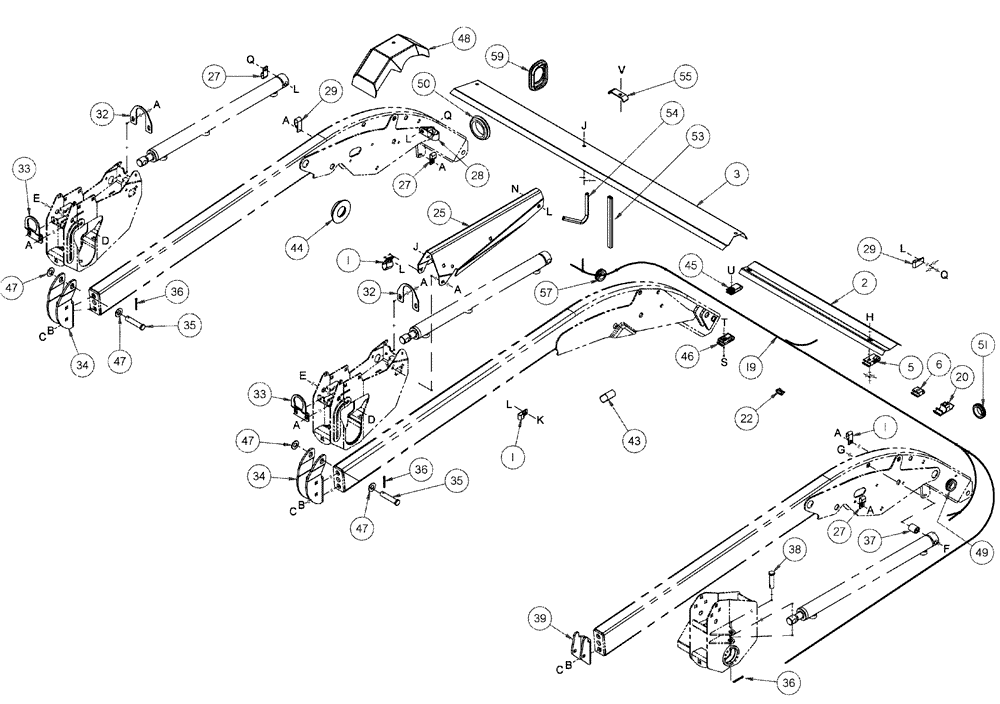

Схема запчастей Case IH 2142 - (09-31) - REEL HYDRAULICS - DOUBLE REEL HEADERS, 30.0, 35.0, 40.0, AND 45 FOOT
a
l
q
37
46
50
34
6
b
38
b
a
l
54
27
u
a
35
c
44
n
38
25
a
j
a
a
5
1
l
j
a
l
2
47
29
27
1
27
3
b
33
e
48
47
c
d
34
57
22
32
39
g
36
32
h
a
36
c
t
5
43
19
29
53
35
47
1
k
v
33
l
47
55
28
q
l
59
45
e
s
20
f
49
d
a

Артикул

Название

Примечание

Количество

1

470375C1

CLAMP,1", Insul, 3/8" Bolt

, Serial Range: -`0

2шт.

Hydraulic Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers

1шт.

1

470375C1

CLAMP,1", Insul, 3/8" Bolt

, Serial Range: -`0

2шт.

Manual Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers,2162 Only

1шт.

1

470375C1

CLAMP,1", Insul, 3/8" Bolt

, Serial Range: -`0

3шт.

Manual Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers,2152 Only

1шт.

1

87532509

CLAMP

, Serial Range: -Y7ZN00301

1шт.

2

87560921

COVER

Left Hand, Serial Range: -Y7ZN00301`0

1шт.

30.0 Foot Header

1шт.

2

87560917

COVER

Left Hand, Serial Range: -Y7ZN00301`0

1шт.

35.0 Foot Header

1шт.

2

87560911

COVER

Left Hand, Serial Range: -Y7ZN00301`0

1шт.

40.0 Foot Header

1шт.

2

87585272

COVER ASSY

Center, Serial Range: -Y7ZN00301`0

1шт.

2162 Only

1шт.

2

87560919

COVER

Center, Serial Range: -Y7ZN00301`0

1шт.

2142 And 2152 Only

1шт.

2

87560910

COVER

Right Hand, Serial Range: -Y7ZN00301`0

1шт.

2142 And 2152 Only,30.0 Foot Header

1шт.

2

87560918

COVER

Right Hand, Serial Range: -Y7ZN00301`0

1шт.

2142 And 2152 Only,35.0 Foot Header

1шт.

2

87560907

COVER

Right Hand, Serial Range: -Y7ZN00301`0

1шт.

40.0 Foot Header,2152 Only

1шт.

2

87585280

COVER ASSY

Reel Hoses, Serial Range: -Y7ZN00301`0

2шт.

2162 Only,30.0 Foot Header

1шт.

2

87585279

COVER ASSY

Reel Hoses, Serial Range: -Y7ZN00301`0

2шт.

2162 Only,35.0 Foot Header

1шт.

2

87585281

COVER ASSY

Reel Hoses, Serial Range: -Y7ZN00301`0

2шт.

40.0 Foot Header,2162 Only

1шт.

3

87560916

COVER

Reel Drive, Serial Range: -`0

1шт.

2142 And 2152 Only

1шт.

3

87585275

COVER ASSY

Reel Drive, Serial Range: -`0

1шт.

2162 Only

1шт.

5

87561118

HOLDER

, Serial Range: -`0

6шт.

2142 And 2152 Only,30.0 Foot Header

1шт.

5

87561118

HOLDER

, Serial Range: -`0

7шт.

2142 And 2152 Only,35.0 Foot Header

1шт.

5

87561118

HOLDER

, Serial Range: -`0

8шт.

40.0 Foot Header,2152 Only

1шт.

6

87561126

HOLDER

, Serial Range: -`0

4шт.

2142 And 2152 Only,30.0 Foot Header

1шт.

6

87561126

HOLDER

, Serial Range: -`0

5шт.

2142 And 2152 Only,35.0 Foot Header

1шт.

6

87561126

HOLDER

, Serial Range: -`0

6шт.

40.0 Foot Header,2152 Only

1шт.

6

87561126

HOLDER

, Serial Range: -`0

1шт.

2162 Only,35.0 And 40.0 Foot Headers

1шт.

19

REF

INSTRUCTION

WIRING HARNESS, Serial Range: -`0

1шт.

See Figure 09-34

1шт.

20

87561128

HOLDER

Hose, Serial Range: -Y7ZN00301

3шт.

22

1336064C1

CABLE TIE

Cable Tie, Black, Serial Range: -`0

5шт.

30.0 Foot Header

1шт.

22

1336064C1

CABLE TIE

Cable Tie, Black, Serial Range: -`0

6шт.

35.0 Foot Header

1шт.

22

1336064C1

CABLE TIE

Cable Tie, Black, Serial Range: -`0

7шт.

40.0 Foot Header

1шт.

22

87407797

FASTENER

Cable Tie, Yellow, Serial Range: -`0

5шт.

30.0 Foot Header

1шт.

22

87407797

FASTENER

Cable Tie, Yellow, Serial Range: -`0

6шт.

35.0 Foot Header

1шт.

22

87407797

FASTENER

Cable Tie, Yellow, Serial Range: -`0

7шт.

40.0 Foot Header

1шт.

22

87407803

FASTENER

Cable Tie, Green, Serial Range: -`0

5шт.

30.0 Foot Header

1шт.

22

87407803

FASTENER

Cable Tie, Green, Serial Range: -`0

6шт.

35.0 Foot Header

1шт.

22

87407803

FASTENER

Cable Tie, Green, Serial Range: -`0

7шт.

40.0 Foot Header

1шт.

22

87407798

FASTENER

Cable Tie, Red, Serial Range: -`0

5шт.

30.0 Foot Header

1шт.

22

87407798

FASTENER

Cable Tie, Red, Serial Range: -`0

6шт.

35.0 Foot Header

1шт.

22

87407798

FASTENER

Cable Tie, Red, Serial Range: -`0

7шт.

40.0 Foot Header

1шт.

25

87561122

HOLDER

Reel Hoses

1шт.

27

87566342

CLAMP

3/8 Tube Size

1шт.

27

87566344

CLAMP

5/8 Tube Size

1шт.

27

87532509

CLAMP

1/2 Tube Size

1шт.

28

338322A1

CLIP

, Serial Range: -`0

1шт.

Hydraulic Fore-Aft Header,2152 Only

1шт.

28

470375C1

CLAMP,1", Insul, 3/8" Bolt

, Serial Range: -`0

1шт.

Manual Fore-Aft Header,2152 Only

1шт.

29

87532509

CLAMP

1шт.

32

87585407

PLATE ASSY.

Fore-Aft Cylinder

2шт.

33

87585463

SUPPORT ASSY.

Front Fore-Aft Cylinder

2шт.

34

87585462

SUPPORT ASSY.

Front Fore-Aft Cylinder

2шт.

35

427-10300

CLEVIS PIN,5/8" x 4"

2шт.

36

88350

COTTER PIN,5/32" x 1-1/2"

3шт.

37

87585930

SPACER,16.81mm ID x 25.53mm OD x 30mm L

1шт.

38

427-10225

CLEVIS PIN,5/8" x 1 1/4"

1шт.

39

87585453

SUPPORT ASSY.

Reel

1шт.

43

87383361

STRAP

6 Inch, Serial Range: -`0

6шт.

2142 And 2152 Only

1шт.

43

87383361

STRAP

6 Inch, Serial Range: -`0

9шт.

2162 Only

1шт.

43

87383360

STRAP

4 Inch

4шт.

44

87566758

GROMMET

Harness and Reel Fore-Aft Hose, Serial Range: -`0

1шт.

2162 Only

1шт.

45

87585341

HOLDER

, Serial Range: -Y7ZN00301`0

2шт.

2162 Only

1шт.

46

87585340

HOLDER

, Serial Range: -Y7ZN00301`0

8шт.

2162 Only,30.0 Foot Header

1шт.

46

87585340

HOLDER

, Serial Range: -Y7ZN00301`0

10шт.

2162 Only,35.0 Foot Header

1шт.

46

87585340

HOLDER

, Serial Range: -Y7ZN00301`0

12шт.

40.0 Foot Header,2162 Only

1шт.

47

495-11066

WASHER,5/8", SAE

4шт.

48

87752656

COVER

Hoses, Serial Range: -Y7ZN00301`0

1шт.

2162 Only

1шт.

49

248-2181

GROMMET,1" ID x 3/8" Groove Dia

, Serial Range: -`0

2шт.

Hydraulic Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers

1шт.

49

248-2181

GROMMET,1" ID x 3/8" Groove Dia

, Serial Range: -`0

2шт.

Manual Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers,2162 Only

1шт.

49

248-2181

GROMMET,1" ID x 3/8" Groove Dia

, Serial Range: -`0

3шт.

Manual Fore-Aft Header,30.0, 35.0, 40.0 and 45.0 Foot Headers,2152 Only

1шт.

50

87752718

DIVIDER

2-3/8 Inch

3шт.

51

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

51

87472034

GROMMET

2шт.

53

87431899

SEAL

Edge Trim, Serial Range: -`0

1шт.

2152 Only

1шт.

54

87752649

MOLDING

Edge Trim, Serial Range: -`0

1шт.

2142 And 2152 Only

1шт.

54

87752650

MOLDING

Edge Trim, Serial Range: -`0

1шт.

2162 Only

1шт.

55

352187A1

HOLDER

Hose, Serial Range: -`0

1шт.

2162 Only

1шт.

57

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

Center Arm, Until Early Production Year 2008, Serial Range: -MACDON183406`0

1шт.

2162 Only

1шт.

57

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

Center Arm, From Early Production Year 2008, Serial Range: MACDON183407-`0

1шт.

2162 Only

1шт.

57

248-2181

GROMMET,1" ID x 3/8" Groove Dia

Center Arm, Until Early Production Year 2008, Serial Range: -MACDON183406`0

1шт.

2152 Only

1шт.

57

87472039

GROMMET

Center Arm, From Early Production Year 2008, Serial Range: MACDON183407-`0

1шт.

2152 Only

1шт.

59

87753073

GROMMET

At Coupler Mount, Serial Range: -`0

1шт.

2142 And 2152 Only

1шт.

60

84529727

TUBE

Poly, (not Shown), Serial Range: -`0

1шт.

40.0 Foot Header,2162 Only

1шт.

60

84529709

TUBE

Poly, (Not Shown), Serial Range: -`0

1шт.

2162 Only,45.0 Foot Header

1шт.

61

84529708

HOLDER

Clamp, (Not Shown), Serial Range: -`0

1шт.

2162 Only

1шт.

62

86989928

PIPE CLAMP

Hydraulic Tube, (Not Shown), Serial Range: -`0

1шт.

2162 Only

1шт.

63

86989929

COVER PLATE

Pipe Clamp, (Not Shown), Serial Range: -`0

1шт.

2162 Only

1шт.

a

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

b

492-11050

LOCK WASHER,1/2"

1шт.

c

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

d

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

e

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

f

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

1шт.

g

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

h

281-54816

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

1шт.

j

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

1шт.

k

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

l

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

m

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

n

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

p

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

q

86977730

SERRATED SCREW,3/8" - 16 x 2 1/2"

1шт.

r

495-11053

WASHER,1/2", SAE

1шт.

s

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

1шт.

t

523282

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

u

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

1шт.

v

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

Выбрано товаров: 166
