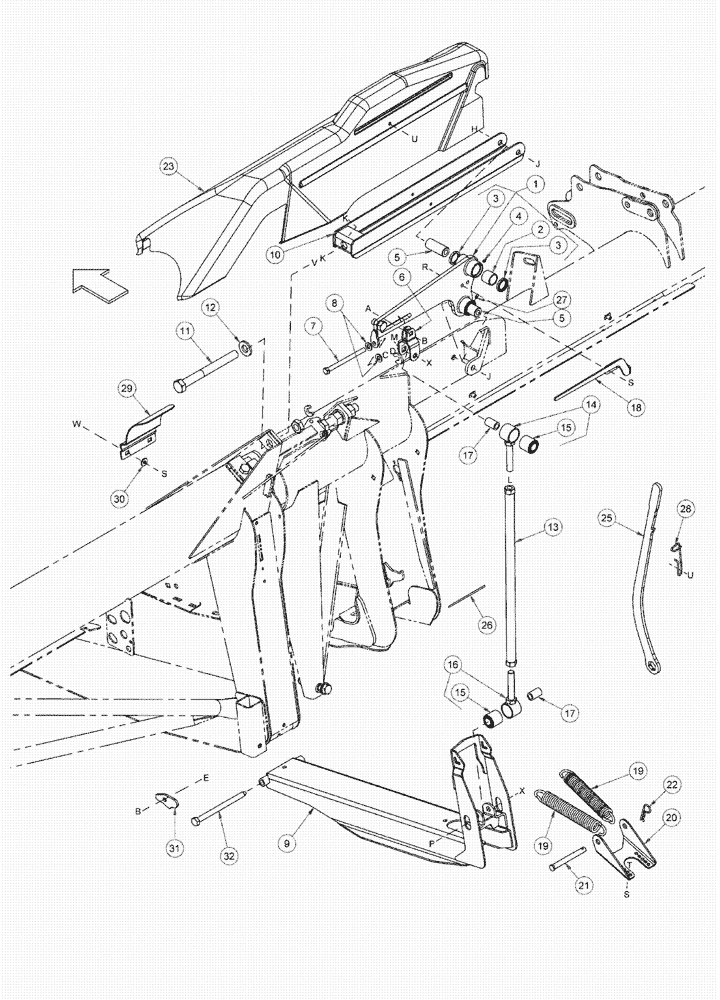

Запчасти Case IH 2142 (09-03A) - WING BALANCE LINKAGE - 2162, ASN Y9ZN11201

1

87585935

SUPPORT ASSY.

Bell Crank, Inc. 2 - 4, Serial Range: -`0

2шт.

30.0 Foot Header

1шт.

1

87585934

SUPPORT ASSY.

Bell Crank, Inc. 2 - 4, Serial Range: -`0

2шт.

35.0 Foot Header

1шт.

1

87585936

SUPPORT ASSY.

Bell Crank, Inc. 2 - 4, 27, Serial Range: -`0

2шт.

40.0 Foot Header

1шт.

1

87725615

SUPPORT ASSY.

Bell Crank, Left Hand, Inc. 2 - 4, Serial Range: -`0

1шт.

40.0 Foot Double Knife Header

1шт.

1

47725963

SUPPORT

Bell Crank, LH 45FT Header, Incl 2 - 4

1шт.

1

47725955

SUPPORT

Bell Crank, RH 45FT Header, Incl 2 - 4

1шт.

2

A27827

NEEDLE BEARING,Needle, 31.75mm ID x 38.1mm OD x 31.75mm W

4шт.

3

345892A1

SEAL KIT

, Serial Range: -`0

8шт.

Install With Lip Facing Outward

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

4шт.

5

87585915

PIN,31.76mm OD x 76mm L

Bell Crank

4шт.

6

87585219

BRACKET

Bell Crank Adjuster

2шт.

7

429449A1

SPECIAL BOLT

2шт.

8

96-11053

WASHER,17/32" x 1 1/16" x .095", HDN

4шт.

9

87585252

CHANNEL

Bottom Link, 30, 35, 40 ft

2шт.

9

84529682

CHANNEL

Bottom Link, 45 ft

2шт.

10

87627782

SUPPORT ASSY.

Top

2шт.

11

87627783

BOLT

Model Year 2011 And Prior

2шт.

11

84517618

BOLT

Model Year 2012

2шт.

12

1276478C1

WASHER

2шт.

13

87585778

SUPPORT ASSY.

Compression Link

2шт.

14

87585422

ROD

Top, Right Hand Thread, Inc. 15

2шт.

Used on 30', 35', 40' models

1шт.

14

84529696

LINK

RH Thread Rod End w/Uni-Ball

2шт.

Used on 45' Models

1шт.

15

87585222

BUSHING,25.5mm ID x 44.6mm OD x 44.45mm L

4шт.

16

87585421

ROD

Bottom, Left Hand Thread, Inc. 15

2шт.

Used on 30', 35', 40' models

1шт.

16

84529697

LINK

LH Thread Rod End w/Uni-Ball

2шт.

Used on 45' Models

1шт.

17

87585933

SPACER,16.13mm ID x 25.53mm OD x 40mm L

Tube

4шт.

18

87585348

INDICATOR

Flex Wing, Left Hand

1шт.

18

87585349

INDICATOR

Flex Wing, Right Hand

1шт.

19

47481096

SPRING

Balance Linkage

4шт.

20

87585253

CHANNEL

Spring Anchor

2шт.

21

87585910

PIN,15.77mm OD x 144.8mm L

2шт.

22

591107R1

COTTER PIN

2шт.

23

87585429

SHIELD

Bell Crank, Left Hand, Serial Range: -`0

1шт.

30.0 Foot Header

1шт.

23

87585433

SHIELD

Bell Crank, Left Hand, Serial Range: -`0

1шт.

35.0 Foot Header

1шт.

23

87585430

SHIELD

Bell Crank, Left Hand, Serial Range: -`0

1шт.

40.0 Foot Header

1шт.

23

87585431

SHIELD

Bell Crank, Right Hand, Serial Range: -`0

1шт.

30.0 Foot Header

1шт.

23

87585434

SHIELD

Bell Crank, Right Hand, Serial Range: -`0

1шт.

35.0 Foot Header

1шт.

23

87585432

SHIELD

Bell Crank, Right Hand, Serial Range: -`0

1шт.

40.0 Foot Header

1шт.

25

87585475

TOOL

Flex Wrench, Model Year 2011 And Prior

1шт.

25

84529722

TOOL

Wrench, Model Year 2012

1шт.

26

REF

INSTRUCTION

DECAL, Indicator, White Strip, Serial Range: -`0

2шт.

See Figure 09-35

1шт.

27

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

, Serial Range: -`0

2шт.

40.0 Foot Header

1шт.

27

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

, Serial Range: -`0

3шт.

40.0 Foot Header

1шт.

28

87627726

HOLDER

Wrench

1шт.

29

87627763

SHIELD

Flex Back Tube Junction

2шт.

30

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

4шт.

31

84157742

PLATE

Float Bolt Keeper

2шт.

32

84157741

BOLT

2шт.

a

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

1шт.

b

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

c

280431

NUT,1/2"-13, G5

1шт.

d

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

e

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

f

495-11066

WASHER,5/8", SAE

1шт.

g

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

h

231-41410

NUT,5/8"-11, GB

1шт.

j

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

1шт.

k

9849633

NUT,1"-8, G5

Model Year 2011 And Prior

1шт.

k

84529699

NUT

Model Year 2012

1шт.

l

425-1012

NUT,3/4"-10, G5

1шт.

m

433-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 5

1шт.

n

129-390

JAM NUT,Jam, 5/8"-11, G5

1шт.

p

88693

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

1шт.

r

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

s

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

t

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

u

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

v

87553819

JAM NUT

Model Year 2011 And Prior

1шт.

v

84529700

NUT

Model Year 2012

1шт.

w

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

x

129-390

JAM NUT,Jam, 5/8"-11, G5

1шт.
