Запчасти Case IH 2142 (09-29) - REEL HYDRAULIC ROUTING - SINGLE REEL HEADERS - 2142, 2152

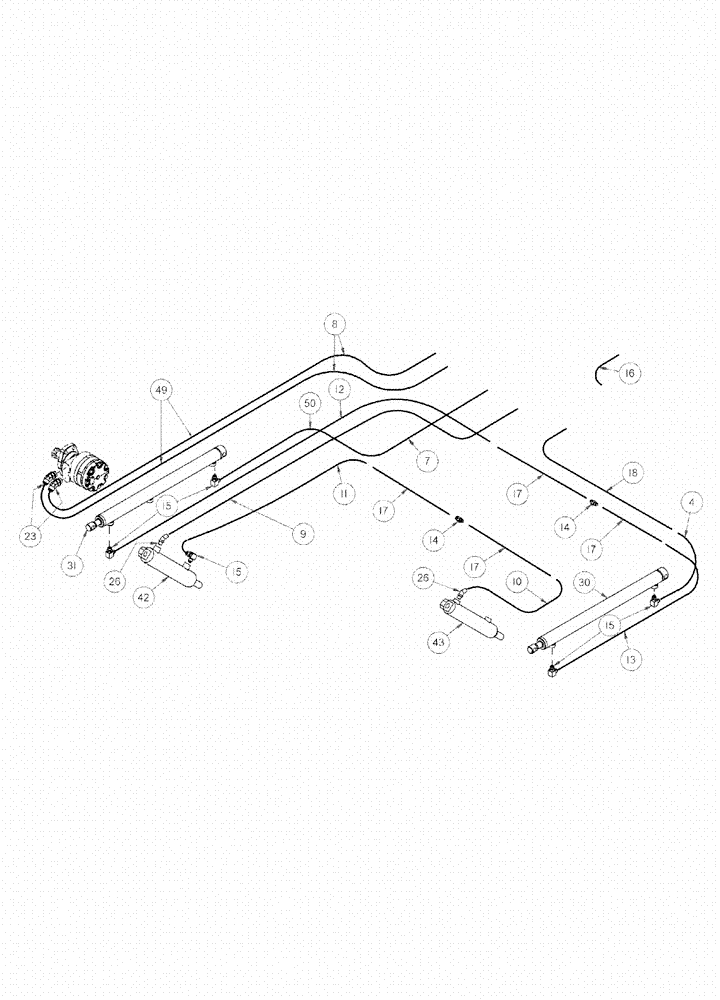

Схема запчастей Case IH 2142 - (09-29) - REEL HYDRAULIC ROUTING - SINGLE REEL HEADERS - 2142, 2152
17
13
49
10
4
8
14
15
17
50
18
12
7
26
31
43
4
7
15
15
30
16
23
9
42
11
26
17

Артикул

Название

Примечание

Количество

4

87565735

HOSE ASSY.

Fore-Aft, Left Hand Fore (Rear Port), Serial Range: -Y7ZN00300

1шт.

7

87605734

HOSE ASSY.

Right Hand Fore, Serial Range: -`0

1шт.

20.0 Foot Header

1шт.

7

87714237

HOSE ASSY.

Right Hand Fore, Serial Range: -`0

1шт.

25.0 Foot Header,For Headers BSN Y8ZN00501, Also Order Reference 50.

1шт.

7

87565722

HOSE ASSY.

Right Hand Fore, Serial Range: -`0

1шт.

30.0 Foot Header,For Headers BSN Y8ZN00501, Also Order Reference 50.

1шт.

7

87714238

HOSE ASSY.

Right Hand Fore, Serial Range: -`0

1шт.

35.0 Foot Header,For Headers BSN Y8ZN00501, Also Order Reference 50.

1шт.

8

87605728

HOSE ASSY.

Reel Motor, Pressure and Return, Serial Range: -`0

2шт.

20.0 Foot Header

1шт.

8

87714233

HOSE ASSY.

Reel Motor, Pressure and Return, Serial Range: -`0

2шт.

25.0 Foot Header,For Headers BSN Y8ZN00501, Also Order Reference 49.

1шт.

8

87714234

HOSE ASSY.

Reel Motor, Pressure and Return, Serial Range: -`0

2шт.

30.0 Foot Header,For Headers BSN Y8ZN00501, Also Order Reference 49.

1шт.

8

87714235

HOSE ASSY.

Reel Motor, Pressure and Return, Serial Range: -`0

2шт.

35.0 Foot Header,For Headers BSN Y8ZN00501, Also Order Reference 49.

1шт.

9

1284291C1

HYDRAULIC HOSE

Reel Lift Pressure, Right Hand, Serial Range: -`0

1шт.

20.0 Foot Header

1шт.

9

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

Reel Lift Pressure, Right Hand, Serial Range: -`0

1шт.

25.0 Foot Header

1шт.

9

87605732

HOSE ASSY.

Reel Lift Pressure, Right Hand, Serial Range: -`0

1шт.

30.0 Foot Header

1шт.

9

87605733

HOSE ASSY.

Reel Lift Pressure, Right Hand, Serial Range: -`0

1шт.

35.0 Foot Header

1шт.

10

87605724

HOSE ASSY.

Reel Lift Pressure, Left Hand

1шт.

11

87605723

HOSE ASSY.

Reel Lift Return, Left Hand

2шт.

12

87585342

HOSE ASSY.

Fore-Aft, Right Hand Aft

1шт.

13

87565673

HOSE ASSY.

Fore-Aft, Left Hand Front Port, Serial Range: -Y7ZN00300

1шт.

13

87605722

HOSE ASSY.

Fore-Aft, Left hand Front Port, Start Serial: Y7ZN00301

1шт.

14

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

, Serial Range: -`0

2шт.

25.0, 30.0, And 35.0 Foot Header

1шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

5шт.

16

87565702

HOSE ASSY.

Fore-Aft, Left Hand Fore, Serial Range: -Y7ZN00300`0

1шт.

20.0, 25.0, 30.0, And 35.0 Foot Headers

1шт.

17

87605750

HYD TUBE,0.375" OD

Fore-Aft, Serial Range: -`0

2шт.

20.0 Foot Header

1шт.

17

87565802

HOSE

Fore-Aft, Serial Range: -`0

4шт.

25.0 Foot Header

1шт.

17

87605748

HYD TUBE,0.375" OD

Fore-Aft, Serial Range: -`0

4шт.

30.0 Foot Header

1шт.

17

87605749

HYD TUBE,0.375" OD

Fore-Aft, Serial Range: -`0

4шт.

35.0 Foot Header

1шт.

18

87753036

HOSE ASSY.

Fore-Aft, Left Hand Fore, Serial Range: -`0

1шт.

20.0 Foot Header

1шт.

18

87753035

HOSE ASSY.

Fore-Aft, Left Hand Fore, Serial Range: -`0

1шт.

25.0 Foot Header

1шт.

18

87753037

HOSE ASSY.

Fore-Aft, Left Hand Fore, Serial Range: -`0

1шт.

30.0 Foot Header

1шт.

18

87753038

HOSE ASSY.

Fore-Aft, Left Hand Fore, Serial Range: -`0

1шт.

35.0 Foot Header

1шт.

23

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. O-Ring

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. O-Ring, Serial Range: -`0

2шт.

2152 Only

1шт.

26

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Inc. O-Ring, Serial Range: -`0

2шт.

2142 Only

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

345942A1

CYLINDER,Double Acting, 22.23mm Rod, 550mm Stroke

1шт.

345950A1

SEAL KIT

1шт.

31

87585285

CYLINDER ASSY.,Double Acting, 22.23mm Rod, 550mm Stroke

Fore-Aft

1шт.

345950A1

SEAL KIT

1шт.

42

87560932

CYLINDER,Double Acting, 25.4mm Rod, 220mm Stroke

Reel Lift, Right Hand

1шт.

87585357

SERVICE KIT

Reel Lift Cylinder

1шт.

43

87560926

CYLINDER,Double Acting, 25.4mm Rod, 215mm Stroke

Reel Lift, Left Hand

1шт.

87585356

SERVICE KIT

Reel Lift Cylinder

1шт.

84374132

BREATHER

For Cylinder 87560926

1шт.

49

87752701

HOSE ASSY.

Reel Pressure and Return, Motor End, Serial Range: -`0

2шт.

25.0, 30.0, And 35.0 Foot Header,For Headers BSN Y8ZN00501, Also Order Reference 8.

1шт.

50

87714236

HOSE ASSY.

Reel Aft to Right Hand Cylinder Rear Port, Serial Range: -`0

1шт.

25.0, 30.0, And 35.0 Foot Header,For Headers BSN Y8ZN00501, Also Order Reference 7.

1шт.

Выбрано товаров: 71
