Запчасти Case IH 2142 (09-25) - REEL DRIVE COMPONENTS, 2 ARM, 2152, 2162

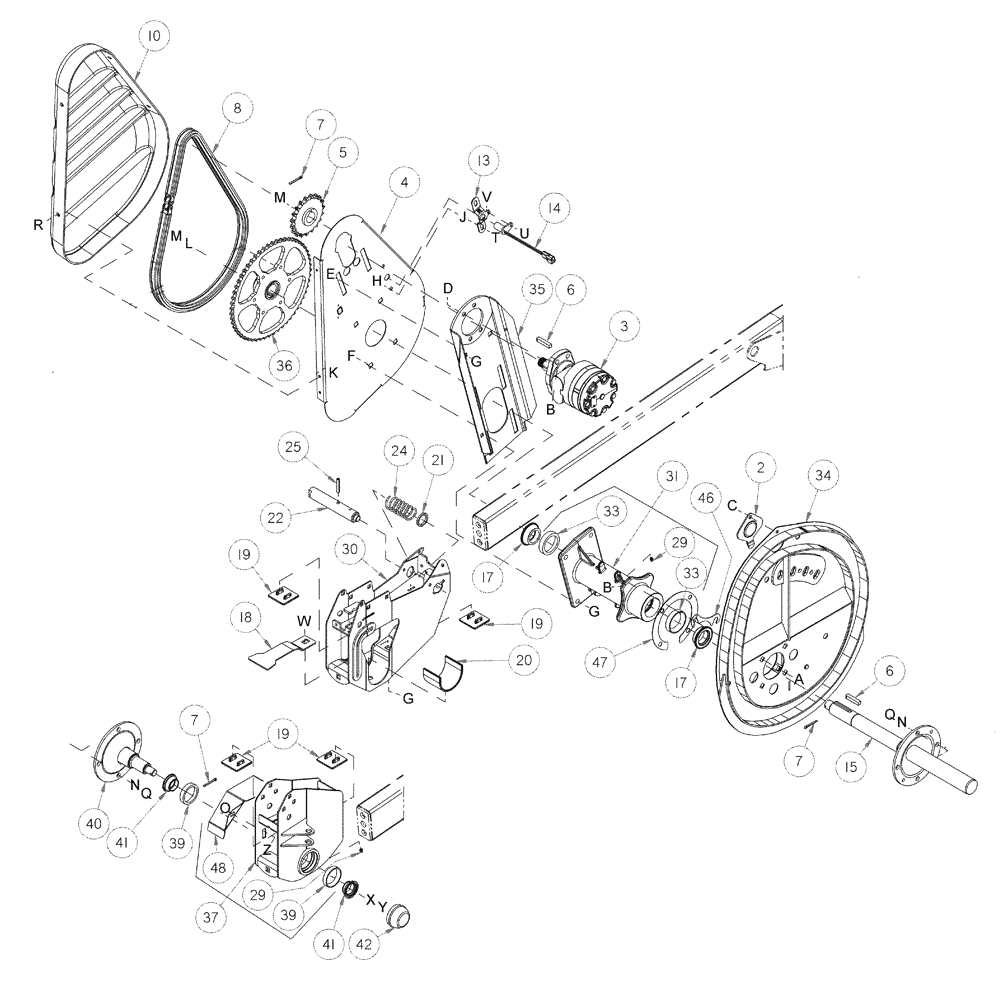

Схема запчастей Case IH 2142 - (09-25) - REEL DRIVE COMPONENTS, 2 ARM, 2152, 2162
k
19
7
25
39
17
j
10
x
8
36
g
2
7
42
e
41
17
h
n
41
u
15
6
19
6
t
40
x
n
47
b
m
37
34
w
33
l
m
f
3
7
v
5
14
r
q
a
21
4
n
35
30
20
39
13
29
22
d
3
48
31
18
c
19
3
24
g
46

Артикул

Название

Примечание

Количество

2

87560891

COVER

Cam Bearing Access

1шт.

3

87561181

HYDRAULIC MOTOR

Reel Drive, Inc. M

1шт.

87407673

SEAL KIT

Kit, Reel Drive Motor 48054456

1шт.

48081321

KIT

Seal, Applies To Motor

1шт.

4

87561233

SUPPORT

Reel Drive Back Plate

1шт.

5

87566794

GEAR

19 Tooth

1шт.

5

87585446

SPROCKET

10 Tooth, 2000 - 2100 psi, Down Rice Applications

1шт.

5

87585448

SPROCKET

14 Tooth, 3000 psi, Down Rice Applications

1шт.

5

87585447

SPROCKET

21 Tooth, Reel Drive Flow too Low For Reel Speeds

1шт.

5

87585449

SPROCKET

12 Tooth

1шт.

6

87561155

KEY

Reel Drive Shaft

2шт.

7

88350

COTTER PIN,5/32" x 1-1/2"

2шт.

8

87566336

CHAIN (AG)

Drive, 76 Pitch, See Ref 36, 56T Sprocket

1шт.

8

87627746

CHAIN (AG)

Drive, 70 Pitch, Half Speed Drive, See Ref 36, 48T Sprocket

1шт.

10

87560894

COVER

Reel Drive

1шт.

13

NS

NOT SERVICED

Reel Speed, Windrower Use Only

1шт.

14

NS

NOT SERVICED

Reel Speed, Windrower Use Only

1шт.

15

87561237

SHAFT

Reel

1шт.

17

96173C1

BEARING ASSY,38.1mm ID x 25.4mm W

2шт.

18

87560881

CLAMP

Top Reel Drive Support

1шт.

19

87561202

PAD

Reel Drive

2шт.

20

87561547

SLEEVE

Cam Hub

1шт.

21

87566800

WASHER,31mm ID x 39mm OD x 4.8mm Thk

Cam Latch

1шт.

22

87566765

PIN

Cam Latch

1шт.

24

87566787

SPRING

1шт.

25

87681

LOCK PIN,7.94mm OD x 44.45mm L

1шт.

29

87414

LUBE NIPPLE,1/4" - 28

2шт.

30

87561606

SUPPORT

Reel Drive

1шт.

31

87561234

SUPPORT

Reel Drive, Inc. 29, 32

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING CUP

1шт.

33

478793R1

BEARING CUP

2шт.

34

87560847

CAM

Reel

1шт.

35

87561183

ENGINE MOUNT

Motor

1шт.

36

87566791

GEAR

56 Tooth, See Ref 8, 76P Chain

1шт.

36

87627747

SPROCKET

48 Tooth, High Speed Drive,See Ref 8, 70P Chain

1шт.

37

87561619

SUPPORT

Tail End, Inc. 38, 39

1шт.

20.0, 25.0, 30.0, And 40.0 Foot Headers

1шт.

37

414-1016

BOLT,Hex, 5/8" - 18 x 1", Gr 5

Tail End, Inc. 38, 39

1шт.

35.0 Foot Single Knife Header

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

39

651817R1

BEARING CUP

2шт.

39

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

40

87561507

SHAFT

Tail End

1шт.

41

602958R91

BEARING ASSY,31.75 mm ID x 25.4 mm

2шт.

42

820166C1

CAP

Dust

1шт.

46

87589359

SHIM

, Serial Range: Hub-Cam

1шт.

47

87589354

RING

For Bolt Flange

1шт.

48

87589355

SUPPORT ASSY.

Tail End Support, Start Serial: Y7ZN05301

1шт.

a

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

b

231-4148

NUT,1/2"-13, GB

1шт.

c

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

d

87566358

BOLT,FLAT, 1/2" - 13 x 1-3/4", Gr 5

1шт.

f

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1шт.

g

87323841

FLANGE NUT

1шт.

k

131-646

SPRING NUT,Tinn, U, 1/4"-20

1шт.

l

1276478C1

WASHER

1шт.

m

49027

SLOTTED NUT

1шт.

n

492-11050

LOCK WASHER,1/2"

1шт.

q

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

1шт.

r

523291

BOLT,Hex Serr Flg, 1/4" - 20 x 1/2"

1шт.

w

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

x

1336594C1

WASHER

1шт.

y

86632554

SLOTTED NUT,3/4"-16, G5

1шт.
