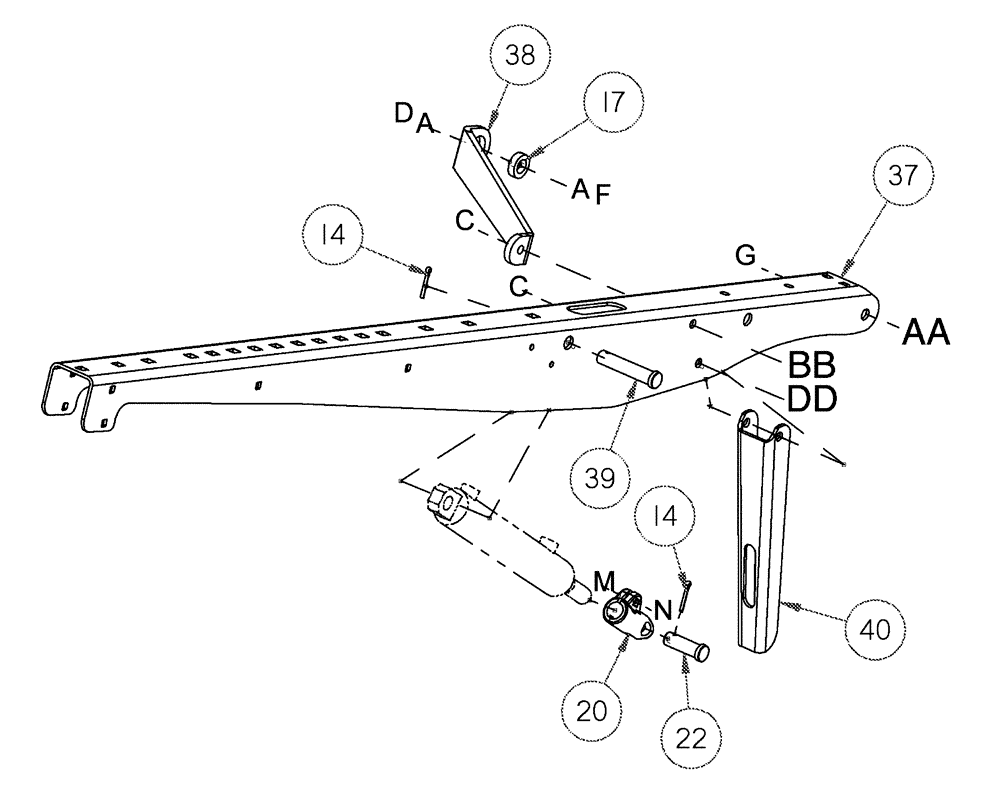

Запчасти Case IH 2142 (09-21) - REEL ARMS AND COMPONENTS, 2142

14

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

6шт.

Single Reel Header

1шт.

14

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

7шт.

17

585556R1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

Diagonal Brace

2шт.

20

87560852

CLEVIS

Outer Reel Arm Cylinder Mounts

2шт.

22

87566767

PIN,18.95mm OD x 64.99mm L

2шт.

37

87752694

ARM ASSY.

Reel, Left And Right Hand With 3 Panel Decal

2шт.

38

87752670

BRACE

2шт.

39

87566768

PIN,18.95mm OD x 100.99mm L

2шт.

40

87752669

SUPPORT

2шт.

a

1336594C1

WASHER

1шт.

c

87323841

FLANGE NUT

1шт.

d

231-42412

NUT,3/4"-10, GB

1шт.

f

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

1шт.

g

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

m

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

1шт.

n

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

aa

87714763

BOLT

1шт.

bb

433-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 5

1шт.

dd

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

ee

87566778

SCREW,3/8" - 16 x 5/8", Gr 5

1шт.
