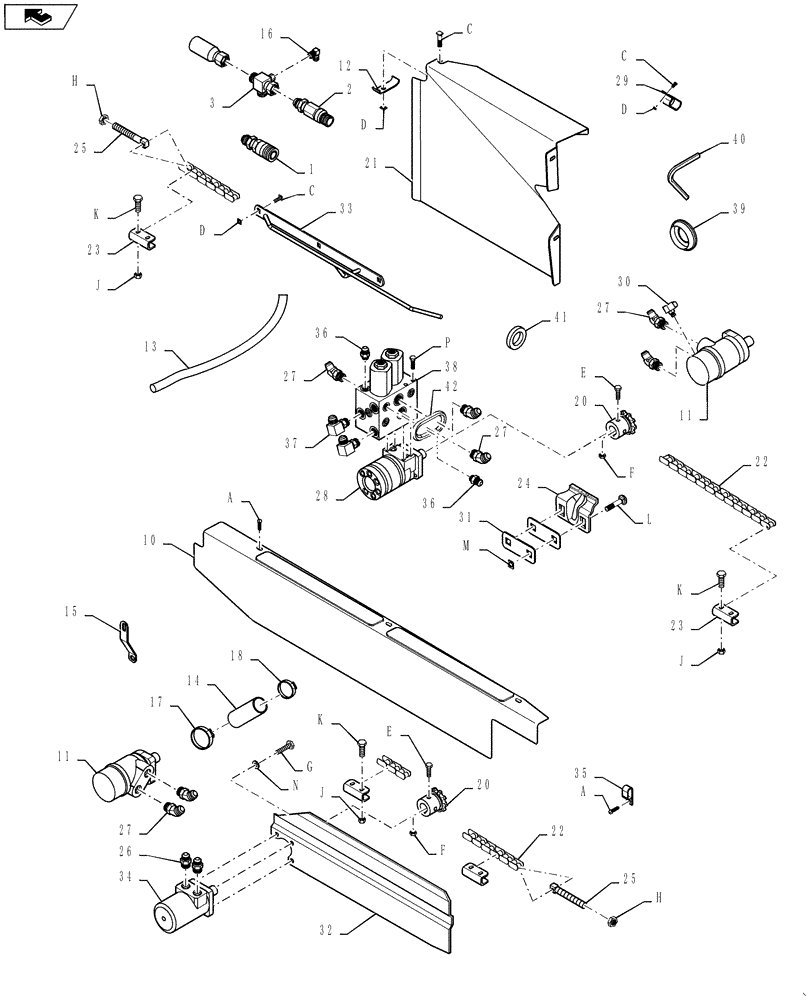

Запчасти Case IH 2142 (09-17) - DRAPER DRIVE HYDRAULIC DECK SHIFT HEADERS (STANDARD COMPONENTS)

1

87585265

COUPLING

Pressure, Serial Range: -Y7ZN00300

1шт.

1

87472038

FITTING

Pressure, Start Serial: Y7ZN00301

1шт.

2

87585264

COUPLING

Return, Serial Range: -Y7ZN00300

1шт.

2

87605745

QUICK MALE COUPLING

Return, Start Serial: Y7ZN00301

1шт.

3

87566756

TEE,3/4" JIC x 3/4" JIC x 3/4" JIC x 3/8" JIC

FITTING

1шт.

See Figure 09-12

1шт.

10

87561127

HOLDER

Hose, Right Center

1шт.

2152 Only

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Headers

1шт.

10

87561125

HOLDER

Hose, Left Center

1шт.

2152 Only

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Headers

1шт.

11

REF

INSTRUCTION

MOTOR, Draper Drive

2шт.

See Figure 09-16

1шт.

12

347484A1

BRACKET

Hose

2шт.

2142 And 2152 Only

1шт.

13

87561550

SLEEVE

1шт.

2152 Only

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Headers

1шт.

14

87561552

SLEEVE

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Headers

1шт.

15

87561121

HOLDER

Hose

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Headers

1шт.

16

241074

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

Single Knife Header

1шт.

17

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Headers

1шт.

18

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

25.0, 30.0, 35.0, And 40.0 Foot Headers

1шт.

20

87566796

GEAR

Hydraulic Deck Shift, 10 Teeth

2шт.

21

87712717

GUIDE

Chain, Deck Shift, Ended Early 2008 Production, Serial Range: -MACDON183406

1шт.

21

87753066

GUIDE

Chain, Deck Shift, Began Early 2008 Production, Start Serial: MACDON183407

1шт.

22

87566337

CHAIN (AG)

Roller, Deck Shift

2шт.

23

87560296

STOP

Chain, Deck Shift

4шт.

24

87561105

GUIDE

Chain, Deck Shift

2шт.

25

87560299

STUD

Deck Shift Chain Adjustment

2шт.

26

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

27

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

5шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

87561198

HYDRAULIC MOTOR

Left Hand Deck Shift

1шт.

87585424

SEAL KIT

Deck Shift Motor (Eaton), Serial Range: -Y7ZN00300

1шт.

700709231

SEAL KIT

Deck Shift Motor (Parker), Start Serial: Y7ZN00301

1шт.

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

Manifold Ports

2шт.

29

338322A1

CLIP

Hose

3шт.

30

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

31

87561536

SHIM

Chain Guide

4шт.

32

87560925

COVER

Deck Shift Chain, Right

1шт.

33

87561102

GUIDE

Deck Shift Hose, Left

1шт.

34

87561199

HYDRAULIC MOTOR

Right Hand Deck Shift

1шт.

87585424

SEAL KIT

Deck Shift Motor

1шт.

35

87566344

CLAMP

1шт.

36

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

3шт.

38

87561641

VALVE

2 Position, Solenoid Operated 4-Way

1шт.

39

87566758

GROMMET

1шт.

40

87752650

MOLDING

1шт.

41

87472034

GROMMET

1.75" ID

2шт.

42

87383364

MOLDING

1шт.

a

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

b

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

c

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

1шт.

d

86521609

FLANGE NUT,Flg, 3/8"-16

1шт.

e

80435

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

1шт.

f

86509499

JAM NUT,3/8"-16, G2

1шт.

g

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

h

86632556

JAM NUT,Jam, 5/8"-11, G5

1шт.

j

523282

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

k

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

l

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

m

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

n

492-11038

LOCK WASHER,3/8"

1шт.

p

87566359

BOLT

1шт.
