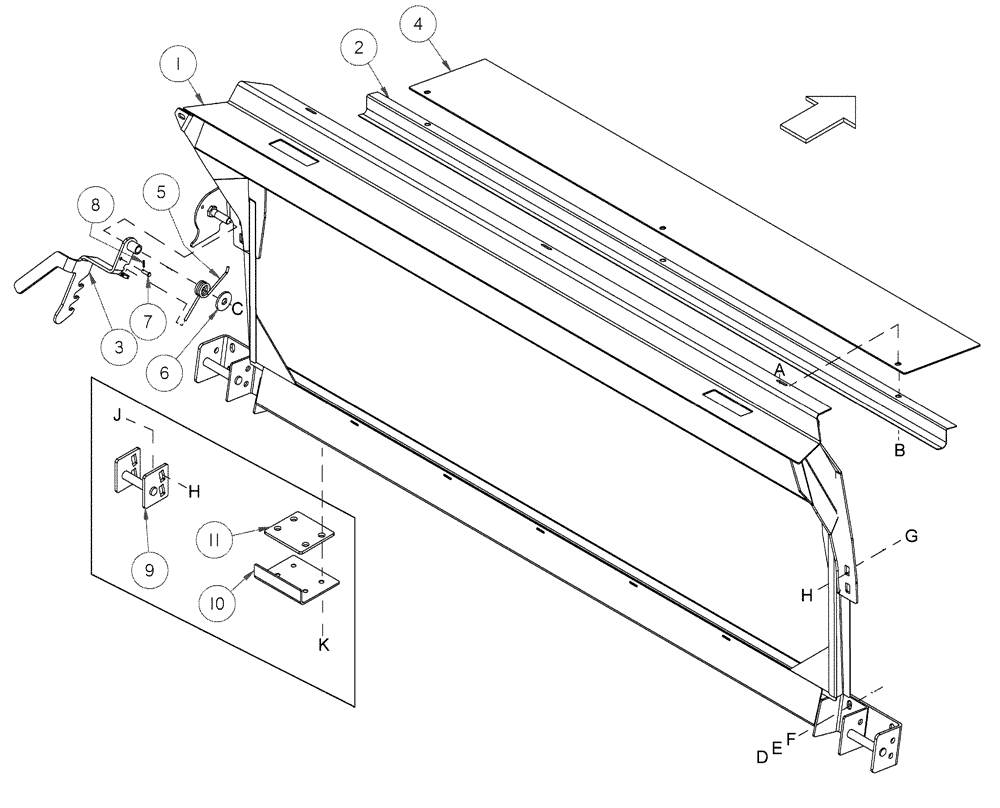

Запчасти Case IH 2142 (09-69) - CASE 10, 20, AND 88 SERIES ADAPTER COMPLETION

1

87597431

FRAME

Transition

1шт.

2

87597416

COVER ASSY

Hose

1шт.

3

87699659

LATCH ASSY.

Arm

1шт.

4

87597417

COVER ASSY

Adapter/Header Opening

1шт.

5

87597516

SPRING

Tension

1шт.

6

87597545

WASHER,15.88mm ID x 46mm OD x 4.5mm Thk

1шт.

7

86639105

CLEVIS PIN,M6 x 20

1шт.

8

86624096

COTTER PIN,Int, 3/16 x .080"

1шт.

NSS

NOT SOLD SEPARAT

KIT, Shim Header Leveling for 8010 Non-Lateral Tilt Combines, Inc. 9 - 11, H, J, K

1шт.

Available Through Whole Goods Only, Order B5079

1шт.

9

87627797

PIN ASSY.

Weldment

1шт.

10

87627798

SHIM

Plate

1шт.

11

87627799

SHIM

6.4 mm

1шт.

11

87627800

SHIM

3 mm

1шт.

a

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

b

87034814

FLANGE NUT,Flg, 5/16"-18

1шт.

c

86521611

FLANGE NUT,Flg, 5/8"-11

1шт.

d

363092A1

BOLT

1шт.

e

492-11050

LOCK WASHER,1/2"

1шт.

f

495-11053

WASHER,1/2", SAE

1шт.

g

87868

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

1шт.

h

87323841

FLANGE NUT

1шт.

j

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

k

61-45016

SCREW,1/2" - 13 x 1"

1шт.
