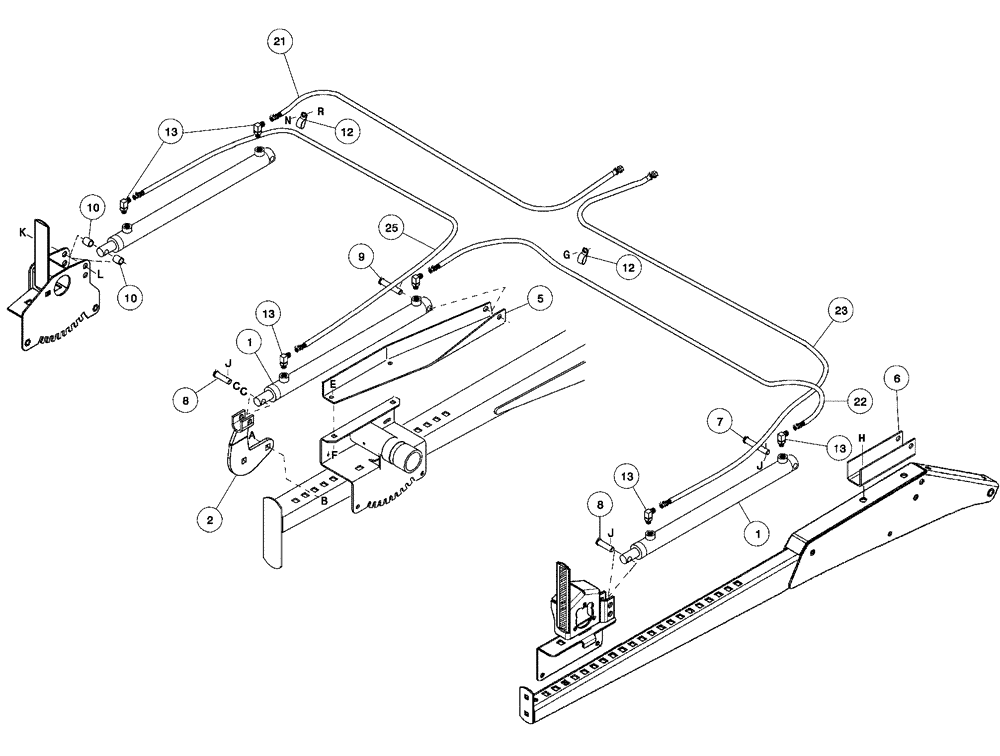

Запчасти Case IH 2062 (09-06) - HYDRAULIC FORE-AFT REEL POSITIONER (03) - CHASSIS/MOUNTED EQUIPMENT

1

345942A1

CYLINDER,Double Acting, 22.23mm Rod, 550mm Stroke

Double Acting, Reel Fore-Aft

3шт.

345950A1

SEAL KIT

1шт.

2

87414756

SUPPORT

Reel Arm Drive

1шт.

5

345951A1

CHANNEL

Reel Arm Drive

1шт.

6

429278A1

SUPPORT

Cylinder Rear Mount, Tail Arms

2шт.

7

1344998C1

CLEVIS PIN

5/8 x 2-1/2

2шт.

8

427-10225

CLEVIS PIN,5/8" x 1 1/4"

5/8 x 1-13/16

2шт.

9

427-10300

CLEVIS PIN,5/8" x 4"

1шт.

10

346202A1

SPACER

Tube

2шт.

12

344825A1

SUPPORT

Hose

23шт.

30.0 Foot Header

1шт.

12

344825A1

SUPPORT

Hose

26шт.

36.0 Foot Header

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

6шт.

21

87414736

HOSE

Hydraulic, To Right Cylinder Rear Port

1шт.

30.0 Foot Header

1шт.

21

450929A1

HOSE

Hydraulic, To Right Cylinder Rear Port

1шт.

36.0 Foot Header

1шт.

22

87408934

HOSE

Hydraulic, To Left Cylinder Rear Port

1шт.

30.0 Foot Header

1шт.

22

450929A1

HOSE

Hydraulic, To Left Cylinder Rear Port

1шт.

36.0 Foot Header

1шт.

23

87408936

HOSE

Hydraulic, To Left Cylinder Front Port

1шт.

30.0 Foot Header

1шт.

23

87408937

HOSE

Hydraulic, To Left Cylinder Front Port

1шт.

36.0 Foot Header

1шт.

25

87414737

HOSE

Hydraulic, Center Cylinder Front Port To Right Cylinder Front Port

1шт.

30.0 Foot Header

1шт.

25

87422348

HOSE ASSY.

Hydraulic, Center Cylinder Front Port To Right Cylinder Front Port

1шт.

36.0 Foot Header

1шт.

a

434-1024

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

1шт.

b

231-53410

FLANGE NUT,Flg, 5/8"-11

1шт.

c

495-11066

WASHER,5/8", SAE

1шт.

e

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

f

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

g

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

h

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

1шт.

j

32-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

k

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

l

129-390

JAM NUT,Jam, 5/8"-11, G5

1шт.

n

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

r

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.
