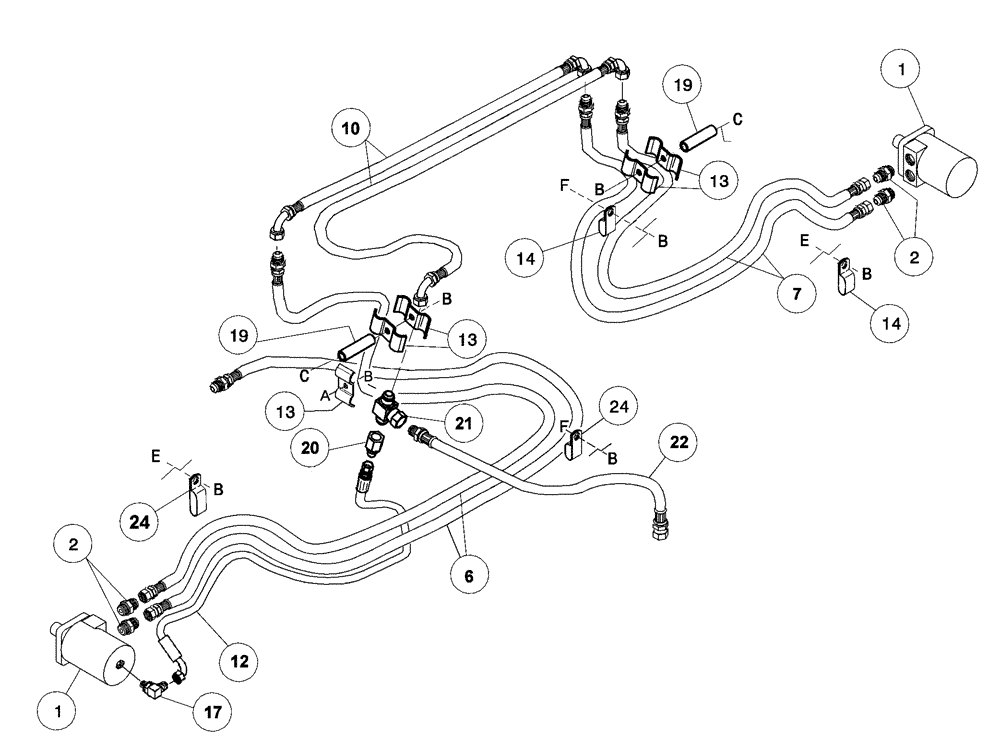

Запчасти Case IH 2062 (09-04) - HYDRAULIC CIRCUIT - DRAPER DRIVE (03) - CHASSIS/MOUNTED EQUIPMENT

1

392739A1

HYDRAULIC MOTOR

Draper Drive, Inc. 126-124

2шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

429255A1

SEAL KIT

Replaces 338359A1

2шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

6

87408932

HOSE

2шт.

30.0 Foot Header

1шт.

6

87408933

HOSE

Left Side

2шт.

36.0 Foot Header

1шт.

7

87408932

HOSE

2шт.

30.0 Foot Header

1шт.

7

87408927

HOSE

Right Side

2шт.

36.0 Foot Header

1шт.

10

87408928

HOSE

Across Opening

2шт.

12

87408930

HOSE

Case Drain

1шт.

30.0 Foot Header

1шт.

12

87408929

HOSE

Case Drain

1шт.

36.0 Foot Header

1шт.

13

345999A1

SUPPORT

5шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

Right-Hand

5шт.

30.0 Foot Header

1шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

Right-Hand

6шт.

36.0 Foot Header

1шт.

17

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

87408990

SPACER

2шт.

20

392908A1

FITTING

5/8 x 3/8

1шт.

21

87407793

FITTING

1шт.

22

87408925

HOSE

1шт.

24

338322A1

CLIP

Left-Hand

5шт.

30.0 Foot Header

1шт.

24

338322A1

CLIP

Left-Hand

6шт.

36.0 Foot Header

1шт.

a

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

b

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

c

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

e

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

f

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.
