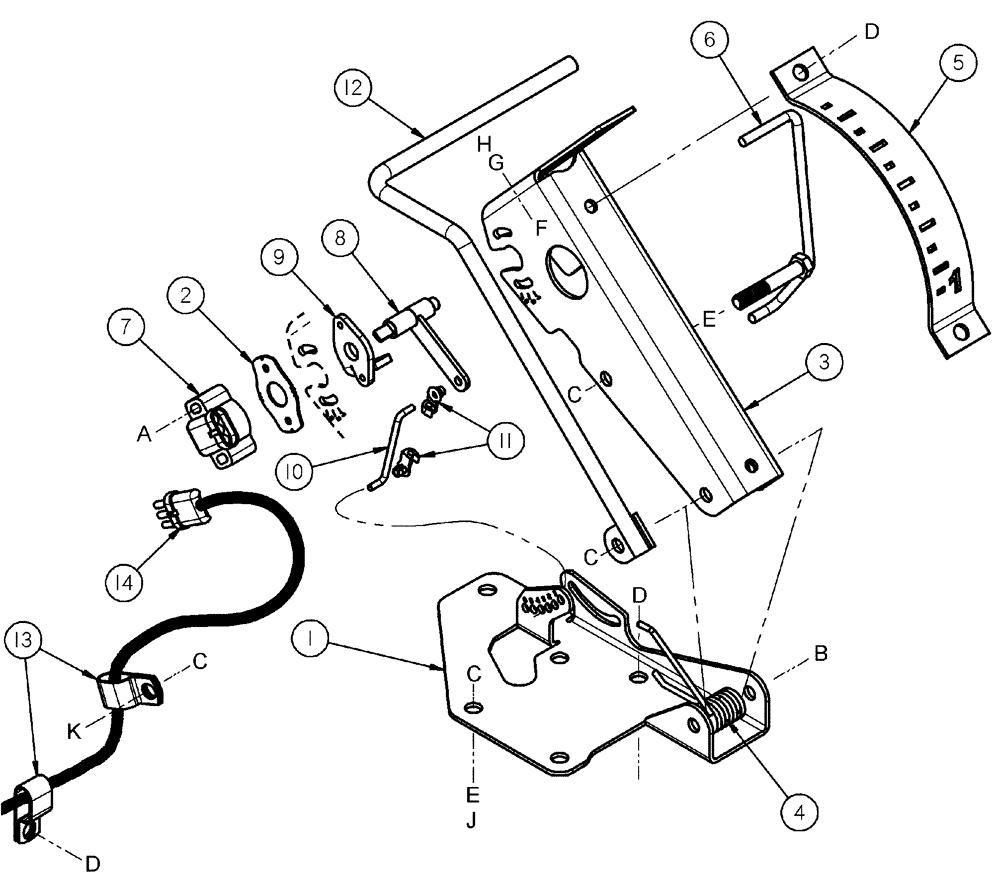

Запчасти Case IH 2062 (09-50) - FLOAT OPTIMIZER ATTACHMENT - CASE 2100/2300 SERIES AND AFX COMBINES (03) - CHASSIS/MOUNTED EQUIPMENT

REF

INSTRUCTION

KIT, FLOAT OPTIMIZER, Case 2100/2300 Series and AFX Combines

1шт.

Order 87403521 From Machinery

1шт.

1

87422091

BRACKET

Lower Mounting Bracket

1шт.

2

87422110

SUPPORT

Sensor Mounting

1шт.

3

87422090

SUPPORTING ARM

Upper

1шт.

4

87422072

SPRING

Torsion

1шт.

5

87408752

INDICATOR

Gauge, Header Float

1шт.

6

87422074

MOUNTING PARTS

Rod, Header Float

1шт.

7

87408954

POTENTIOMETER

Sensor

1шт.

8

87422093

POWER ARM

Pivot

1шт.

9

87422078

PLATE, SUPPORT

Pivot Arm

1шт.

10

87422075

ROD

Linkage

1шт.

11

87408732

CLIP

Rod End

2шт.

12

87422077

ARM/LIFTING DEVICE

Sensing

1шт.

13

344825A1

SUPPORT

Harness

5шт.

14

87532226

WIRE HARNESS

Float Optimizer

1шт.

Case 2100/2300 Series Combines

1шт.

14

87408780

HARNESS

Float Optimizer

1шт.

Case AFX Combines

1шт.

a

260-14524

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

1шт.

b

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

c

232-5316

FLANGE NUT,Flg, 3/8"-16

1шт.

d

281-54910

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 5/8"

1шт.

e

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

f

1336677C1

BOLT

1шт.

g

495-11053

WASHER,1/2", SAE

1шт.

h

231-5146

FLANGE NUT,3/8"-16

1шт.

j

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

k

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.
