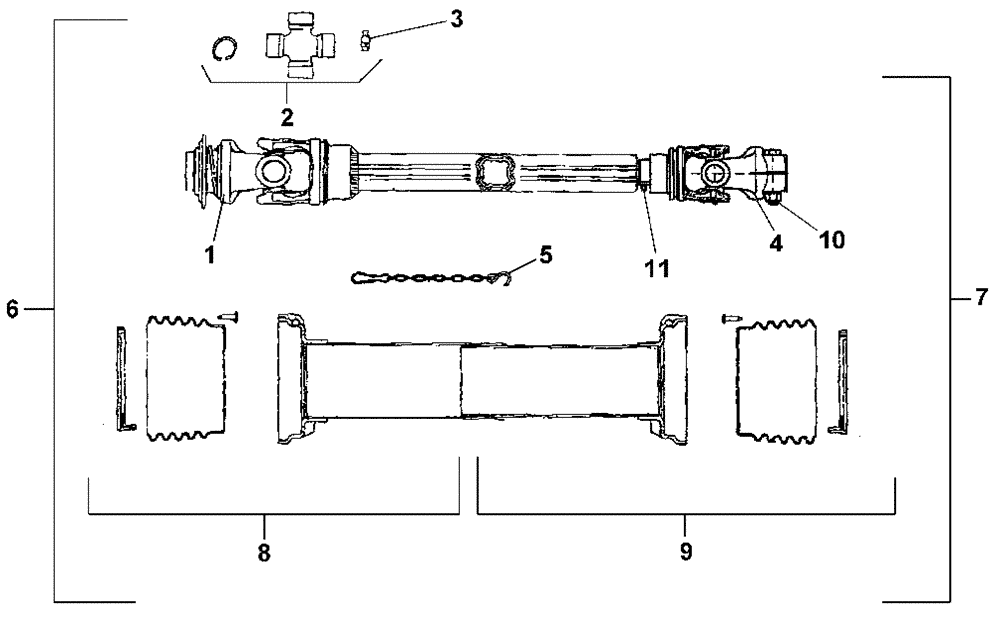

Запчасти Case IH 2062 (09-49) - COMBINE ADAPTER DRIVELINE (03) - CHASSIS/MOUNTED EQUIPMENT

87408324

DRIVE ASSY.

6T Driveline

1шт.

Case AFX, New Holland TR/TX, New Holland CR/CX Combines

1шт.

87408741

DRIVE ASSY.

Hex Bore

1шт.

Case 2100/2300 Series Combines

1шт.

1

87407653

YOKE

6T Driveline

1шт.

Case AFX, New Holland TR/TX, New Holland CR/CX Combines

1шт.

1

87407668

YOKE

Hex Bore Driveline

1шт.

Case 2100/2300 Series Combines

1шт.

2

87407654

REPAIR KIT

U-Joint, Inc. C-Clips and Grease Fitting

2шт.

3

87407655

FITTING

Grease, M8

1шт.

4

87407658

YOKE

1-3/8 Bore

2шт.

5

87407561

CHAIN

Safety

1шт.

6

87407661

DRIVE ASSY.

6T Driveline, Outer, Inc. Shield

1шт.

Case AFX, New Holland TR/TX, New Holland CR/CX Combines

1шт.

6

87407666

DRIVE ASSY.

Hex Bore Driveline, Outer, Inc. Shield

1шт.

Case 2100/2300 Series Combines

1шт.

7

87407663

DRIVE ASSY.

Inner, Inc. Shield

1шт.

8

87407664

SHIELD

Outer, Hex Bore Driveline

1шт.

8

87431903

SHIELD

Outer, 6T Driveline

1шт.

9

87407665

SHIELD

Inner

1шт.

10

350460

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

1шт.

829-11412

NUT,M12 x 1.25, Cl 10

1шт.

892-11012

LOCK WASHER,M12

1шт.

11

87407657

REPAIR KIT

Lubrication

1шт.
